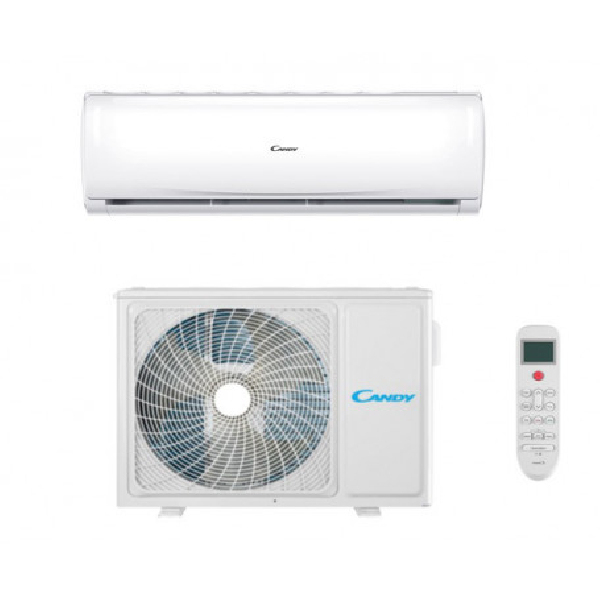

CY12FAOUT + CY12FAIN

Model CY12FAOUT + CY12FAINPart no. KITARIA12000

75 specifications

Overview

75 specifications in 5 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Heating
Split system type	Mono split
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.6
Cooling energy efficiency (EER, W/W)	4
Heating energy efficiency (COP, W/W)	3.81
Cooling capacity in watts (nominal)	3500 W
Cooling capacity in watts (min)	1000 W
Cooling capacity in watts (max)	4000 W
Heating capacity in watts (nominal) (Average heating season)	4200 W
Heating capacity in watts (min)	1000 W
Heating capacity in watts (max)	5200 W
Cooling capacity (nominal)	11940 BTU/h
Cooling capacity (min)	3410 BTU/h
Cooling capacity (max)	13650 BTU/h
Heating capacity (nominal)	14330 BTU/h
Heating capacity (min)	3410 BTU/h
Heating capacity (max)	17740 BTU/h
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	780 g
Auto fan	Yes
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-20 - 43 °C
Operating temperature (heating) (T-T)	-20 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A++
Energy efficiency class (heating) (Warmer heating season)	A+++
Annual energy consumption (cooling)	144 kWh
Annual energy consumption (heating) (Warmer heating season)	768 kWh
Annual energy consumption (heating) (Average heating season)	854 kWh
Power consumption (cooling) (min)	300 W
Power consumption (cooling) (max)	1500 W
Power consumption (heating) (min)	500 W
Power consumption (heating) (max)	1600 W
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Design load (cooling)	3.5 kW
Design load (heating) (Average heating season)	2.8 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	20 dB
Indoor unit noise level (high speed)	39 dB
Indoor unit sound power level	55 dB
Cooling airflow (indoor unit)	650 m³/h
Indoor units quantity	1
Indoor unit width	87 cm
Indoor unit depth	19.6 cm
Indoor unit height	30.1 cm
Indoor unit weight	9.5 kg
Indoor unit package width	95.2 cm
Indoor unit package depth	28.3 cm
Indoor unit package height	38.9 cm
Indoor unit package weight	12 kg

Specification	Value
Outdoor unit noise level	48 dB
Outdoor unit sound power level	61 dB
Cooling airflow (outdoor unit)	2000 m³/h
Outdoor units quantity	1
Outdoor unit width	80 cm
Outdoor unit depth	27.5 cm
Outdoor unit height	55.3 cm
Outdoor unit weight	30 kg
Outdoor unit package width	90.8 cm
Outdoor unit package depth	40.5 cm
Outdoor unit package height	62.5 cm
Outdoor unit package weight	32.9 kg

Specification	Value
Manual	Yes
Remote control included	Yes
