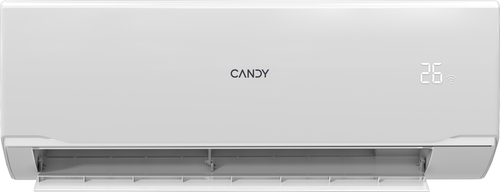

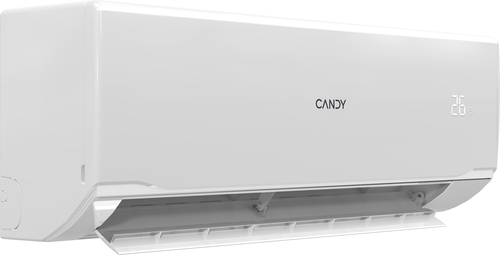

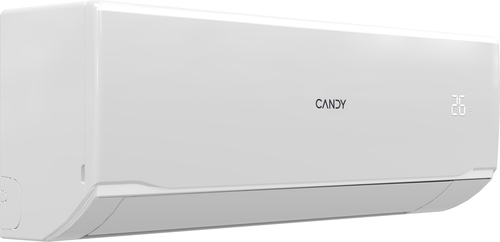

CY-24RAIN-A Air conditioner indoor unit White

Model CY-24RAIN-APart no. AABQG6E02EAN 6932063865941

78 specifications

Overview

78 specifications in 7 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Inverter technology	Yes
Split system type	Mono split
Ionizer	No
Comfort sleeping mode	Yes
Turbo mode	Yes
Wind deflector adjustment	Vertical
Seasonal efficiency rating (cooling) (SEER)	6.7
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	5.1
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	6000 W
Cooling capacity in watts (min)	1300 W
Cooling capacity in watts (max)	7400 W
Heating capacity in watts (nominal) (Average heating season)	6300 W
Heating capacity in watts (nominal) (Colder heating season)	6300 W
Heating capacity in watts (min)	1400 W
Heating capacity in watts (max)	7500 W
Cooling capacity (nominal)	20475 BTU/h
Cooling capacity (min)	4430 BTU/h
Cooling capacity (max)	25250 BTU/h
Heating capacity (nominal)	21500 BTU/h
Heating capacity (min)	4770 BTU/h
Heating capacity (max)	25590 BTU/h
Built-in display	Yes
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	900 g
Filter type	Nylon
Anti-bacterial filter	Yes
Deodorizing filter	No
Dehumidifying capacity	2.8 l/h
Remotely operated	Yes
Auto diagnostic	Yes
Auto-restart	Yes
Automatic hot/cold switching	No
Quick connect fitting	Yes
Removable front panel	Yes

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A+++
Annual energy consumption (cooling)	324 kWh
Annual energy consumption (heating) (Warmer heating season)	1153 kWh
Annual energy consumption (heating) (Average heating season)	1610 kWh
AC input voltage	220-240 V
AC input frequency	50-60 Hz
Design load (cooling)	6.2 kW
Design load (heating) (Average heating season)	4.6 kW
Design load (heating) (Warmer heating season)	4.2 kW
Energy efficiency scale	A+++ to D
Energy saving mode	Yes
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes
Bluetooth	No

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	29 dB
Indoor unit noise level (high speed)	47 dB
Indoor unit sound power level	64 dB
Cooling airflow (indoor unit)	1100 m³/h
Indoor units quantity	1
Indoor unit width	97.5 cm
Indoor unit depth	22.2 cm
Indoor unit height	31.8 cm
Indoor unit weight	11.6 kg
Indoor unit package width	105 cm
Indoor unit package depth	39.7 cm
Indoor unit package height	30.1 cm

Specification	Value
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
Warranty period	2 year(s)
