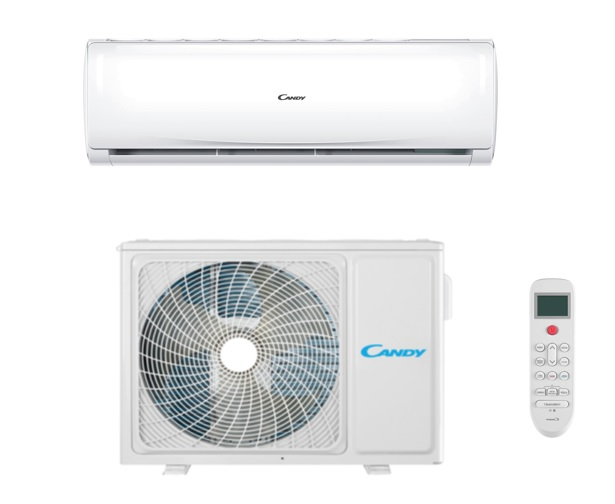

CY-18TAIN + CY-18TAOUT

Model CY-18TAIN + CY-18TAOUTPart no. KIT-PURA18000

73 specifications

Overview

73 specifications in 5 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Heating
Split system type	Mono split
Seasonal efficiency rating (cooling) (SEER)	6.3
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	3.07
Heating energy efficiency (COP, W/W)	3.4
Cooling capacity in watts (nominal)	4600 W
Cooling capacity in watts (min)	1300 W
Cooling capacity in watts (max)	5300 W
Heating capacity in watts (nominal) (Average heating season)	4600 W
Heating capacity in watts (min)	1300 W
Heating capacity in watts (max)	5300 W
Cooling capacity (nominal)	15690 BTU/h
Cooling capacity (min)	4430 BTU/h
Cooling capacity (max)	18080 BTU/h
Heating capacity (nominal)	15690 BTU/h
Heating capacity (min)	4430 BTU/h
Heating capacity (max)	18080 BTU/h
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	680 g
Hose length (max)	20 m
Gas hose diameter	1.27 cm
Liquid hose diameter	6.35 mm
Air filter	Yes
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-10 - 43 °C
Operating temperature (heating) (T-T)	-15 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A++
Annual energy consumption (cooling)	256 kWh
Annual energy consumption (heating) (Warmer heating season)	913 kWh
Annual energy consumption (heating) (Average heating season)	1155 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	1 A
Design load (cooling)	4.6 kW
Design load (heating) (Average heating season)	3.3 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	35 dB
Indoor unit noise level (high speed)	44 dB
Indoor unit sound power level	59 dB
Cooling airflow (indoor unit)	700 m³/h
Heating airflow (indoor unit)	700 m³/h
Indoor units quantity	1
Indoor unit width	86.5 cm
Indoor unit depth	20 cm
Indoor unit height	29 cm
Indoor unit weight	8.7 kg
Indoor unit package width	95.4 cm
Indoor unit package depth	27.9 cm
Indoor unit package height	35.5 cm
Indoor unit package weight	10.9 kg

Specification	Value
Outdoor unit noise level	54 dB
Outdoor unit sound power level	65 dB
Cooling airflow (outdoor unit)	2400 m³/h
Heating airflow (outdoor unit)	2400 m³/h
Outdoor units quantity	1
Outdoor unit width	80 cm
Outdoor unit depth	27.5 cm
Outdoor unit height	55.3 cm
Outdoor unit weight	29.2 kg
Outdoor unit package width	90.8 cm
Outdoor unit package depth	40.5 cm
Outdoor unit package height	62.5 cm
Outdoor unit package weight	32.1 kg

Specification	Value
Manual	Yes
Remote control included	Yes
