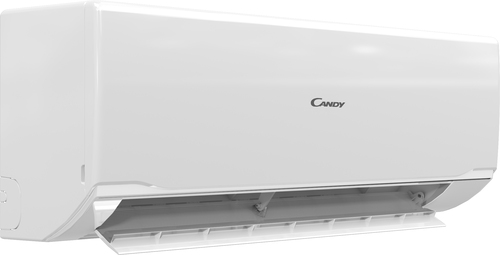

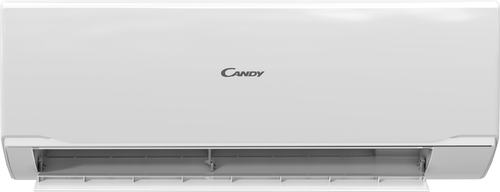

CY-12RAIN-20+CY-12RAOUT-20 Split system White
Model CY-12RAIN-20+CY-12RAOUT-20Part no. CY-12RAEAN 6932063845943
55 specifications
- Energy classA++
- TypeSplit system
- ColourWhite
- Indoor unit typeWall-mountable
- Outdoor unit noise level63 dB
Overview
- Energy class
- A++
- Type
- Split system
- Colour
- White
- Indoor unit type
- Wall-mountable
- Outdoor unit noise level
- 63 dB
- Brand
- Candy
- Category
- Split-System Air Conditioner
- Model
- CY-12RAIN-20+CY-12RAOUT-20
- Part number
- CY-12RA
- EAN / UPC
- 6932063845943
- Also known as
- Candy CY-12RAIN-20+CY-12RAOUT-20 Split system White
Specifications
55 specifications in 4 groups
Features
| Specification | Value |
|---|---|
| Type | Split system |
| Multi-split | No |
| Product colour | White |
| Air conditioner functions | Cooling, Heating |
| Seasonal efficiency rating (cooling) (SEER) | 6.1 |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) | 2.81 |
| Cooling capacity in watts (nominal) | 3200 W |
| Cooling capacity in watts (min) | 800 W |
| Cooling capacity in watts (max) | 3500 W |
| Heating capacity in watts (nominal) (Colder heating season) | 3400 W |
| Heating capacity in watts (min) | 800 W |
| Heating capacity in watts (max) | 4000 W |
| Cooling capacity (nominal) | 10920 BTU/h |
| Cooling capacity (min) | 2730 BTU/h |
| Cooling capacity (max) | 11940 BTU/h |
| Heating capacity (nominal) | 11600 BTU/h |
| Heating capacity (min) | 2730 BTU/h |
| Heating capacity (max) | 12280 BTU/h |
| Refrigerating medium | R32 |
| Refrigerating medium weight | 550 g |
| Compressor type | Twin Rotary |
| Hose length (min) | 10 m |
| Hose length (max) | 20 m |
| Operating temperature (cooling) (T-T) | -10 - 43 °C |
| Operating temperature (heating) (T-T) | -15 - 24 °C |
Power
| Specification | Value |
|---|---|
| Energy efficiency class (cooling) | A++ |
| Energy efficiency class (heating) (Average heating season) | A++ |
| Energy efficiency class (heating) (Warmer heating season) | A+ |
| Annual energy consumption (cooling) | 184 kWh |
| Annual energy consumption (heating) (Average heating season) | 910 kWh |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
| Current | 1 A |
| Energy efficiency class (cooling) (legacy scale) | A++ |
Indoor unit
| Specification | Value |
|---|---|
| Indoor unit type | Wall-mountable |
| Indoor unit noise level (high speed) | 57 dB |
| Cooling airflow (indoor unit) | 520 m³/h |
| Indoor units quantity | 1 |
| Indoor unit width | 70.5 cm |
| Indoor unit depth | 19.3 cm |
| Indoor unit height | 26.5 cm |
| Indoor unit weight | 7.8 kg |
| Indoor unit package width | 77.2 cm |
| Indoor unit package depth | 26.3 cm |
| Indoor unit package height | 32.5 cm |
Outdoor unit
| Specification | Value |
|---|---|
| Outdoor unit noise level | 63 dB |
| Cooling airflow (outdoor unit) | 2100 m³/h |
| Outdoor units quantity | 1 |
| Outdoor unit width | 70 cm |
| Outdoor unit depth | 24.5 cm |
| Outdoor unit height | 54.4 cm |
| Outdoor unit weight | 22.9 kg |
| Outdoor unit package width | 81.9 cm |
| Outdoor unit package depth | 32 cm |
| Outdoor unit package height | 58.5 cm |
