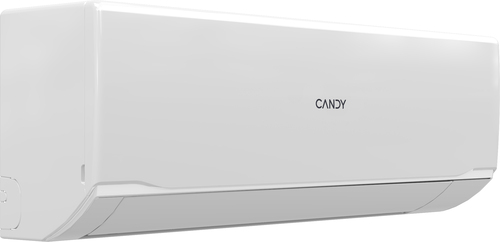

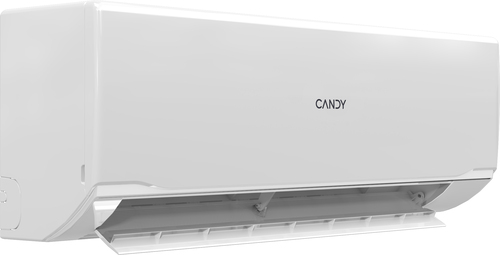

CY-09RAIN-A Air conditioner indoor unit White

Model CY-09RAIN-APart no. AAD0B1E00EAN 6932063865828

71 specifications

Overview

71 specifications in 7 groups

Specification	Value
Type	Air conditioner indoor unit
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Dehumidifying, Fan, Heating
Inverter technology	Yes
Split system type	Mono split
Ionizer	No
Comfort sleeping mode	Yes
Turbo mode	Yes
Wind deflector adjustment	Vertical
Seasonal efficiency rating (cooling) (SEER)	6.5
Cooling energy efficiency (EER, W/W)	3.23
Heating energy efficiency (COP, W/W)	3.71
Cooling capacity in watts (nominal)	2700 W
Cooling capacity in watts (min)	700 W
Cooling capacity in watts (max)	3400 W
Heating capacity in watts (nominal) (Average heating season)	2900 W
Heating capacity in watts (nominal) (Colder heating season)	2900 W
Heating capacity in watts (min)	700 W
Heating capacity in watts (max)	3600 W
Cooling capacity (nominal)	9215 BTU/h
Cooling capacity (min)	2390 BTU/h
Cooling capacity (max)	11600 BTU/h
Heating capacity (nominal)	9895 BTU/h
Heating capacity (min)	2390 BTU/h
Heating capacity (max)	12285 BTU/h
Built-in display	Yes
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	510 g
Anti-bacterial filter	Yes
Deodorizing filter	No
Dehumidifying capacity	1.2 l/h
Remotely operated	Yes
Auto diagnostic	Yes
Auto-restart	Yes
Automatic hot/cold switching	No
Quick connect fitting	Yes
Removable front panel	Yes

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A+++
Annual energy consumption (cooling)	145 kWh
Annual energy consumption (heating) (Warmer heating season)	604 kWh
Annual energy consumption (heating) (Average heating season)	910 kWh
AC input voltage	220-240 V
AC input frequency	50-60 Hz
Energy efficiency scale	A+++ to D
Energy saving mode	Yes
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes
Bluetooth	No

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	20 dB
Indoor unit noise level (high speed)	38 dB
Indoor unit sound power level	57 dB
Cooling airflow (indoor unit)	550 m³/h
Indoor units quantity	1
Indoor unit width	80.5 cm
Indoor unit depth	29.2 cm
Indoor unit height	20 cm
Indoor unit weight	8.8 kg
Indoor unit package width	87.6 cm
Indoor unit package depth	36.5 cm
Indoor unit package height	27.2 cm

Specification	Value
Remote control included	Yes

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4
Warranty period	2 year(s)
