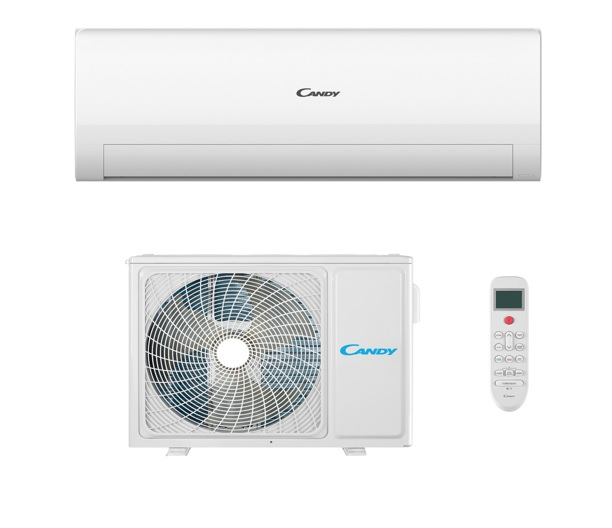

CY-09FAIN + CY-09FAOUT

Model CY-09FAIN + CY-09FAOUTPart no. KIT-ARIA9000

73 specifications

Overview

73 specifications in 5 groups

Specification	Value
Type	Split system
Multi-split	No
Product colour	White
Air conditioner functions	Cooling, Heating
Split system type	Mono split
Seasonal efficiency rating (cooling) (SEER)	8.5
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4.6
Cooling energy efficiency (EER, W/W)	4
Heating energy efficiency (COP, W/W)	4
Cooling capacity in watts (nominal)	2600 W
Cooling capacity in watts (min)	800 W
Cooling capacity in watts (max)	3200 W
Heating capacity in watts (nominal) (Average heating season)	3200 W
Heating capacity in watts (min)	800 W
Heating capacity in watts (max)	4200 W
Cooling capacity (nominal)	8870 BTU/h
Cooling capacity (min)	2730 BTU/h
Cooling capacity (max)	10920 BTU/h
Heating capacity (nominal)	10920 BTU/h
Heating capacity (min)	2730 BTU/h
Heating capacity (max)	14330 BTU/h
Timer	Yes
Refrigerating medium	R32
Refrigerating medium weight	630 g
Hose length (max)	20 m
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Remotely operated	Yes
Operating temperature (cooling) (T-T)	-20 - 43 °C
Operating temperature (heating) (T-T)	-20 - 24 °C

Specification	Value
Energy efficiency class (heating) (Average heating season)	A++
Energy efficiency class (heating) (Warmer heating season)	A+++
Annual energy consumption (cooling)	107 kWh
Annual energy consumption (heating) (Warmer heating season)	631 kWh
Annual energy consumption (heating) (Average heating season)	731 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Current	1 A
Design load (cooling)	2.6 kW
Design load (heating) (Average heating season)	2.4 kW
Energy efficiency scale	A+++ to D
Energy efficiency class (cooling) (legacy scale)	A+++

Specification	Value
Indoor unit type	Wall-mountable
Indoor unit noise level (low speed)	25 dB
Indoor unit noise level (high speed)	38 dB
Indoor unit sound power level	53 dB
Cooling airflow (indoor unit)	600 m³/h
Heating airflow (indoor unit)	600 m³/h
Indoor units quantity	1
Indoor unit width	87 cm
Indoor unit depth	19.6 cm
Indoor unit height	30.1 cm
Indoor unit weight	9.5 kg
Indoor unit package width	95.2 cm
Indoor unit package depth	28.3 cm
Indoor unit package height	38.9 cm
Indoor unit package weight	12 kg

Specification	Value
Outdoor unit noise level	47 dB
Outdoor unit sound power level	59 dB
Cooling airflow (outdoor unit)	1900 m³/h
Heating airflow (outdoor unit)	1900 m³/h
Outdoor units quantity	1
Outdoor unit width	80 cm
Outdoor unit depth	27.5 cm
Outdoor unit height	55.3 cm
Outdoor unit weight	27.6 kg
Outdoor unit package width	90.8 cm
Outdoor unit package depth	40.5 cm
Outdoor unit package height	62.5 cm
Outdoor unit package weight	30.4 kg

Specification	Value
Manual	Yes
Remote control included	Yes
