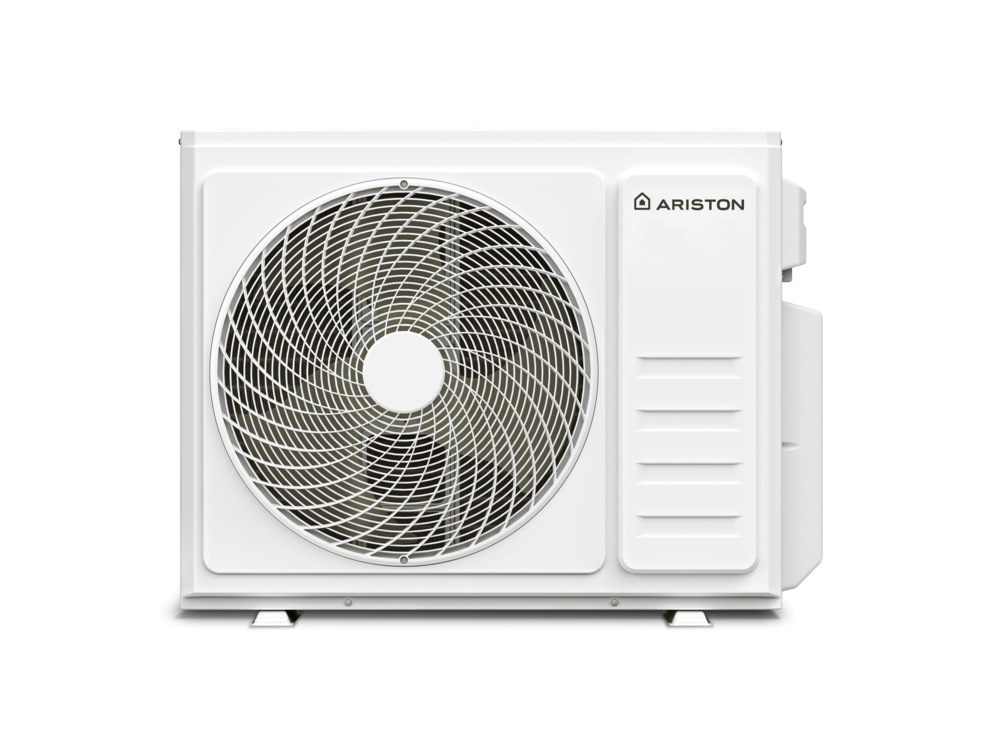

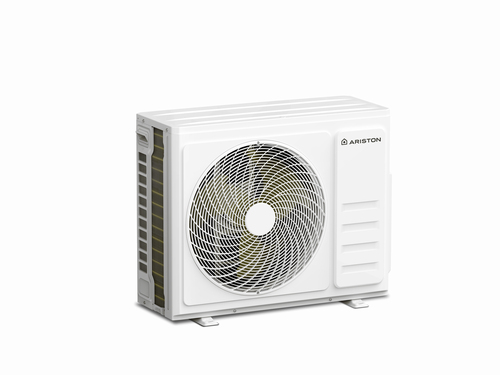

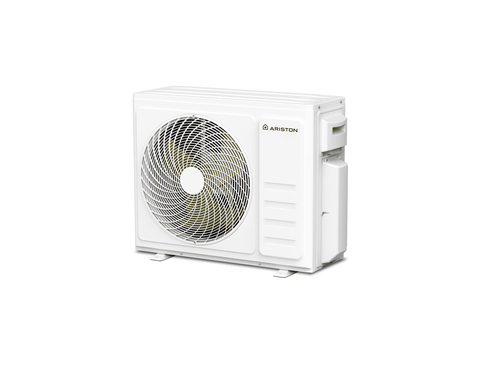

TRIAL C 50 XA1-O

Model TRIAL C 50 XA1-OPart no. 4219019EAN 5411692324216

64 specifications

Overview

64 specifications in 6 groups

Specification	Value
Type	Air conditioner outdoor unit
Multi-split	Yes
Product colour	White
Air conditioner functions	Cooling, Heating, Ventilating
Inverter technology	Yes
Split system type	Triple split
Ionizer	No
Comfort sleeping mode	No
Turbo mode	No
Wind deflector adjustment	Horizontal/Vertical
Frost protection	Yes
Seasonal efficiency rating (cooling) (SEER)	6.1
Seasonal efficiency rating (heating) (SCOP) (Warmer heating season)	4.6
Seasonal efficiency rating (heating) (SCOP) (Average heating season)	4
Cooling energy efficiency (EER, W/W)	6.1
Cooling capacity in watts (nominal)	2700 W
Cooling capacity in watts (min)	900 W
Cooling capacity in watts (max)	3300 W
Heating capacity in watts (nominal) (Warmer heating season)	2800 W
Heating capacity in watts (nominal) (Average heating season)	2400 W
Heating capacity in watts (nominal) (Colder heating season)	5300 W
Heating capacity in watts (min)	600 W
Heating capacity in watts (max)	3400 W
Cooling capacity (nominal)	18000 BTU/h
Built-in display	No
Timer	No
Timer duration (maximum)	24 h
Refrigerating medium	R32
Refrigerating medium weight	1.5 kg
Auto fan	Yes
Gas hose diameter	9.52 mm
Liquid hose diameter	6.35 mm
Air filter	Yes
Anti-bacterial filter	No
Deodorizing filter	No
Remotely operated	No
Operating temperature range outdoor unit (cooling)	-15 - 53 °C
Operating temperature range outdoor unit (heating)	-20 - 30 °C
Auto diagnostic	No
Auto-restart	No
Automatic hot/cold switching	No
Quick connect fitting	No
Removable front panel	No

Specification	Value
Energy efficiency class (cooling)	A++
Energy efficiency class (heating) (Average heating season)	A+
Energy efficiency class (heating) (Warmer heating season)	A++
Annual energy consumption (cooling)	296 kWh
Annual energy consumption (heating) (Warmer heating season)	1400 kWh
Annual energy consumption (heating) (Average heating season)	1550 kWh
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy saving mode	Yes
Energy efficiency class (cooling) (legacy scale)	A++

Specification	Value
Wi-Fi	Yes

Specification	Value
Outdoor unit sound power level	57 dB
Outdoor unit width	92 cm
Outdoor unit depth	38 cm
Outdoor unit height	69.9 cm
Outdoor unit weight	42 kg

Specification	Value
Seasonal efficiency rating (heating) (SCOP)	4.6
Warranty period	3 year(s)
