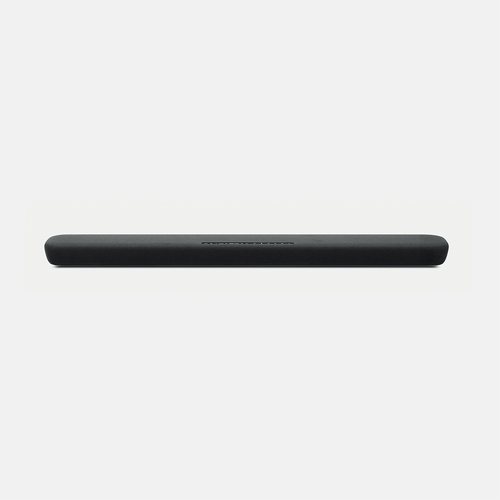

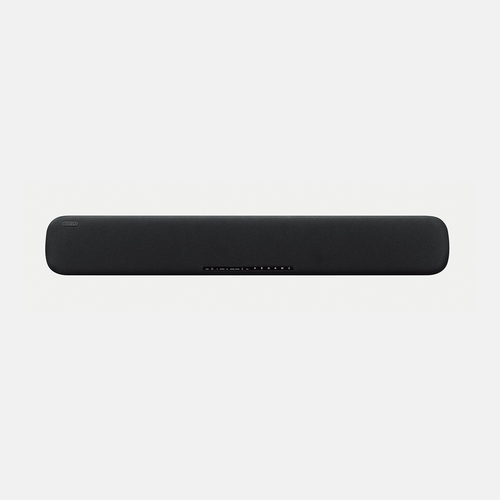

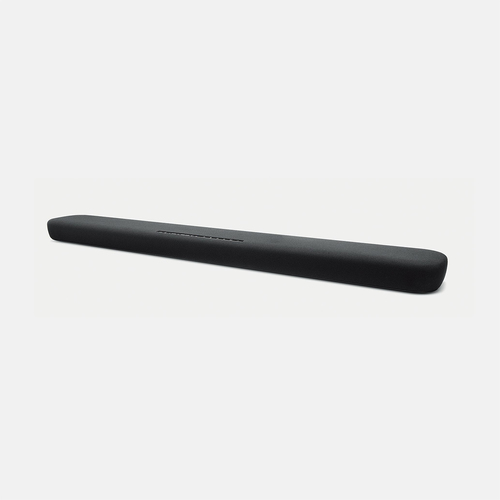

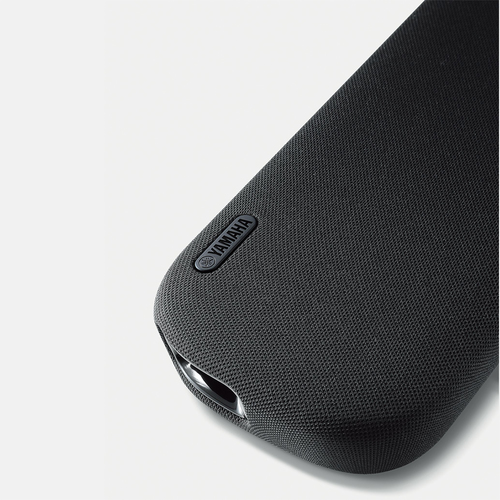

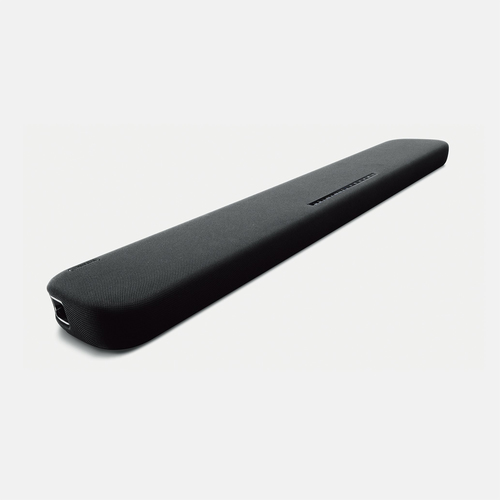

YAS-109 Black 2.1 channels
120 W
Model YAS-109Part no. YAS-109-BLEAN 4957812645355
54 specifications
- ConnectivityWired & Wireless
- ColourBlack
- Audio output channels2.1 channels
- Soundbar speaker RMS power60 W
- Subwoofer includedYes
- Power sourceAC
Overview
- Connectivity
- Wired & Wireless
- Colour
- Black
- Audio output channels
- 2.1 channels
- Soundbar speaker RMS power
- 60 W
- Subwoofer included
- Yes
- Power source
- AC
- Brand
- Yamaha
- Category
- Soundbar Speakers
- Model
- YAS-109
- Part number
- YAS-109-BL
- EAN / UPC
- 4957812645355
- Also known as
- Yamaha YAS-109 Black 2.1 channels 120 W
Specifications
54 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.1 channels |
| RMS rated power | 120 W |
| Audio decoders | DTS Digital Surround, Dolby Audio, Dolby Digital |
| Audio Return Channel (ARC) | Yes |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 60 W |
| Number of tweeter drivers | 2 |
| Number of mid-range drivers | 2 |
| Number of woofer drivers | 2 |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Tweeter diameter | 2.5 cm |
| Mid-range driver diameter (imperial) | 5.4 cm (2.12") |
| Mid-range driver diameter | 5.5 cm |
| Woofer diameter (imperial) | 7.62 cm (3") |
| Woofer diameter | 7.5 cm |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer RMS power | 60 W |
| Subwoofer frequency range | 62 - 170 Hz |
| Subwoofer impedance | 3 Ω |
| Bass reflex | Yes |
| Subwoofer location | Built-in |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| FM radio | No |
| Built-in display | No |
| Audio formats supported | AAC, ALAC, FLAC, MP3, WAV, WMA |
| On/off switch | Yes |
| Smartphone/tablet remote support | Yes |
| Virtual assistant | Amazon Alexa |
| Virtual surround | Yes |
| Wall mountable | Yes |
| TV stand usage | No |

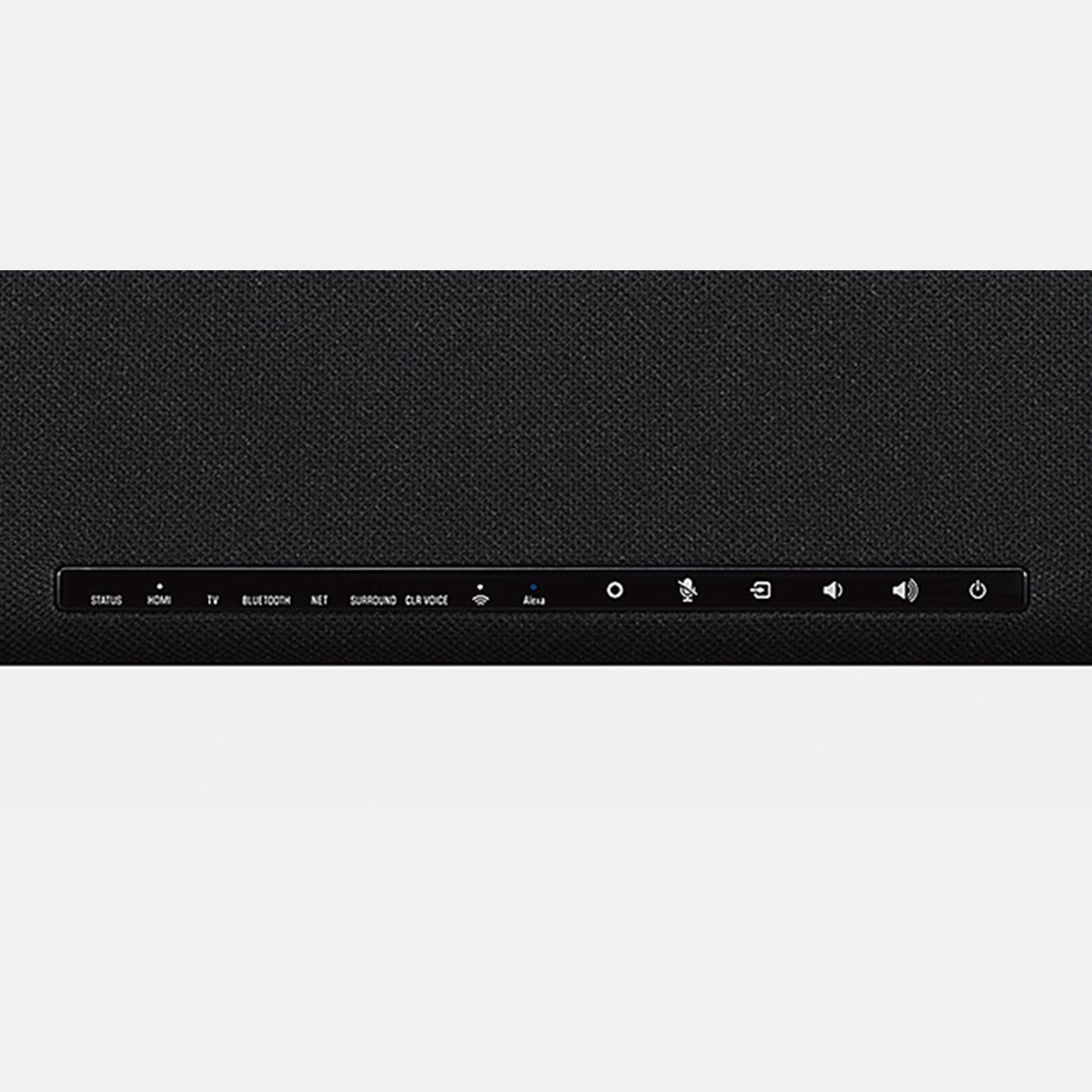

| LED indicators | Yes |

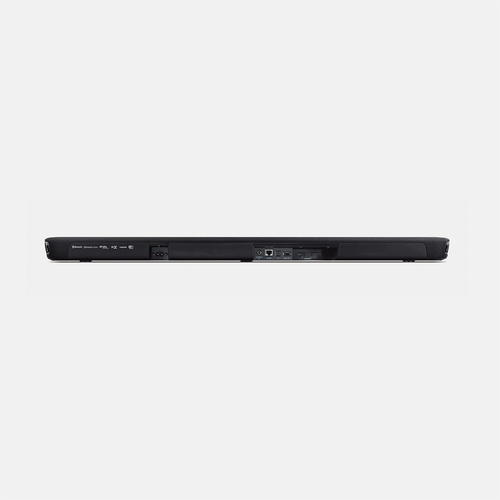

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Digital audio optical in | 1 |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Soundbar power consumption | 30 W |
| Power consumption (standby) | 2.2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 890 mm |
| Depth | 131 mm |
| Height | 53 mm |
| Soundbar weight | 3.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Remote control included | Yes |
Other features
| Specification | Value |
|---|---|
| Bluetooth profiles | A2DP, AVRCP |
| Bluetooth range | 10 m |
| Apple docking compatibility | Not supported |
