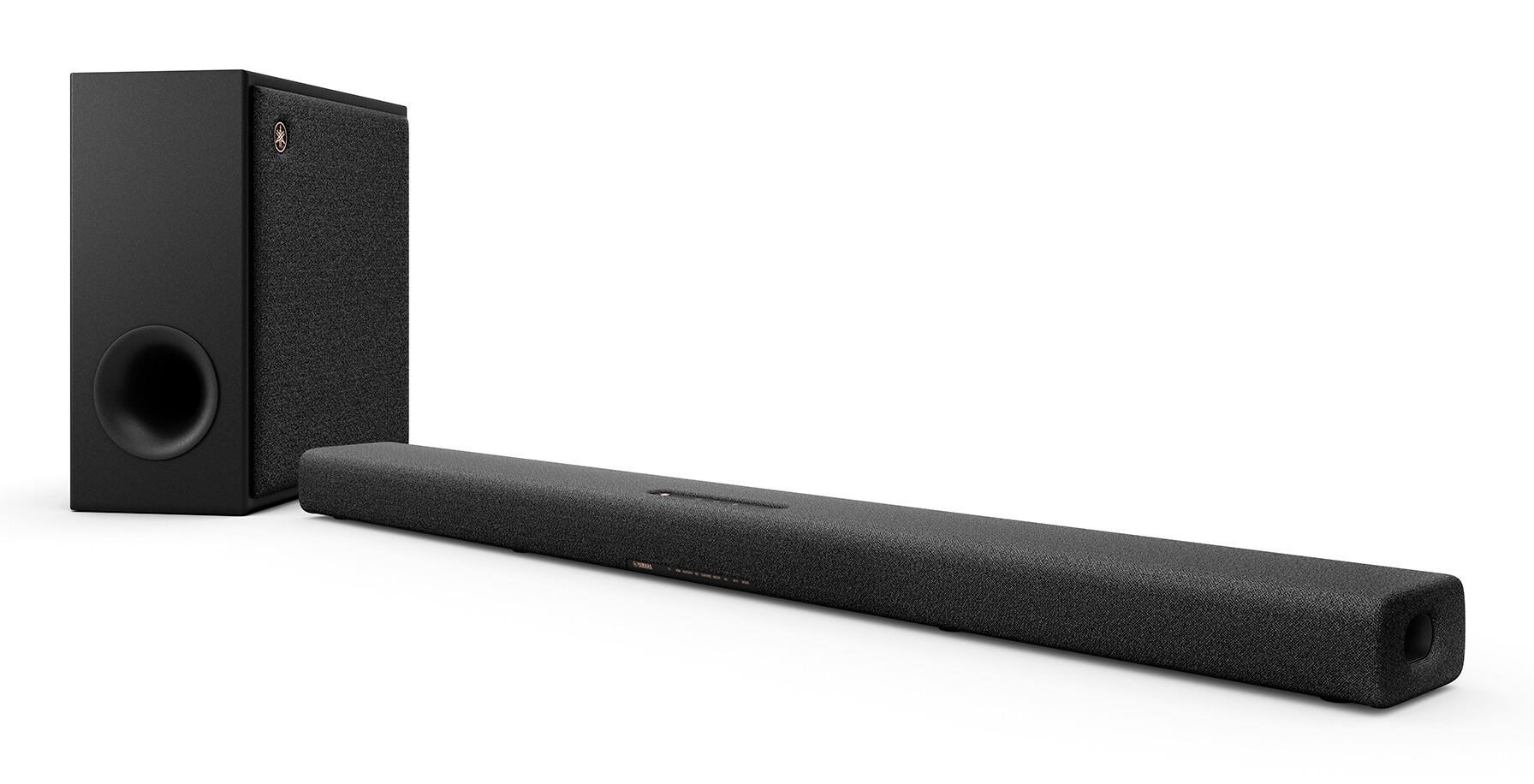

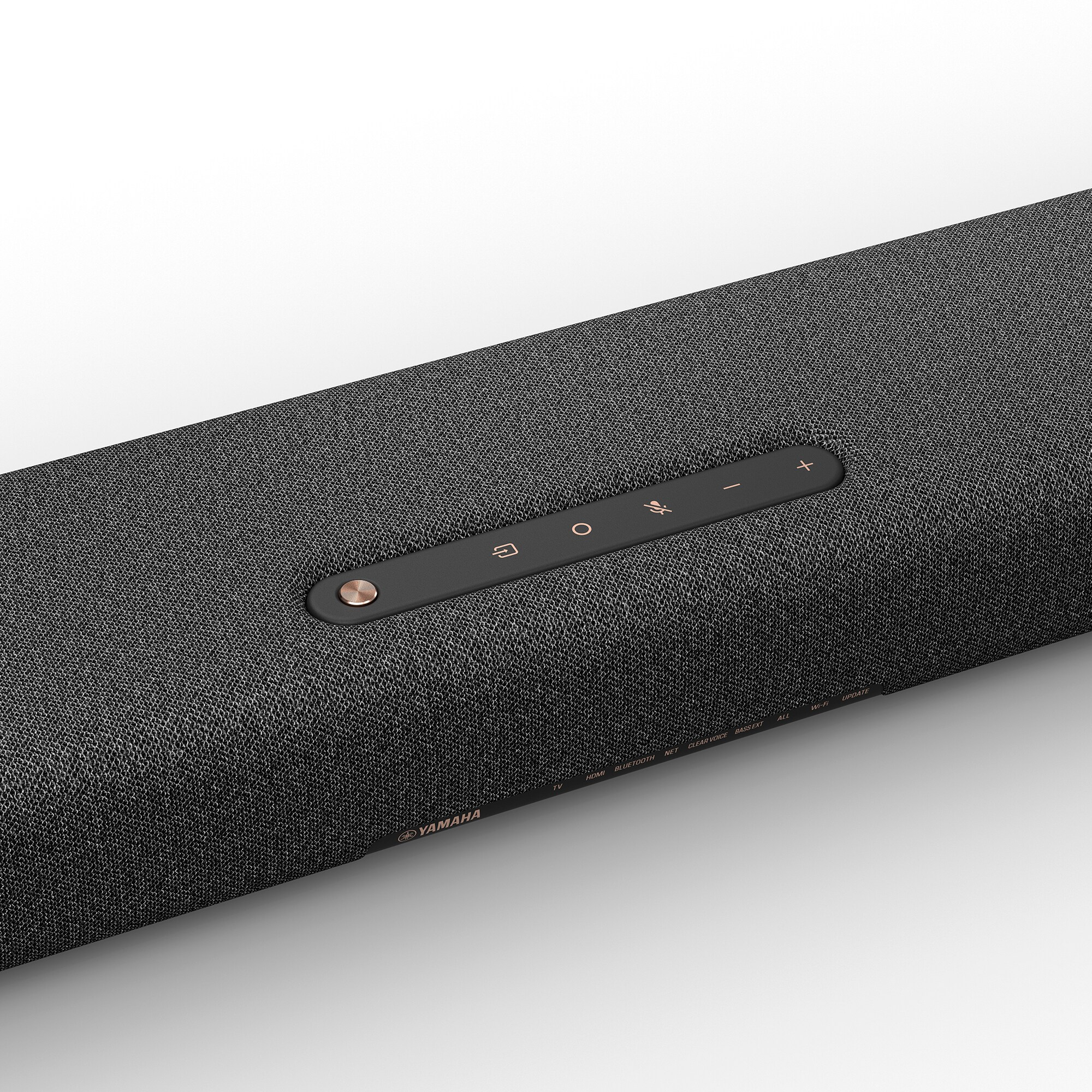

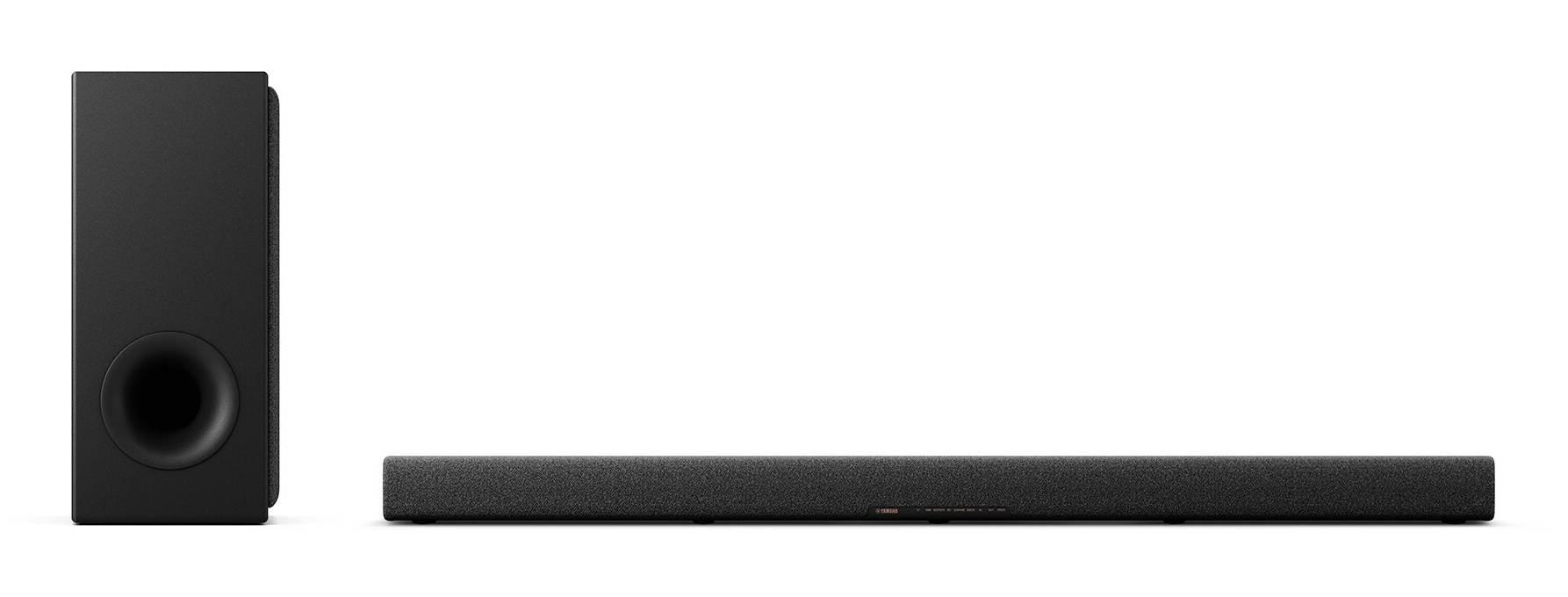

TRUE X BAR 50A Carbon Gray
Model N77031594Part no. APKTRUE50ACGY
63 specifications
- ConnectivityWired & Wireless
- ColourCarbon, Grey
- Audio output channels2.2.2 channels
- Soundbar speaker RMS power180 W
- Subwoofer includedYes
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired & Wireless
- Colour
- Carbon, Grey
- Audio output channels
- 2.2.2 channels
- Soundbar speaker RMS power
- 180 W
- Subwoofer included
- Yes
- AC input voltage
- 100 - 240 V
- Brand
- Yamaha
- Category
- Soundbar Speakers
- Model
- N77031594
- Part number
- APKTRUE50ACGY
- Also known as
- Yamaha TRUE X BAR 50A Carbon Gray
Specifications
63 specifications in 7 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.2.2 channels |
| RMS rated power | 280 W |
| Audio decoders | Dolby Atmos, Dolby Digital, Dolby Digital EX, Dolby Digital Plus, Dolby TrueHD |
| Equalizer modes | Movie, Game, Standard, stereo |
| Audio Return Channel (ARC) | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
| Front speakers RMS power | 60 W |
| Top speaker RMS power | 60 W |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 180 W |
| Impedance | 6 Ω |
| Number of speakers | 6 |
| Number of woofer drivers | 2 |
| Number of full-range drivers | 4 |
| Woofer diameter (imperial) | 7.62 cm (3") |
| Woofer diameter | 7.5 cm |
| Full-range driver diameter (imperial) | 5.08 cm (2") |
| Full-range driver diameter | 5.2 cm |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer connectivity | Wireless |
| Subwoofer RMS power | 100 W |
| Subwoofer frequency range | 35 - 100 Hz |
| Subwoofer impedance | 3 Ω |
| Woofer diameter (subwoofer) | 15.9 cm (6.25") |
Features
| Specification | Value |
|---|---|
| Product colour | Carbon, Grey |
| Colour name | Carbon Grey |
| High Dynamic Range (HDR) technology | Hybrid Log-Gamma (HLG), High Dynamic Range 10 (HDR10), Dolby Vision |
| Apple AirPlay 2 support | Yes |
| Audio formats supported | PCM, WAV, FLAC, AIFF, OGG, ALAC, MP3, WMA, AAC, OPUS |
| Network streaming services supported | Tidal, Spotify |
| Supported video streaming resolutions | 1280 × 720, 1920 × 1080, 4096 x 2160 |
| Consumer Electronics Control (CEC) | Yes |
| Spotify Connect | Yes |
| Smartphone/tablet remote support | Yes |
| Virtual assistant | Amazon Alexa |
| Wall mountable | Yes |
| LED indicators | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Bluetooth codec | A2DP, SBC, MPEG-4 AAC |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Digital audio optical in | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| Soundbar power consumption | 36 W |
| Subwoofer power consumption | 18 W |
| Power consumption (standby) | 0.5 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1015 mm |
| Depth | 112 mm |
| Height | 63 mm |
| Soundbar weight | 3.9 kg |
| Subwoofer width | 18.7 cm |
| Subwoofer depth | 40.9 cm |
| Subwoofer height | 40.7 cm |
| Subwoofer weight | 9.4 kg |
