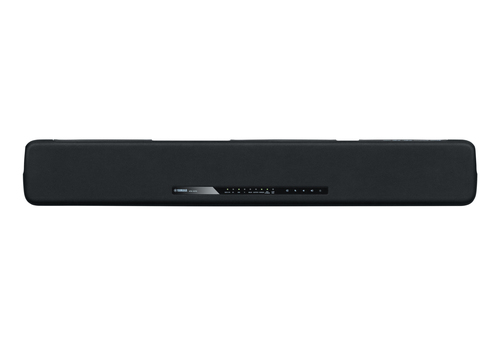

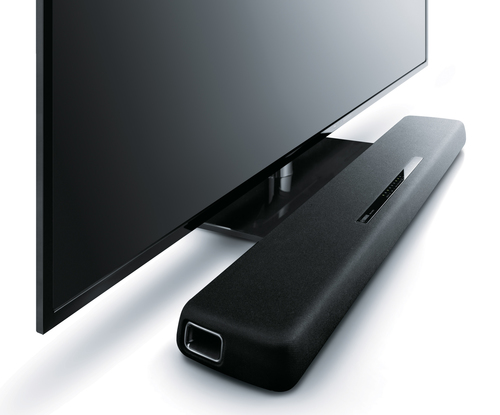

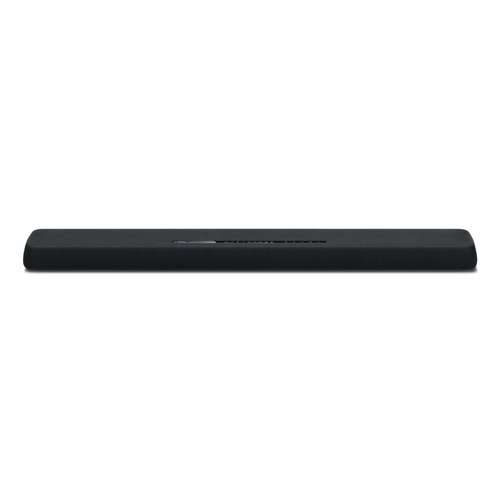

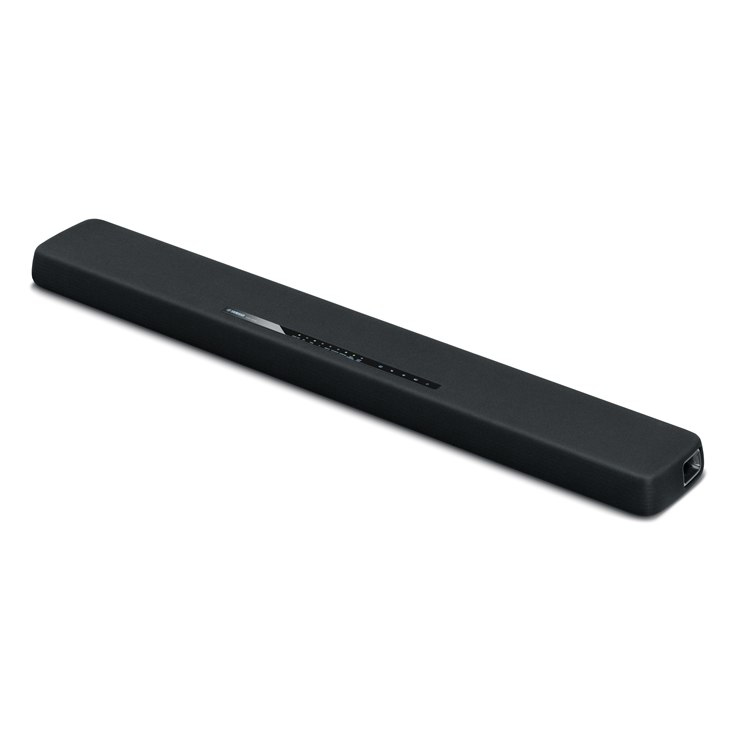

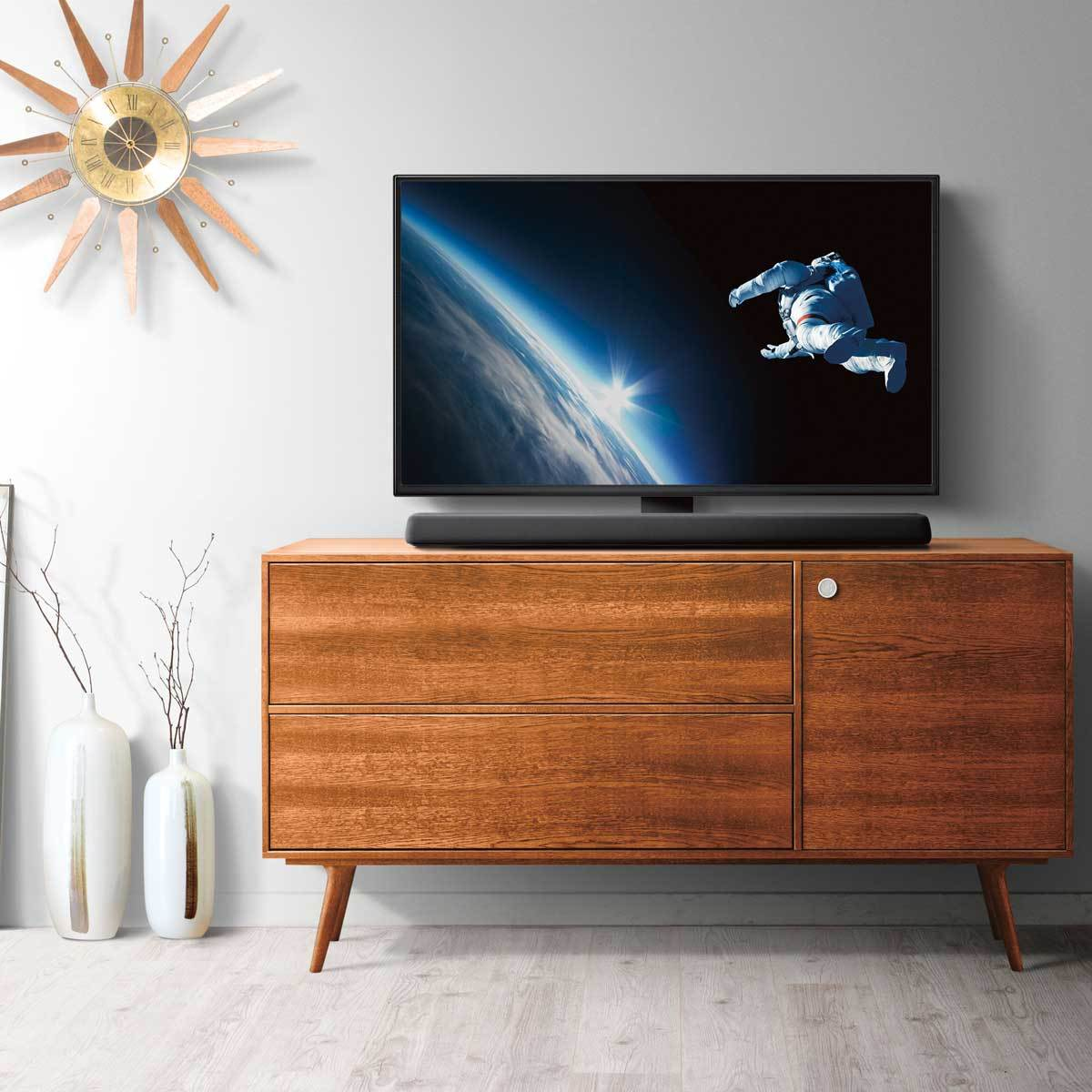

ATS-1070 soundbar speaker Black
120 W
Model ATS-1070
38 specifications
- ConnectivityWireless
- ColourBlack
- RMS rated power120 W
- Soundbar speaker RMS power60 W
- Subwoofer includedYes
- Analog audio input1
Overview
- Connectivity
- Wireless
- Colour
- Black
- RMS rated power
- 120 W
- Soundbar speaker RMS power
- 60 W
- Subwoofer included
- Yes
- Analog audio input
- 1
- Brand
- Yamaha
- Category
- Soundbar Speakers
- Model
- ATS-1070
- Part number
- ATS-1070
- Also known as
- Yamaha ATS-1070 soundbar speaker Black 120 W
Specifications
38 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| RMS rated power | 120 W |
| Audio decoders | DTS Digital Surround, Dolby Digital, Dolby Pro Logic II |
| Equalizer modes | Game, Movie, Music, Sport, TV |
| Audio Return Channel (ARC) | Yes |
| Game mode | Yes |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 60 W |
| Number of speakers | 6 |
| Number of woofer drivers | 2 |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Tweeter diameter | 2.54 cm |
| Woofer diameter (imperial) | 5.33 cm (2.1") |
| Woofer diameter | 5.4 cm |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer RMS power | 60 W |
| Woofer diameter (subwoofer) | 7.62 cm (3") |
| Subwoofer location | Built-in |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Virtual surround | Yes |

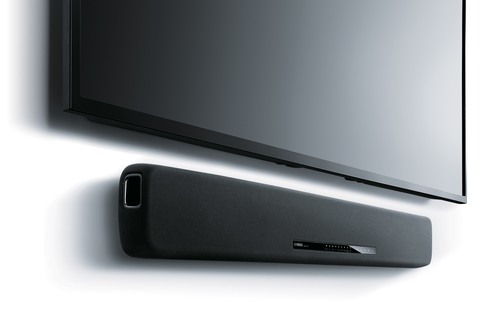

| Wall mountable | Yes |
Technical details
| Specification | Value |
|---|---|
| Analog audio input | 1 |

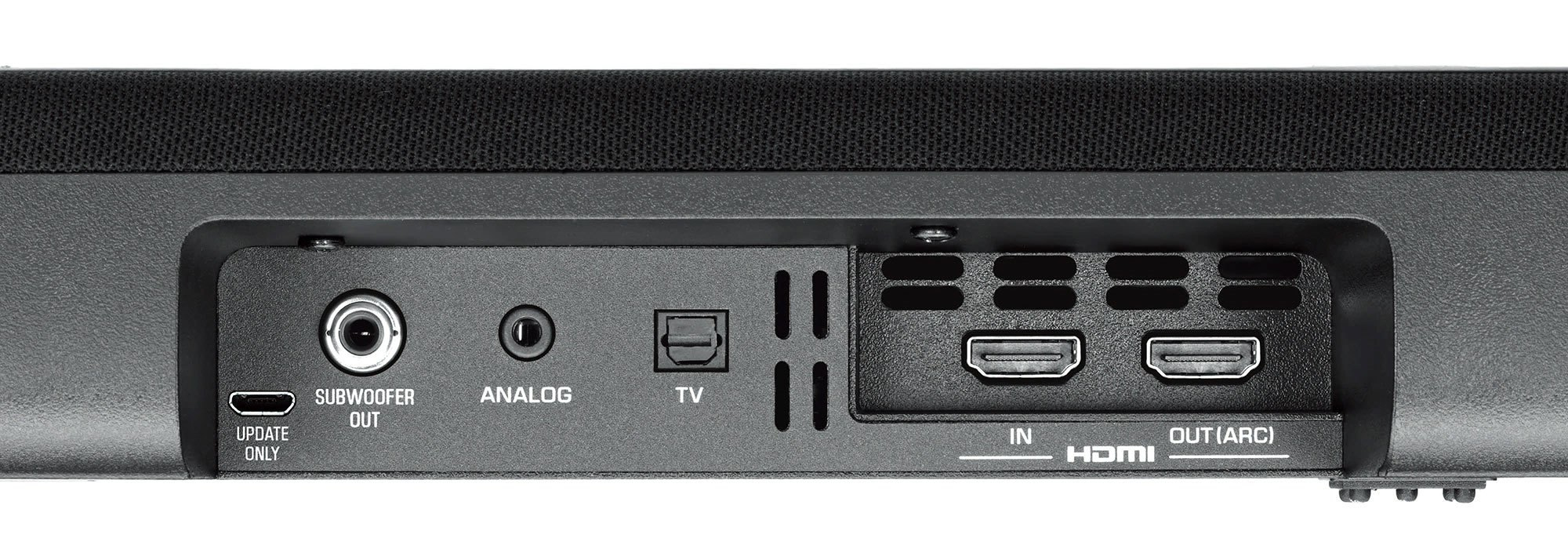

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Bluetooth | Yes |
| Bluetooth version | 4.1+EDR |
| Bluetooth codec | SBC, AAC |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Digital audio optical in | 1 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27 W |
| Power consumption (standby) | 0.8 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 889 mm |
| Depth | 130 mm |
| Height | 54 mm |
| Soundbar weight | 3.4 kg |
