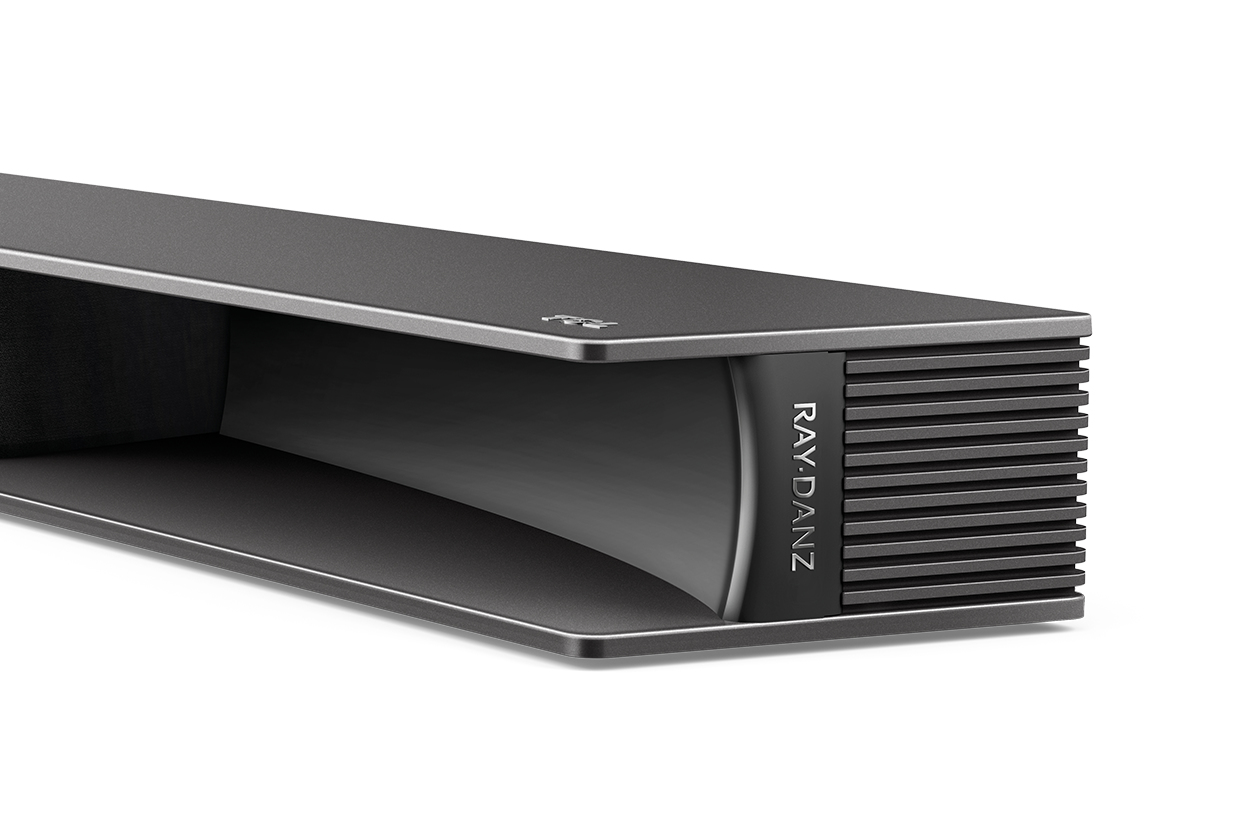

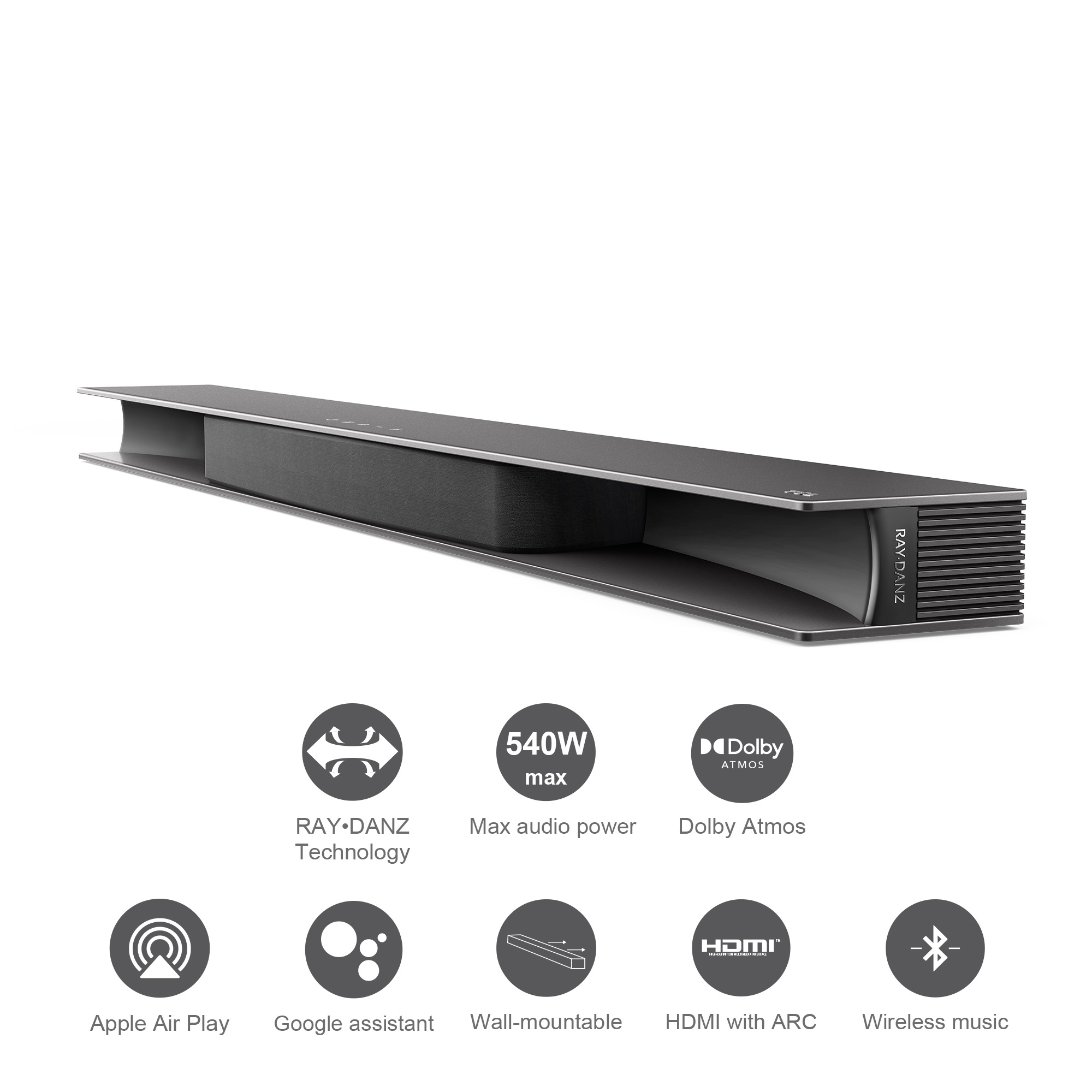

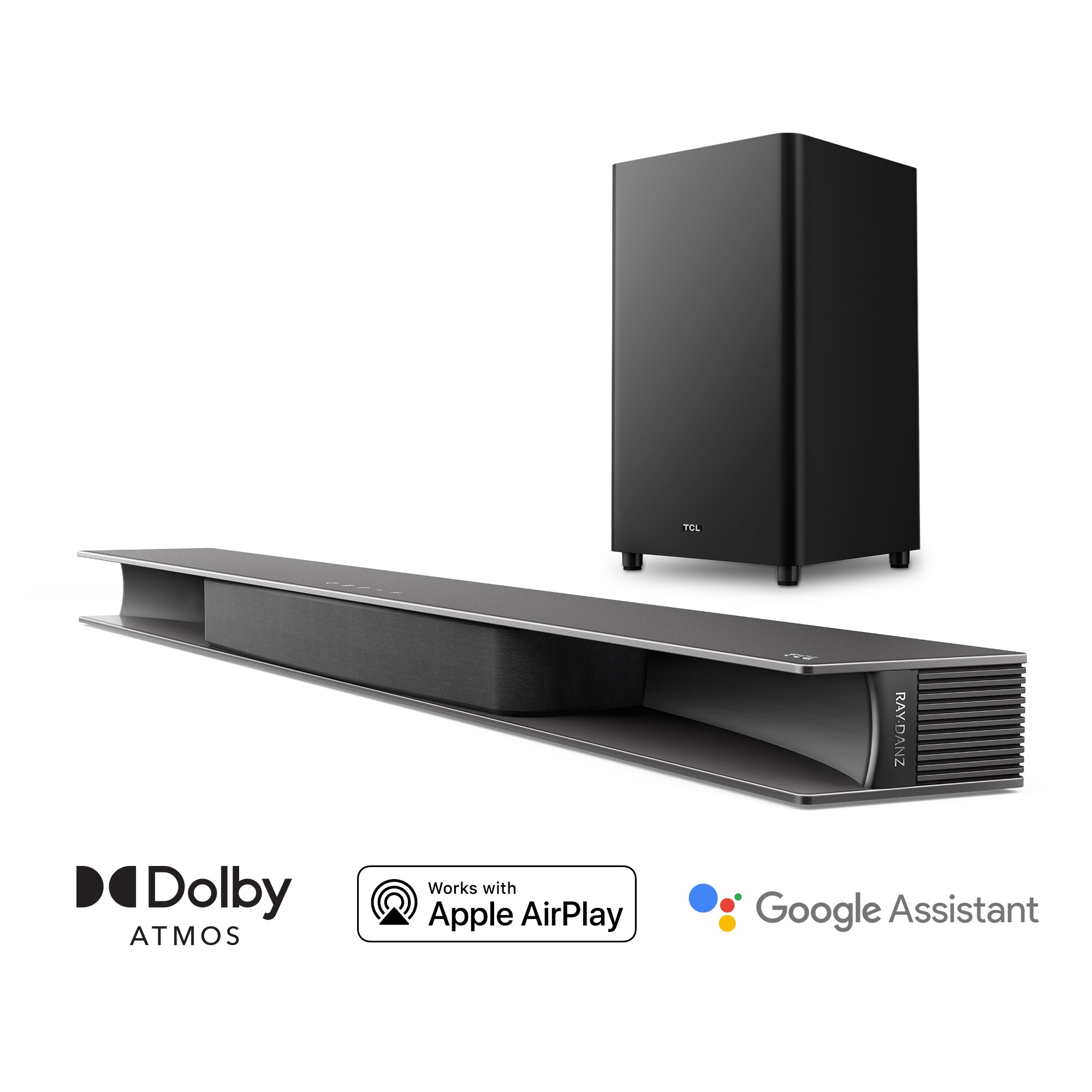

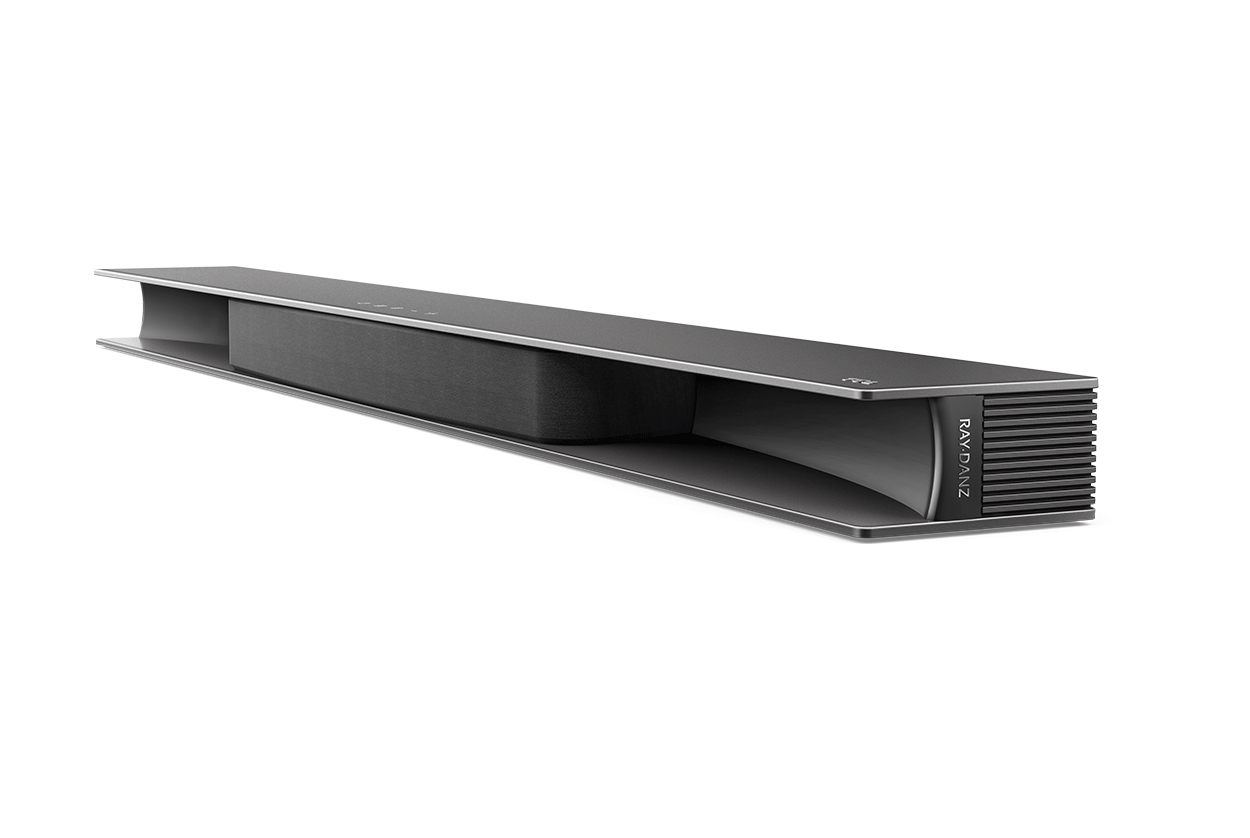

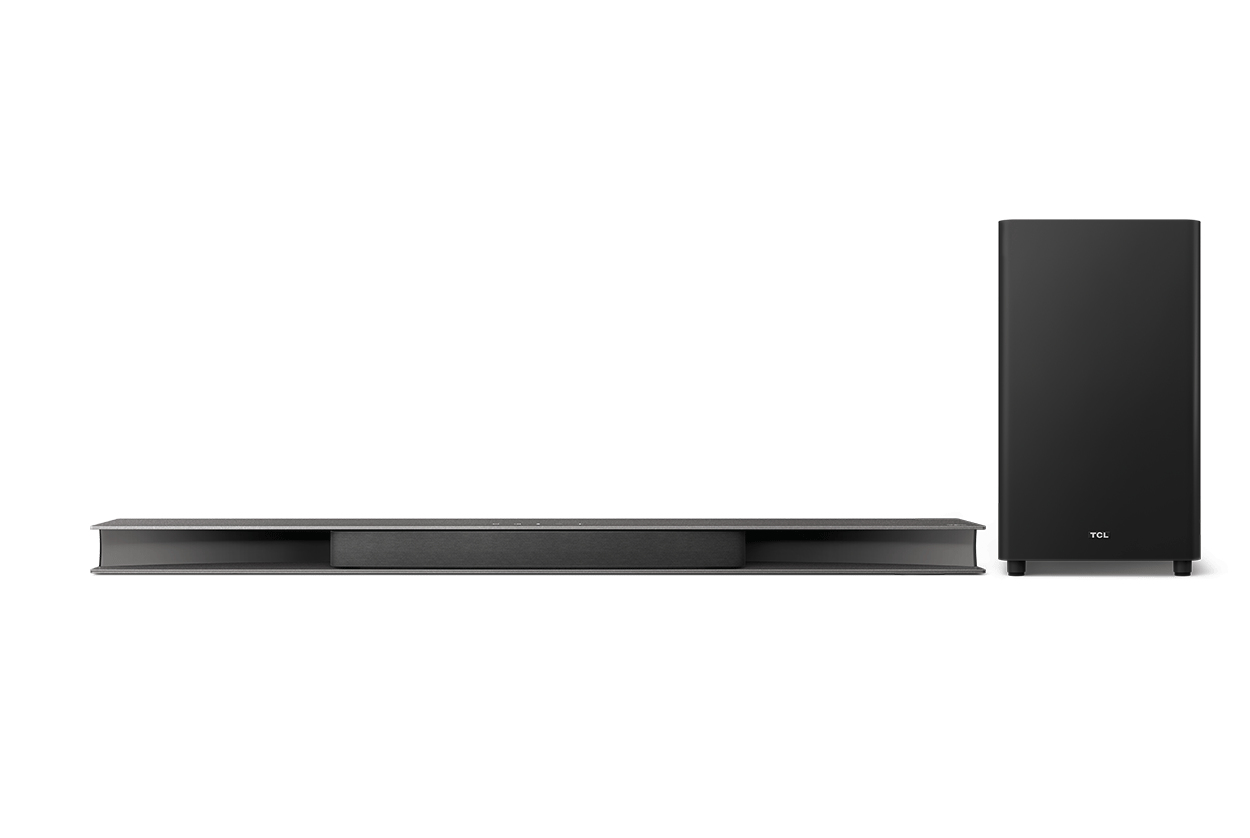

9 TS9030 soundbar speaker Titanium 3.1 channels
540 W
Model TS9030EAN 4895227203862
87 specifications
- ConnectivityWired & Wireless
- Weight8.1 kg
- ColourTitanium
- Audio output channels3.1 channels
- Soundbar speaker RMS power240 W
- Subwoofer includedYes
Overview
- Connectivity
- Wired & Wireless
- Weight
- 8.1 kg
- Colour
- Titanium
- Audio output channels
- 3.1 channels
- Soundbar speaker RMS power
- 240 W
- Subwoofer included
- Yes
- Brand
- TCL
- Category
- Soundbar Speakers
- Model
- TS9030
- Part numbers
- TS9030, TS9030-NA
- EAN / UPC
- 4895227203862, 4895227203909, 846042016322
- Also known as
- TCL 9 TS9030 soundbar speaker Titanium 3.1 channels 540 W
Specifications
87 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 3.1 channels |
| RMS rated power | 540 W |
| Audio decoders | Dolby Atmos, Dolby Digital Plus, Dolby TrueHD |
| Soundbar mode control | Yes |
| TV Sound Share | Yes |
| Equalizer | Yes |
| Equalizer modes | TV, Bass, Movie, Music |
| Audio Return Channel (ARC) | Yes |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 240 W |
| Number of speakers | 4 |
| Tweeter diameter (imperial) | 2.54 cm (1") |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer connectivity | Wireless |
| Subwoofer RMS power | 300 W |
| Woofer diameter (subwoofer) | 16.5 cm (6.5") |
| Subwoofer location | Separate |
Features
| Specification | Value |
|---|---|
| Product colour | Titanium |
| Colour name | Dark Titanium |
| Built-in display | Yes |
| Display type | LED |
| USB direct playback | Yes |

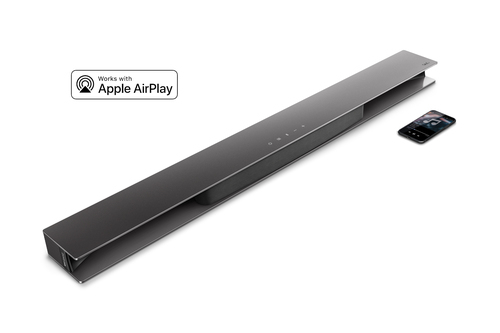

| Apple AirPlay 2 support | Yes |
| Audio formats supported | AAC, ALAC, FLAC, MP3, WAV |

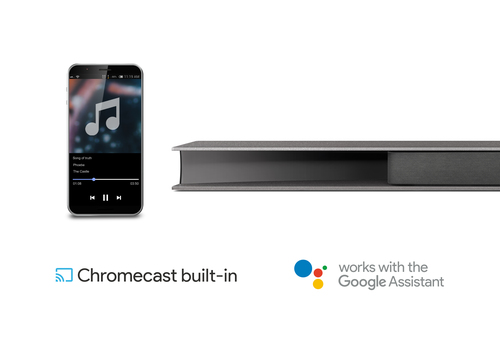

| Built-in Chromecast | Yes |
| Night mode | Yes |
| Auto power off | Yes |
| On/off switch | Yes |
| Auto volume leveller | Yes |
| Sleep timer | Yes |
| Detachable power cord | Yes |
| Virtual assistant | Amazon Alexa & Google Assistant |
| Virtual surround | Yes |
| Plug and Play | Yes |
| Wall mountable | Yes |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 45 °C |
| Country of origin | China |
| Certification | CE |
Technical details
| Specification | Value |
|---|---|
| Analog audio input | 3.5 |
| Pallet net height | 2 m |
| Pallet net length | 100 cm |
| Pallet net width | 120 cm |

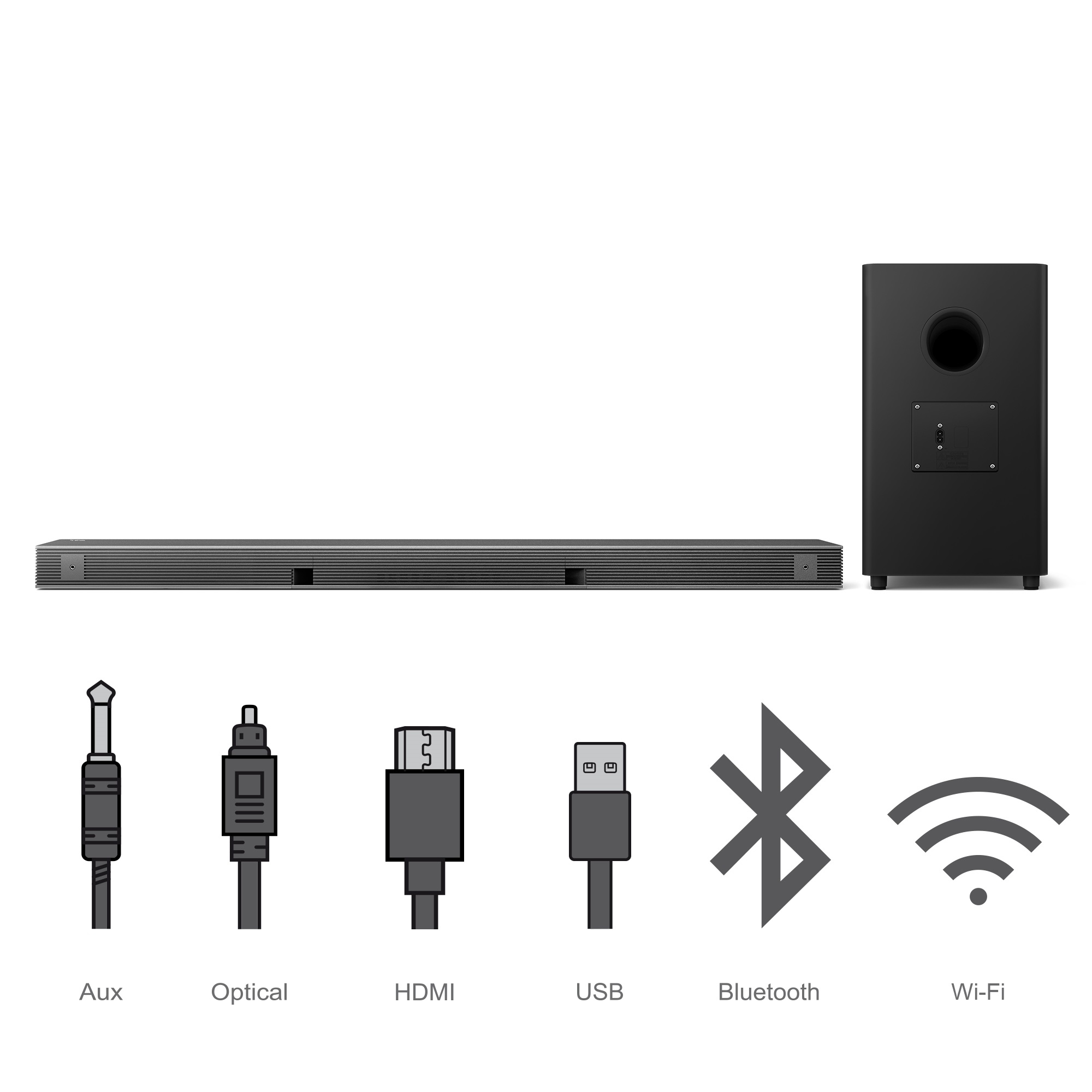

Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth codec | A2DP,AVRCP |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), Wi-Fi 4 (802.11n), 802.11g |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 1.4/2.0 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Digital audio optical in | 1 |
| AUX in | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 Hz |
Battery
| Specification | Value |
|---|---|
| Battery weight | 15 g |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1050 mm |
| Depth | 110 mm |
| Height | 58 mm |
| Weight | 8.1 kg |
| Soundbar weight | 2.6 kg |
| Subwoofer width | 24 cm |
| Subwoofer depth | 24 cm |
| Subwoofer height | 41 cm |
| Subwoofer weight | 5.6 kg |
| Cord length | 1.5 m |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 2 pc(s) |
| Wall mounting kit | Yes |
| Cables included | AC, HDMI, Optical |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1130 mm |
| Package depth | 400 mm |
| Package height | 270 mm |
| Package weight | 10.4 kg |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross width | 120 cm |
| Pallet gross length | 80 cm |
| Pallet net weight | 12.5 kg |
Other features
| Specification | Value |
|---|---|
| Number of remote control batteries | 2 |
| Remote control battery technology | Alkaline |
| Remote control battery type | AAA |
