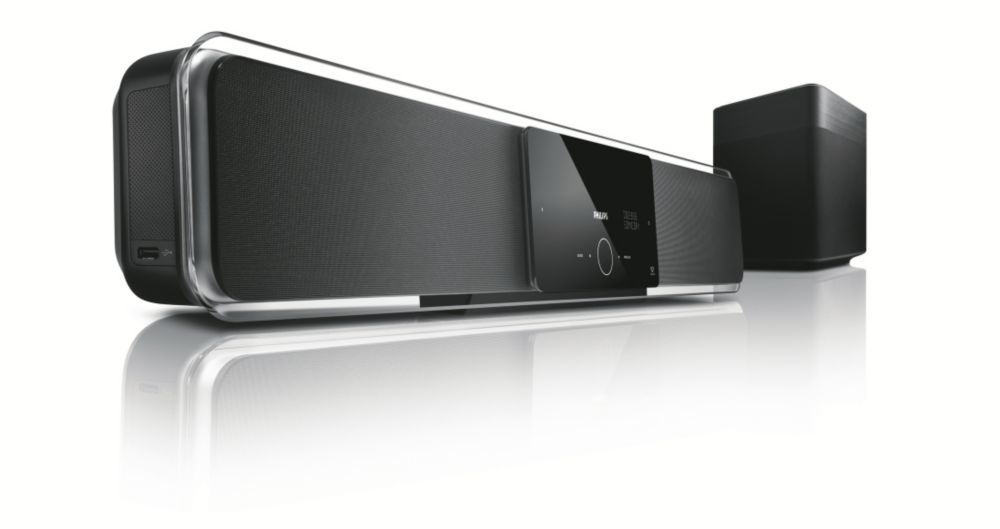

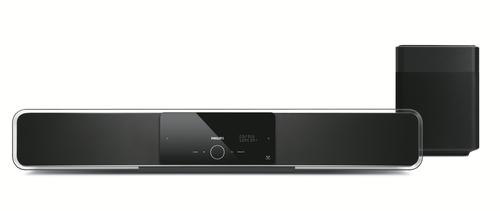

HTS8140 SoundBar DVD home theater
Model HTS8140/98EAN 8712581377861
66 specifications
- ColourBlack
- Audio output channels5.1 channels
- Subwoofer connectivityWired
- Image formats supportedJPEG
- BluetoothNo
- AC input voltage100 - 240 V
Overview
- Colour
- Black
- Audio output channels
- 5.1 channels
- Subwoofer connectivity
- Wired
- Image formats supported
- JPEG
- Bluetooth
- No
- AC input voltage
- 100 - 240 V
- Brand
- Philips
- Category
- Soundbar Speakers
- Model
- HTS8140/98
- Part number
- HTS8140/98
- EAN / UPC
- 8712581377861
- Also known as
- Philips HTS8140 SoundBar DVD home theater
Specifications
66 specifications in 10 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| Audio decoders | DTS, Dolby Digital, Dolby Pro Logic II |
| Equalizer modes | Classic, Game, Jazz |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer connectivity | Wired |
| Subwoofer type | Active subwoofer |
| Subwoofer frequency range | 35 - 200 Hz |
| Subwoofer impedance | 4 Ω |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| FM radio | Yes |
| Audio formats supported | MP3, WMA |
| Consumer Electronics Control (CEC) | EasyLink |
| Supported radio bands | AM, FM |
Technical details
| Specification | Value |
|---|---|
| Audio system | Ambisound Dolby Digital DTS Dolby Prologic II Stereo |
| Image formats supported | JPEG |
| MP3 bit rates | 32 - 256 Kbit/s |
| Main unit weight | 8.9 kg |
| Media types supported | CD-R/RW DVD+R/+RW USB flash drive Audio CD CD-R/RW USB flash drive DVD-Video DVD+R/+RW DVD-R/-RW Video CD/SVCD CD-R/CD-RW |
| Video compression formats | DivX, DivX Ultra, MPEG1, MPEG2, WMV9 |
| Video formats supported | MPEG1, MPEG2 |
| Additional accessories | Quick start guide User Manual Dock for iPod Remote Control Batteries for remote control HDMI cable CVBS video cable MP3 Line-in cable FM antenna AM antenna Interconnect cable Power cord Wall mounting bracket World Wide Warranty leaflet |
| Front / Side connections | Dock connector USB MP3 Line-in |
| I/O ports | HDMI output Component Video output Composite video (CVBS) output TV in (audio, cinch) Easy-Fit speaker connectors Interconnect (to Power Box) AUX in |
| Picture enhancement | Slideshow with music playback Rotate Zoom High Def (720p, 1080i, 1080p) Video upscaling Faroudja DCDi |
| Set weight | 8.9 kg |
| Set width | 104.7 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | No |
| HDMI ports quantity | 1 |
| HDMI in | 0 |
| Number of HDMI outputs | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Digital audio coaxial in | 1 |
| Digital audio coaxial out | 0 |
| Digital audio optical in | 1 |
| AUX in | Yes |
| Digital audio optical out | 0 |
| SCART ports quantity | 0 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.3 W |
| Power requirements | 100-240VAC, 50/60Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 154 mm |
| Height | 174 mm |
| Subwoofer weight | 12.7 kg |
| Main unit dimensions (WxDxH) | 1047 x 154 x 174 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), Composite, HDMI |

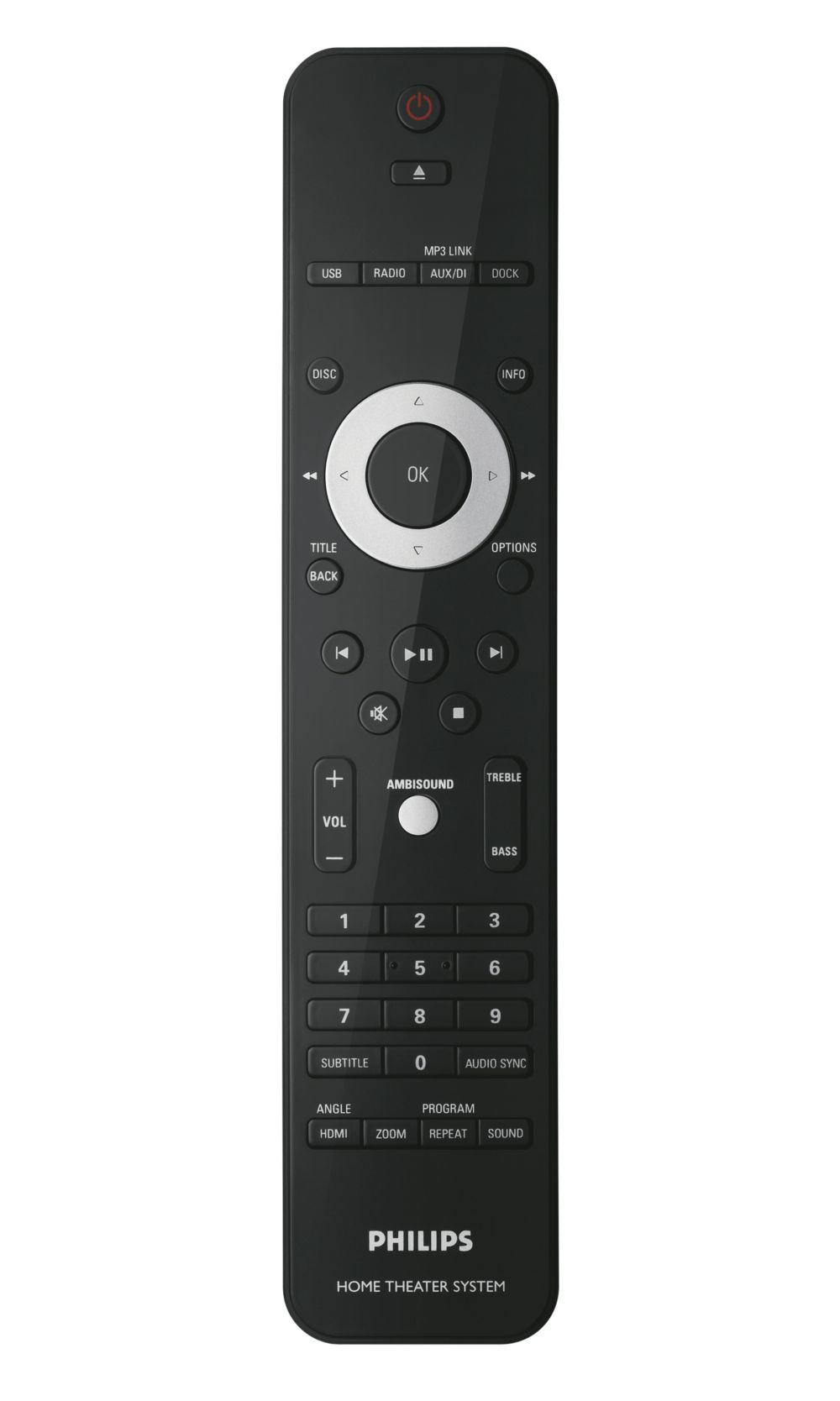

| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1120 mm |
| Package depth | 598 mm |
| Package height | 388 mm |
| Package weight | 30 kg |
Other features
| Specification | Value |
|---|---|
| AirPlay | No |
| Optical disc player type | DVD player |
| Subwoofer driver diameter (imperial) | 16.5 cm (6.5") |
| Satellite speaker impedance | 6 Ω |
| Subwoofer dimensions (W x D x H) | 425 x 322 x 322 mm |
| Manual | Yes |
| Sound enhancement technology | Treble and Bass Control Smart Surround DoubleBass ClearVoice |
| Speaker drivers | 2 x 1" Soft Dome tweeters 6 x 2.5" Full Range woofers |
| Apple docking | Yes |
| Apple docking compatibility | iPod |
