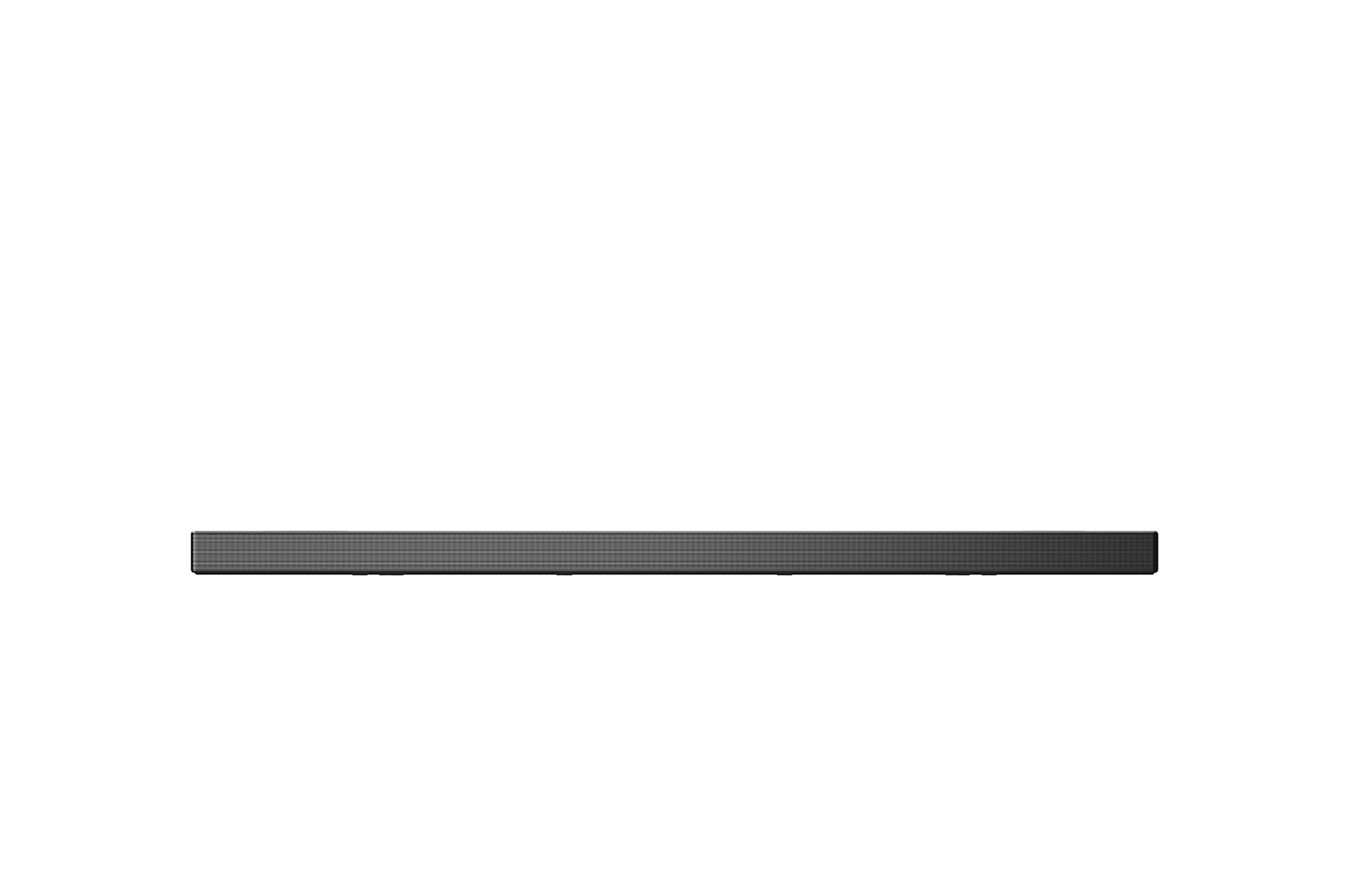

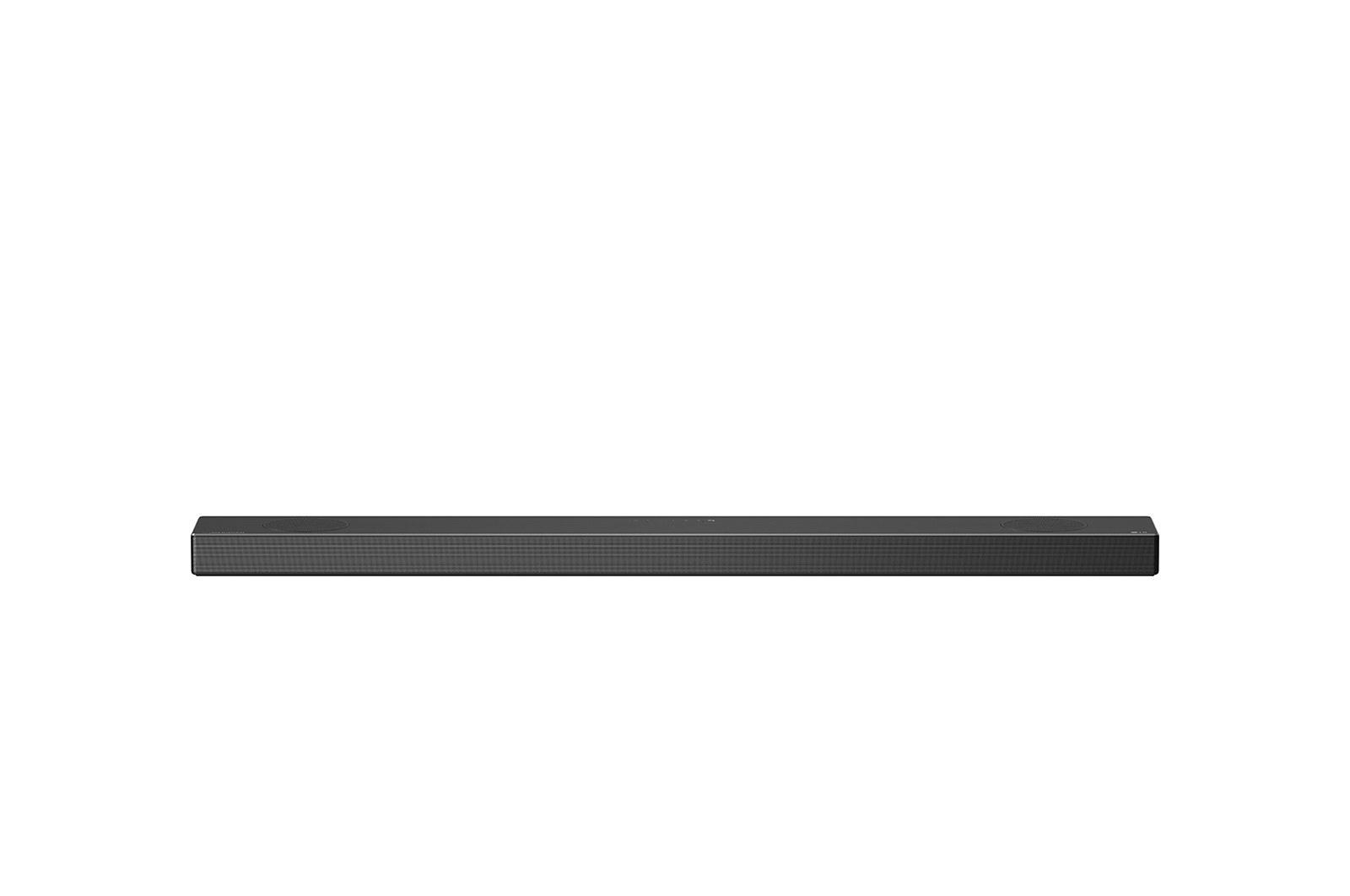

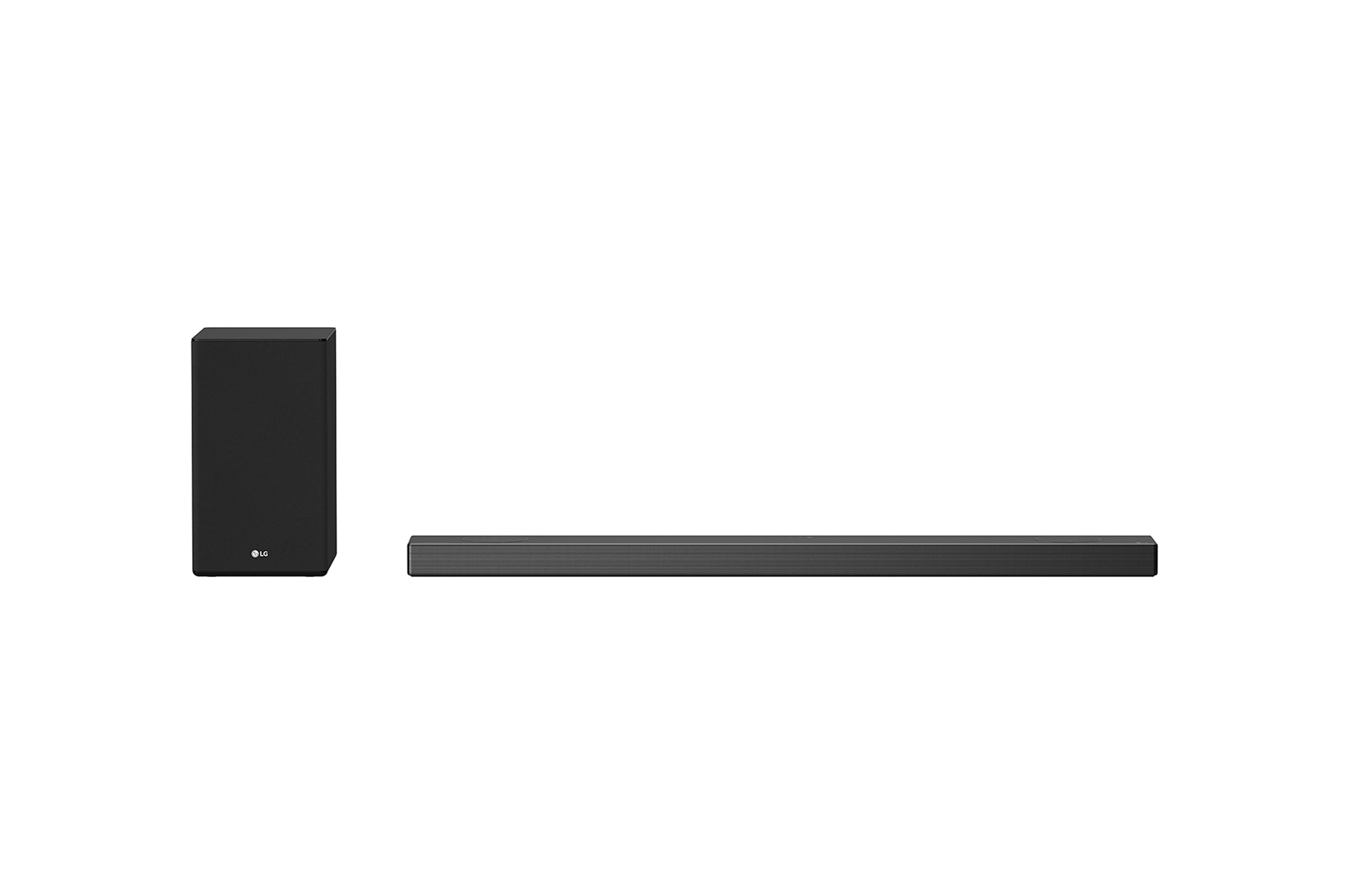

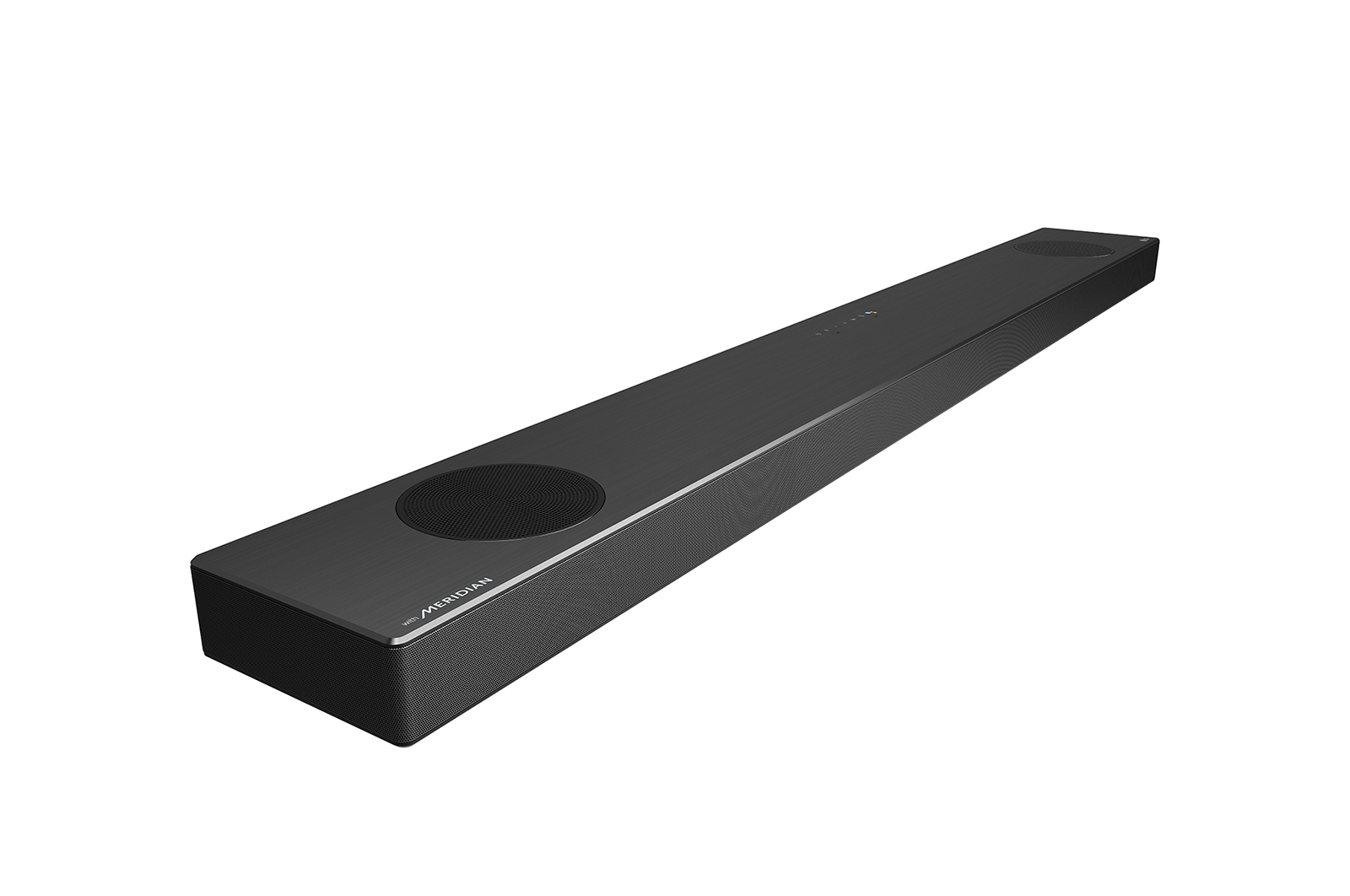

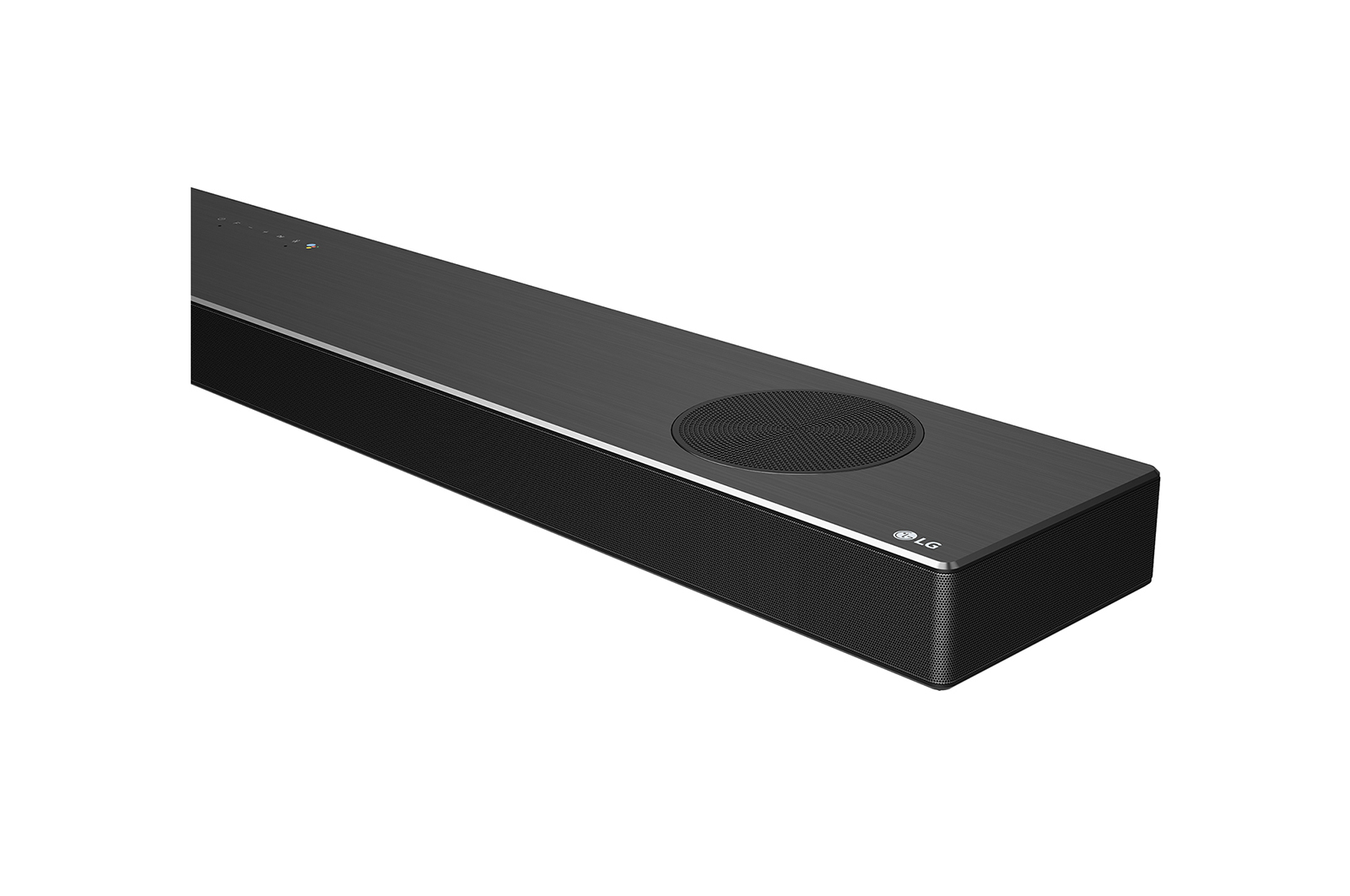

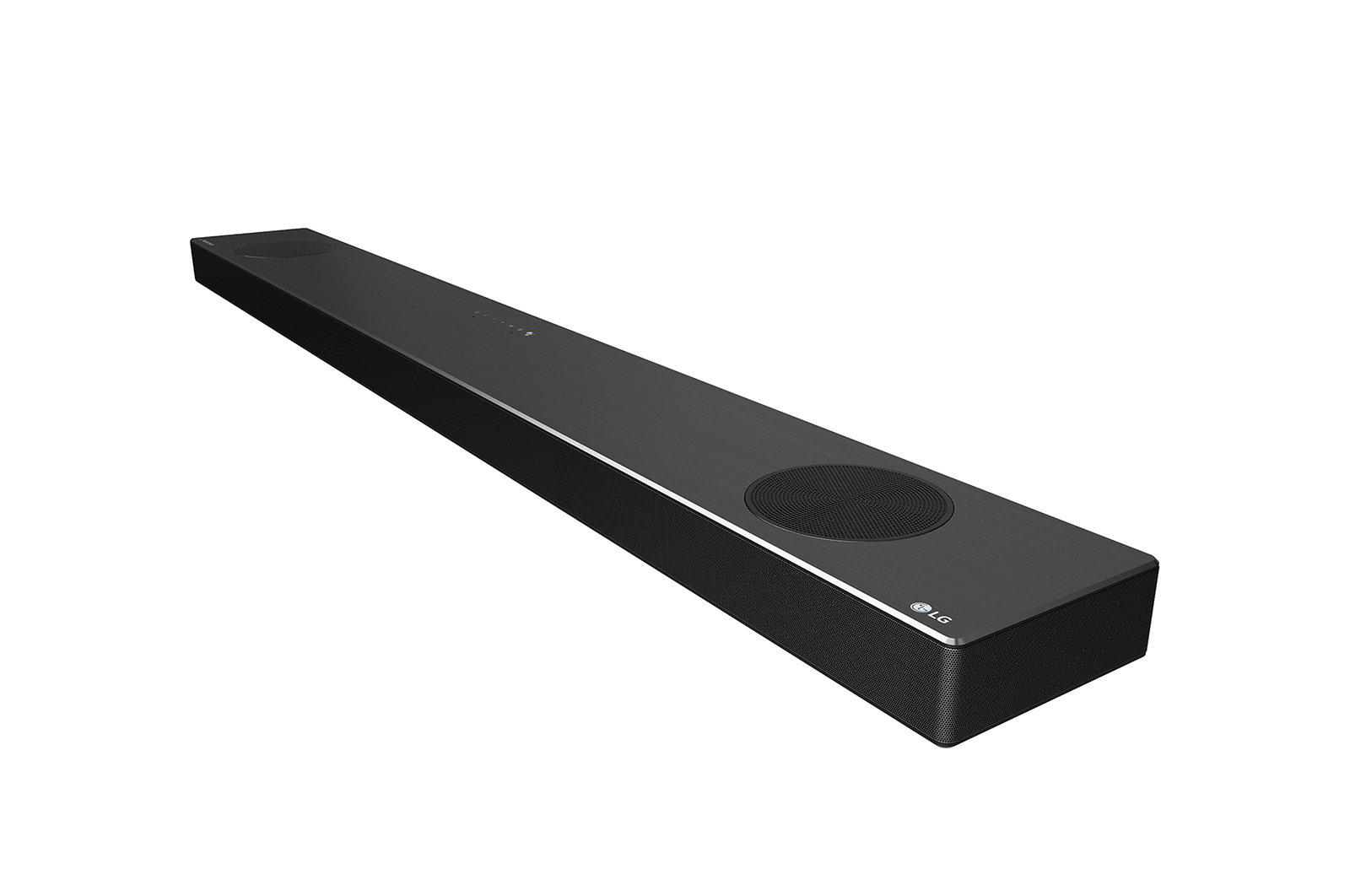

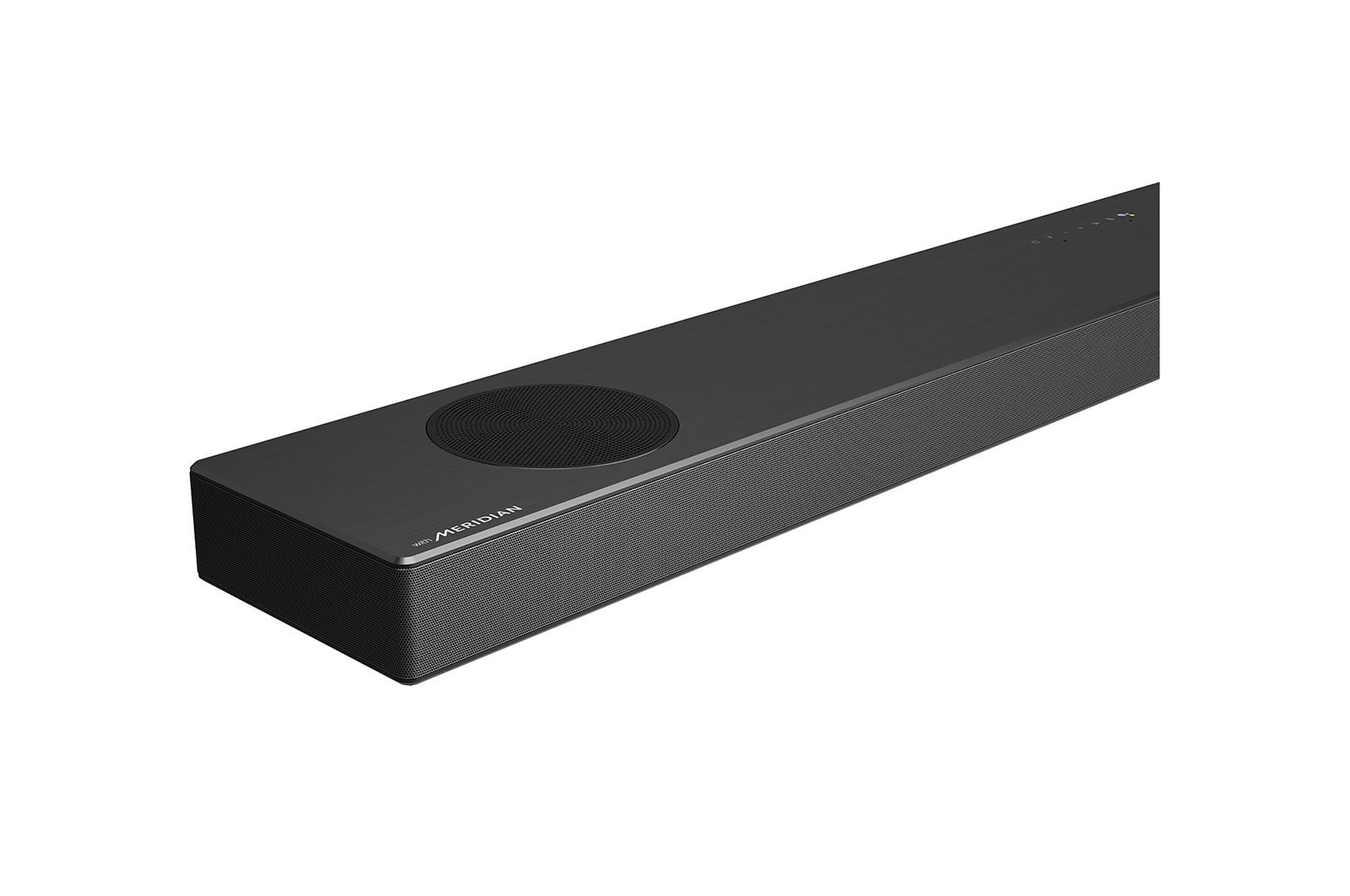

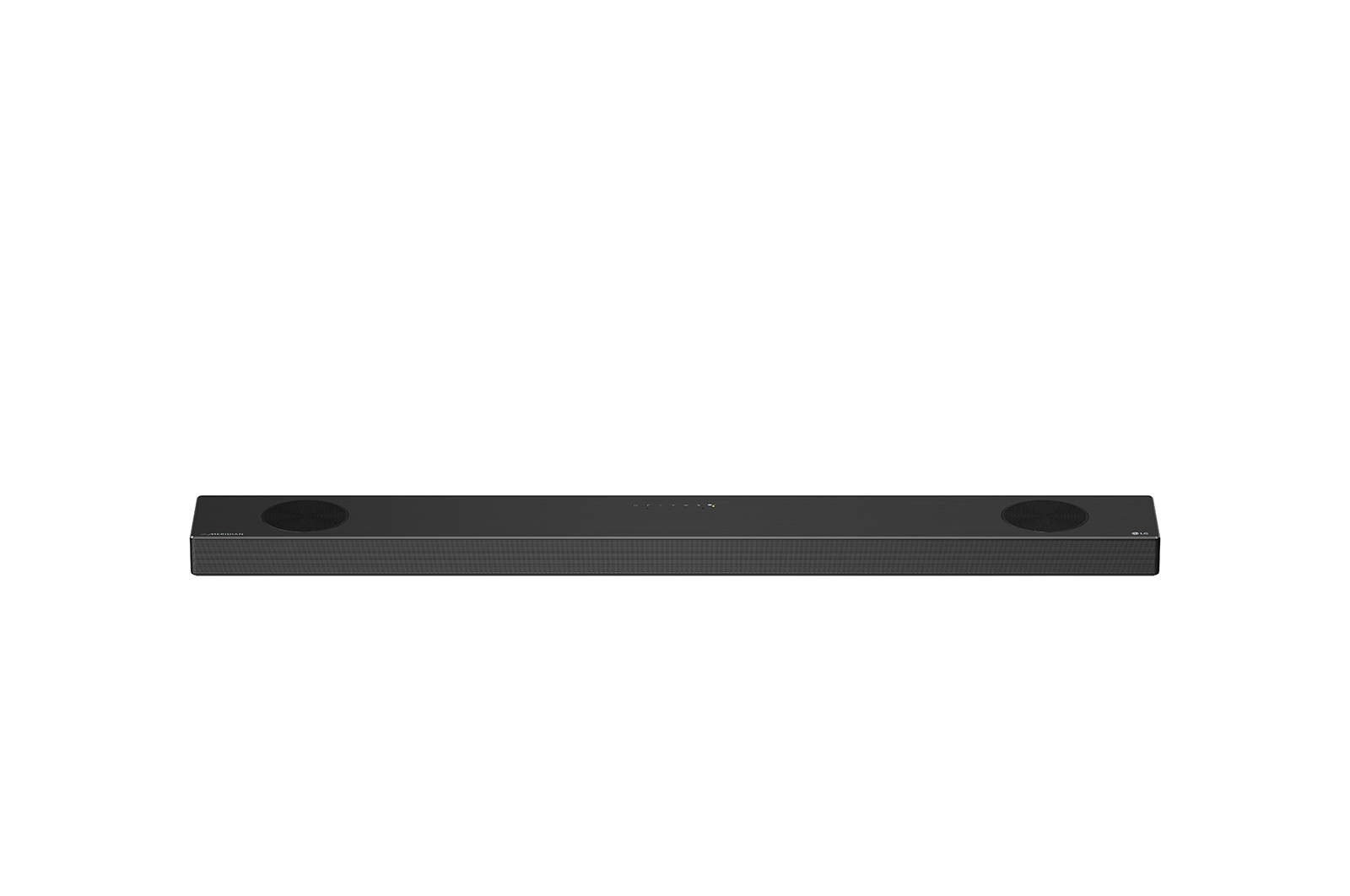

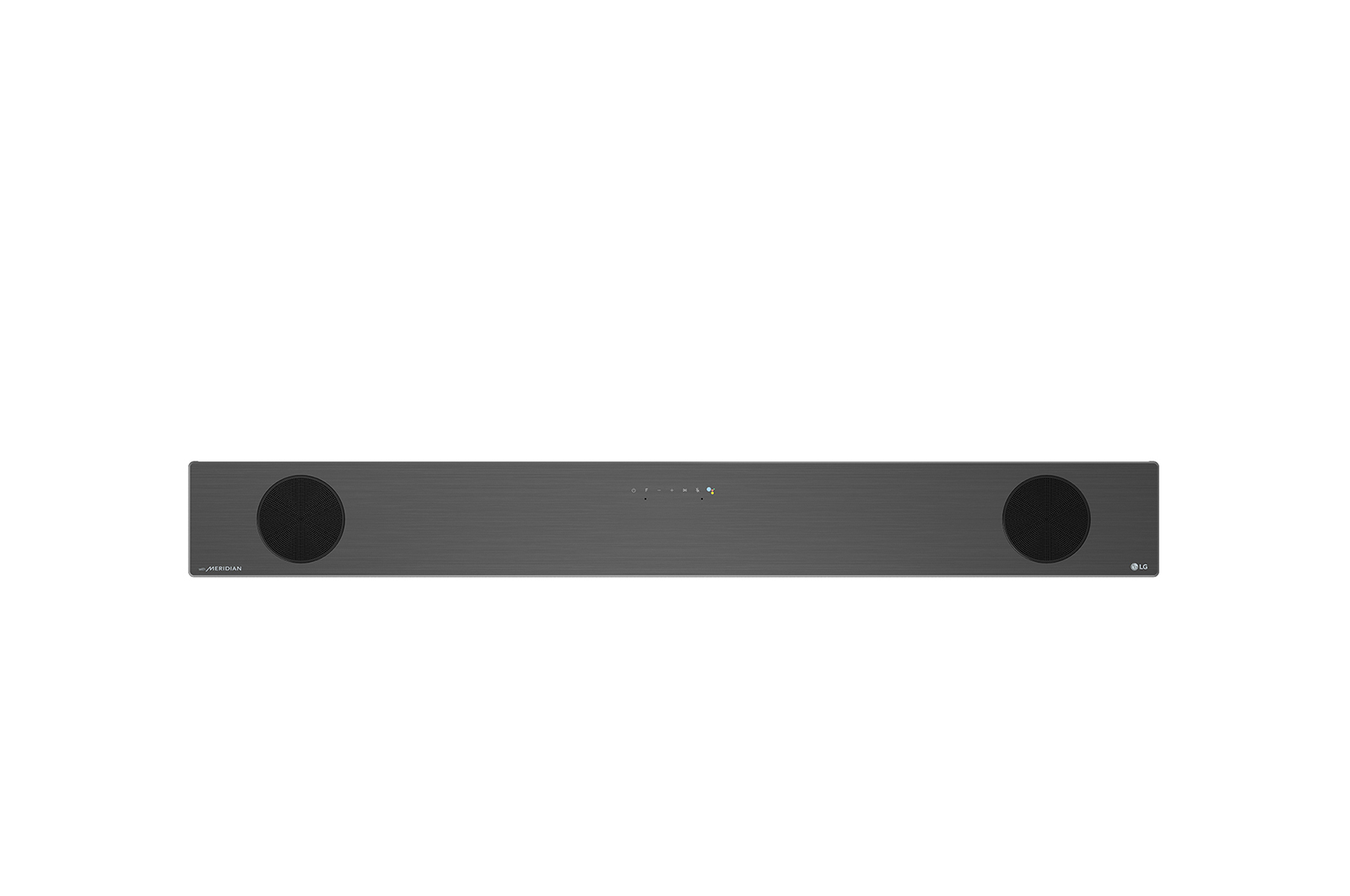

DSN9YG Black 5.1.2 channels
520 W
Model DSN9YGPart no. DSN9YG.DDEULLKEAN 8806098731237
48 specifications
- ConnectivityWired & Wireless
- ColourBlack
- Audio output channels5.1.2 channels
- Soundbar speaker RMS power300 W
- Subwoofer includedYes
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired & Wireless
- Colour
- Black
- Audio output channels
- 5.1.2 channels
- Soundbar speaker RMS power
- 300 W
- Subwoofer included
- Yes
- AC input voltage
- 100 - 240 V
- Brand
- LG
- Category
- Soundbar Speakers
- Model
- DSN9YG
- Part numbers
- DSN9YG.DDEULLK, DSN9YG
- EAN / UPC
- 8806098731237, 8806098739356
- Also known as
- LG DSN9YG Black 5.1.2 channels 520 W
Specifications
48 specifications in 8 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1.2 channels |
| RMS rated power | 520 W |
| Audio decoders | DTS:X |
| Audio Return Channel (ARC) | Yes |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 300 W |
| Impedance | 4 Ω |
| Tweeter impedance | 4 Ω |
| Tweeter diameter | 2 cm |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer connectivity | Wireless |
| Subwoofer RMS power | 220 W |
| Subwoofer impedance | 3 Ω |
| Woofer diameter (subwoofer) | 17.8 cm (7") |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Display type | LCD |
| Audio formats supported | FLAC, MP3, WAV |
| Wall mountable | Yes |
| TV stand usage | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Wi-Fi | Yes |
| HDMI ports quantity | 2 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| HDMI version | 2.1 |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Digital audio optical in | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Soundbar power consumption | 70 W |
| Subwoofer power consumption | 38 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1220 mm |
| Depth | 145 mm |
| Height | 57 mm |
| Soundbar weight | 6.3 kg |
| Subwoofer width | 22.1 cm |
| Subwoofer depth | 31.3 cm |
| Subwoofer height | 39 cm |
| Subwoofer weight | 7.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1286 mm |
| Package depth | 467 mm |
| Package height | 284 mm |
| Package weight | 18.3 kg |
