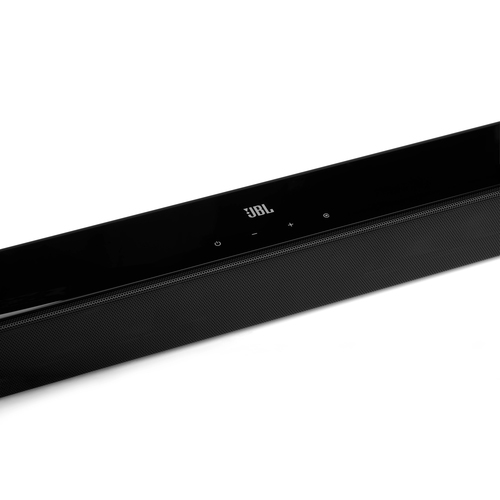

SB 170
Model SB 170Part no. JBLSB170BLKEPEAN 6925281990687
44 specifications
- ConnectivityWired & Wireless
- ColourBlack
- Audio output channels2.1 channels
- Soundbar speaker RMS power104 W
- Subwoofer includedYes
- AC input voltage100 - 240 V
Overview
- Connectivity
- Wired & Wireless
- Colour
- Black
- Audio output channels
- 2.1 channels
- Soundbar speaker RMS power
- 104 W
- Subwoofer included
- Yes
- AC input voltage
- 100 - 240 V
- Brand
- JBL
- Category
- Soundbar Speakers
- Model
- SB 170
- Part number
- JBLSB170BLKEP
- EAN / UPC
- 6925281990687
- Also known as
- JBL SB 170 Black 2.1 channels 220 W
Specifications
44 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 2.1 channels |
| RMS rated power | 220 W |
| Audio decoders | Dolby Digital |
| Audio Return Channel (ARC) | Yes |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 104 W |
| Number of tweeter drivers | 2 |
| Number of mid-range drivers | 2 |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer connectivity | Wireless |
| Subwoofer type | Active subwoofer |
| Subwoofer RMS power | 116 W |
| Subwoofer frequency range | 40 - 20000 Hz |
| Woofer diameter (subwoofer) | 13.3 cm (5.25") |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Audio formats supported | MP3, WAV |
| Wall mountable | Yes |
| Operating temperature (T-T) | 0 - 45 °C |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth codec | A2DP V1.3 / AVRCP V1.5 |
| Wi-Fi | No |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| HDCP | Yes |
| HDCP version | 1.4 |
| Digital audio optical out | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 900 mm |
| Depth | 67 mm |
| Height | 63 mm |
| Soundbar weight | 1.65 kg |
| Subwoofer width | 17 cm |
| Subwoofer depth | 34.5 cm |
| Subwoofer height | 31.3 cm |
| Subwoofer weight | 5 kg |

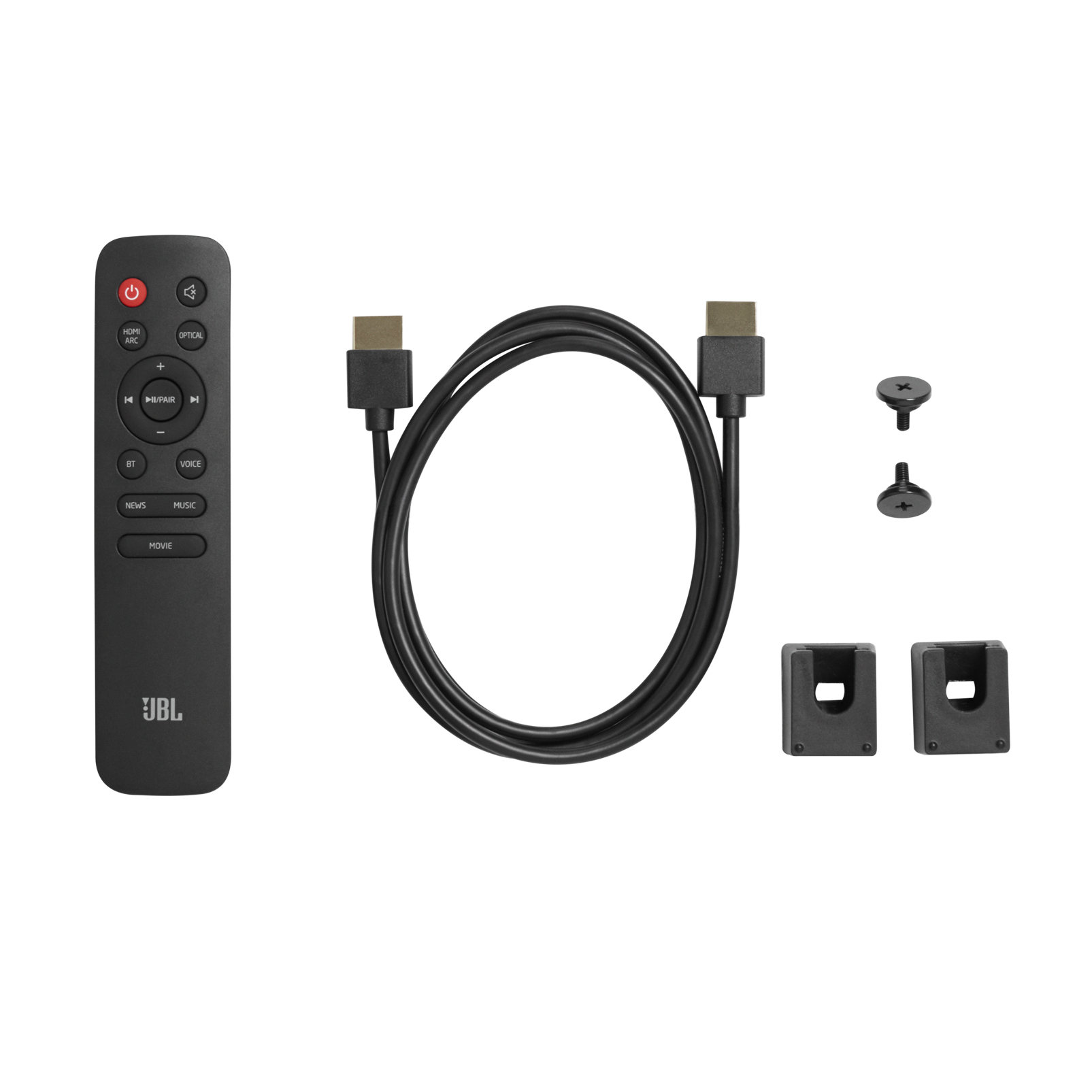

Packaging content
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
| Cables included | AC, HDMI |
| Remote control included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package type | Box |
