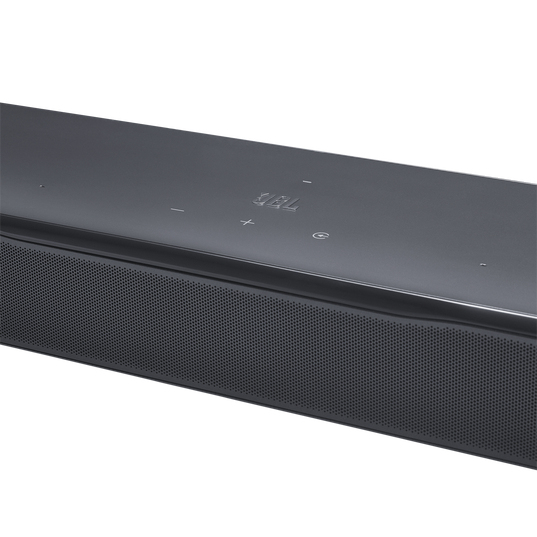

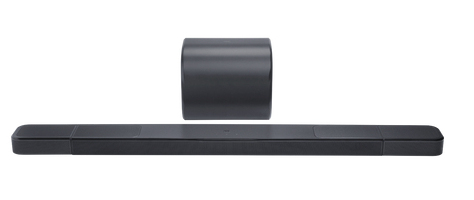

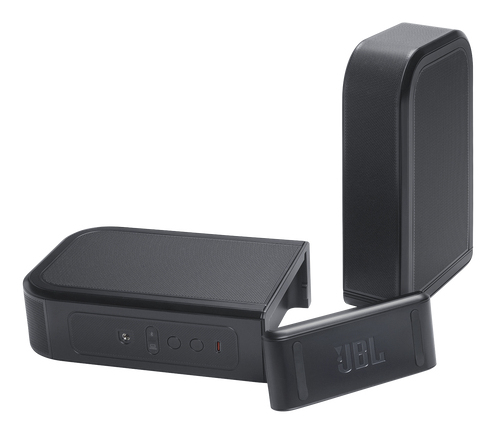

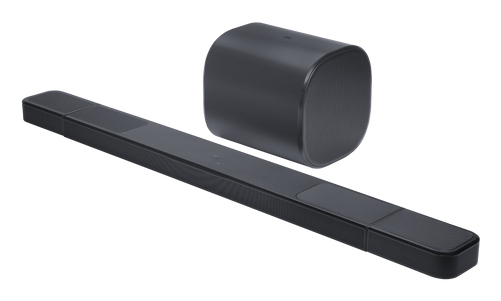

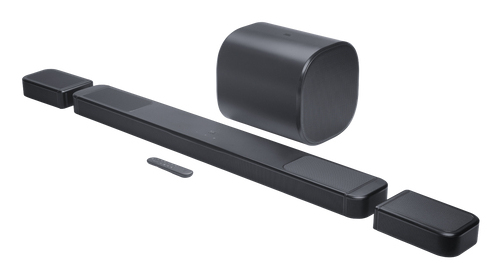

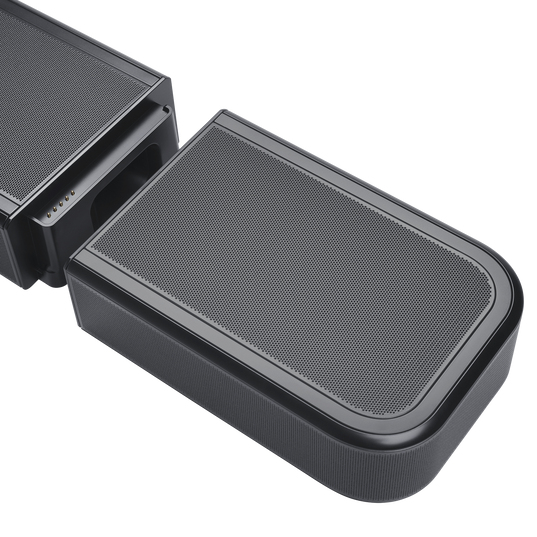

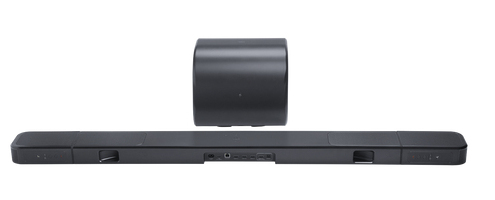

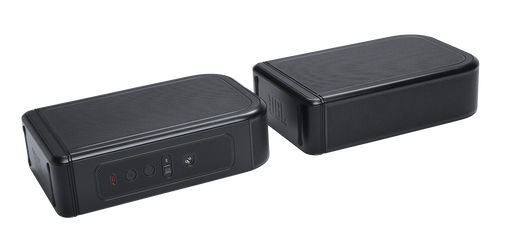

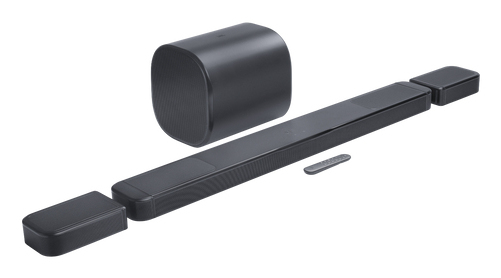

BAR 1300MK2
Model BAR 1300MK2Part no. JBLBAR1300M2BLKAS2EAN 1200130019944
61 specifications
- ConnectivityWireless
- ColourBlack
- Audio output channels11.1.4 channels
- Soundbar speaker RMS power950 W
- Subwoofer includedYes
- Applications supportedJBL ONE
Overview
- Connectivity
- Wireless
- Colour
- Black
- Audio output channels
- 11.1.4 channels
- Soundbar speaker RMS power
- 950 W
- Subwoofer included
- Yes
- Applications supported
- JBL ONE
- Brand
- JBL
- Category
- Soundbar Speakers
- Model
- BAR 1300MK2
- Part numbers
- JBLBAR1300M2BLKAS2, JBLBAR1300M2BLKIN, JBLBAR1300M2BLKEP
- EAN / UPC
- 1200130019944, 1200130019975, 050036407731
- Also known as
- JBL BAR 1300MK2 Black 11.1.4 channels 2470 W
Specifications
61 specifications in 10 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 11.1.4 channels |
| RMS rated power | 2470 W |
| Audio decoders | DTS:X, Dolby Atmos |
| Enhanced Audio Return Channel (eARC) | Yes |
| Rear(top) speaker RMS power | 160 W |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 950 W |
| Number of tweeter drivers | 7 |
| Number of full-range drivers | 4 |
| Tweeter diameter (imperial) | 2.54 cm (1") |
| Tweeter diameter | 2.54 cm |
| Woofer diameter (imperial) | 20.3 cm (8") |
| Full-range driver diameter (imperial) | 7.62 cm (3") |
| Full-range driver diameter | 7.62 cm |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer connectivity | Wireless |
| Subwoofer RMS power | 1200 W |
| Woofer diameter (subwoofer) | 20.3 cm (8") |
| Subwoofer location | Separate |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| High Dynamic Range (HDR) technology | Dolby Vision, High Dynamic Range 10+ (HDR10 Plus) |
| Audio formats supported | MP3 |
| Wall mountable | Yes |
Technical details
| Specification | Value |
|---|---|
| Applications supported | JBL ONE |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi frequency | 5 GHz |
| HDMI ports quantity | 4 |
| HDMI in | 3 |
| Number of HDMI outputs | 1 |
| HDCP | Yes |
| HDCP version | 2.3 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Digital audio optical out | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (standby) | 2 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1404 mm |
| Depth | 136 mm |
| Height | 58 mm |
| Soundbar weight | 5.93 kg |
| Subwoofer width | 31.5 cm |
| Subwoofer depth | 27.5 cm |
| Subwoofer height | 27.7 cm |
| Subwoofer weight | 12 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of products included | 1 pc(s) |
| Wall mounting kit | Yes |
| Cables included | AC, HDMI |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1124 mm |
| Package depth | 452 mm |
| Package height | 381 mm |
| Package weight | 28.6 kg |
| Package type | Box |
