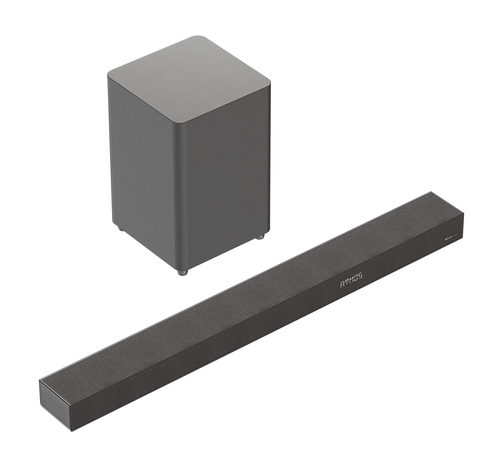

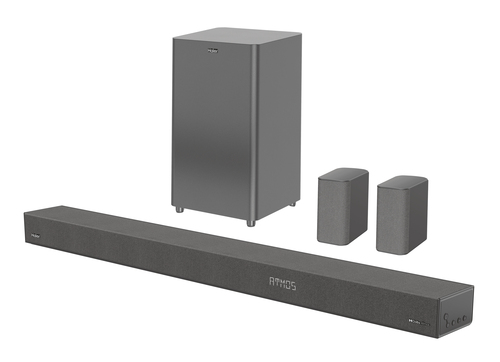

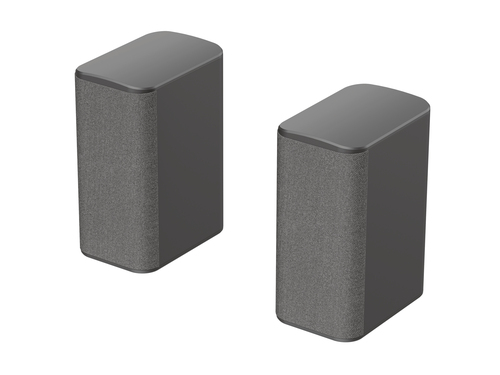

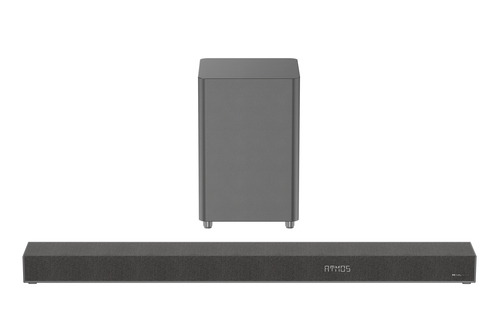

HSD512S6 5.1
Model HSD512S6 5.1Part no. 36200101EAN 8059019097848
78 specifications
- ConnectivityWired & Wireless
- ColourBlack, Grey
- Audio output channels5.1.2 channels
- Soundbar speaker RMS power180 W
- Subwoofer includedYes
- 3DNo
Overview
- Connectivity
- Wired & Wireless
- Colour
- Black, Grey
- Audio output channels
- 5.1.2 channels
- Soundbar speaker RMS power
- 180 W
- Subwoofer included
- Yes
- 3D
- No
- Brand
- Haier
- Category
- Soundbar Speakers
- Model
- HSD512S6 5.1
- Part number
- 36200101
- EAN / UPC
- 8059019097848
- Also known as
- Haier HSD512S6 5.1 Black, Grey 5.1.2 channels 360 W
Specifications
78 specifications in 11 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1.2 channels |
| RMS rated power | 360 W |
| Audio decoders | Dolby Atmos, Dolby Audio |
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| Enhanced Audio Return Channel (eARC) | Yes |
| Surround speaker RMS power | 60 W |
Soundbar speaker
| Specification | Value |
|---|---|
| Soundbar speaker RMS power | 180 W |
| Number of speakers | 6 |
| Number of mid-range drivers | 2 |
| Number of full-range drivers | 2 |
| Mid-range driver diameter (imperial) | 5.08 cm (2") |
| Full-range driver diameter (imperial) | 5.08 cm (2") |
Subwoofer
| Specification | Value |
|---|---|
| Subwoofer included | Yes |
| Subwoofer connectivity | Wireless |
| Subwoofer type | Passive subwoofer |
| Subwoofer RMS power | 120 W |
| Subwoofer frequency range | 40 - 120 Hz |
| Subwoofer impedance | 74 Ω |
| Woofer diameter (subwoofer) | 20.3 cm (8") |
Features
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| FM radio | No |
| Smartphone/tablet remote support | Yes |
| Supported radio bands | Not supported |
| Wall mountable | Yes |
Technical details
| Specification | Value |
|---|---|
| 3D | No |
| Compliance certificates | CB, CE |
| Video formats supported | AVI, DIVX, MKV, MP4 |
| Surround speaker driver size | 5.08 cm (2") |
| Surround speaker frequency range | 120 - 20000 Hz |
| Warranty period | 2 year(s) |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi | No |
| Ethernet LAN | No |
| HDMI ports quantity | 3 |
| USB port | Yes |
| Composite video in | 0 |
| Card reader integrated | No |
| Digital audio coaxial in | 0 |
| Compatible memory cards | Not supported |
| Digital audio coaxial out | 1 |
| Digital audio optical in | 0 |
| AUX in | Yes |
| Digital audio optical out | 1 |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| Soundbar power consumption | 180 W |
| Subwoofer power consumption | 120 W |
| Power consumption (typical) | 360 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 984 mm |
| Depth | 102 mm |
| Height | 67 mm |
| Soundbar weight | 5.2 kg |
| Subwoofer width | 24 cm |
| Subwoofer depth | 24 cm |
| Subwoofer height | 42 cm |
| Subwoofer weight | 3.5 kg |
| Cord length | 1.5 m |
| Rear speaker width | 7.1 cm |
| Rear speaker depth | 10.8 cm |
| Rear speaker height | 15 cm |
| Rear speaker weight | 500 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, HDMI |
| Mounting brackets included | Yes |
| Remote control included | Yes |
| Batteries included | Yes |
| Quick start guide | Yes |
| Warranty card | Yes |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1160 mm |
| Package depth | 520 mm |
| Package height | 290 mm |
| Package weight | 14.2 kg |
Other features
| Specification | Value |
|---|---|
| Frequency range | 120 - 20000 Hz |
| Optical disc player type | Not included |
| Soundbar speaker housing material | Metal/Plastic |
| AC adapter included | Yes |
| Digital Living Network Alliance (DLNA) certified | No |
