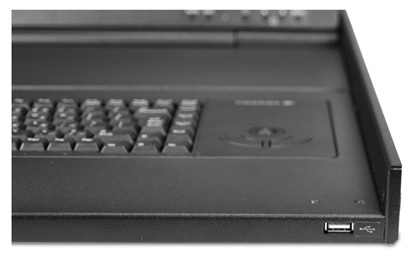

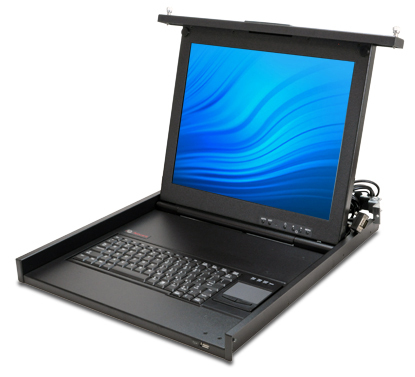

Avocent ECS17KMM8-204 rack console
43.2 cm (17") 1280 x 1024 pixels Black
Model ECS17KMM8-204EAN 636430063621
21 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight14.5 kg
- ColourBlack
- Height (in Rack Units)1
- I/O portsPS/2, USB, VGA
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 14.5 kg
- Colour
- Black
- Height (in Rack Units)
- 1
- I/O ports
- PS/2, USB, VGA
- Brand
- Vertiv
- Category
- Rack Console
- Model
- ECS17KMM8-204
- Part number
- ECS17KMM8-204
- EAN / UPC
- 636430063621
- Also known as
- Vertiv Avocent ECS17KMM8-204 rack console 43.2 cm (17") 1280 x 1024 pixels Black
Specifications
21 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Height (in Rack Units) | 1 |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | PS/2, USB, VGA |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 24 W |
| AC adapter input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Height | 44 mm |
| Depth | 651 mm |
| Weight | 14.5 kg |
