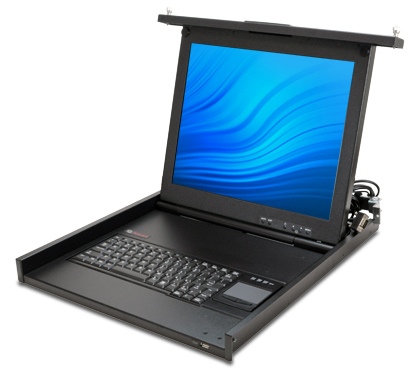

Avocent ECS17KMM8 rack console
43.2 cm (17") 1280 x 1024 pixels Black 1U
Model ECS17KMM8Part no. ECS17KMM8-202EAN 636430063614
25 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ConnectivityUSB, VGA
- Weight14.5 kg
- ColourBlack
- Rack capacity1U
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Connectivity
- USB, VGA
- Weight
- 14.5 kg
- Colour
- Black
- Rack capacity
- 1U
- Brand
- Vertiv
- Category
- Rack Console
- Model
- ECS17KMM8
- Part numbers
- ECS17KMM8-202, ECS17KMM8-215
- EAN / UPC
- 636430063614, 636430064345
- Also known as
- Vertiv Avocent ECS17KMM8 rack console 43.2 cm (17") 1280 x 1024 pixels Black 1U
Specifications
25 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Built-in KVM switch | Yes |
| KVM switch ports quantity | 8 |
| Maximum resolution | 1600 x 1200 pixels |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB, VGA |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power consumption (typical) | 24 W |
| AC adapter input voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Certification | LCD: RoHs, China RoHs, UL, Ulc, CB, CE, FCC/EMC, BSMI, KCC, GOST, CCC, VCCI, CTICK KVM: UL, Ulc, CE, FCC/EMC, GOST, VCCI, CTICK, MIC, ICES-003 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Height | 43 mm |
| Depth | 545 mm |
| Weight | 14.5 kg |
