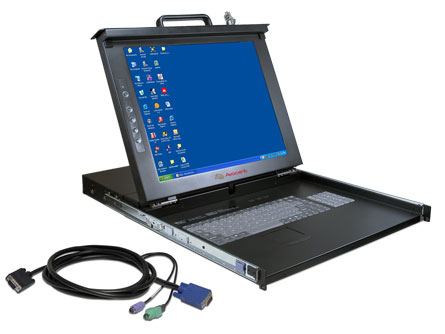

1U 17” single rail LCD rack console
Model 1U 17” single rail LCD rack consolePart no. LCD17SWT8-206EAN 636430043609
11 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight13 kg
- Height (in Rack Units)1
- AC adapter input voltage100 - 240 V
- Operating temperature (T-T)0 - 50 °C
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 13 kg
- Height (in Rack Units)
- 1
- AC adapter input voltage
- 100 - 240 V
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Vertiv
- Category
- Rack Console
- Model
- 1U 17” single rail LCD rack console
- Part number
- LCD17SWT8-206
- EAN / UPC
- 636430043609
- Also known as
- Vertiv 1U 17” single rail LCD rack console 43.2 cm (17") 1280 x 1024 pixels
Specifications
11 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT |
| On Screen Display (OSD) | Yes |
Technical details
| Specification | Value |
|---|---|
| Height (in Rack Units) | 1 |
| Size (imperial) | 48.3 cm (19") |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 447.5 x 592.1 x 44 mm |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Certification | cUL, UL, CE, FCC, C-tick |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 13 kg |
