StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with
StarTech.com

Rackmount KVM Console HD 1080p - Single Port VGA KVM with

17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware -

Model RKCONS17HDEAN 065030872478

53 specifications
  • Display43.9 cm (17.3")
  • Resolution1920 x 1080 pixels
  • Weight11.2 kg
  • ColourBlack
  • Rack capacity1U
  • Video port typeVGA
See all specifications

Overview

Display
43.9 cm (17.3")
Resolution
1920 x 1080 pixels
Weight
11.2 kg
Colour
Black
Rack capacity
1U
Video port type
VGA
Brand
StarTech.com
Category
Rack Console
Model
RKCONS17HD
Part number
RKCONS17HD
EAN / UPC
065030872478
Also known as
StarTech.com Rackmount KVM Console HD 1080p - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables & Hardware -

Specifications

53 specifications in 11 groups

Display

Display diagonal43.9 cm (17.3")
Display resolution1920 x 1080 pixels
DisplayTFT LCD
Aspect ratio16:9
Colour depth6 bit
Contrast ratio (typical)800:1
Display brightness300 cd/m²
Display number of colours262144 colours
Display typeLCD
Pixel pitch0.1989 x 0.1989 mm
Viewing angle, horizontal170°
Viewing angle, vertical170°

Technical details

Rack capacity1U
MaterialSteel
Cable length1.8 m
Compliance certificatesRoHS
Daisy chainNo
LED indicatorsPower, Status
Mean time between failures (MTBF)50000 h
Operating relative humidity (H-H)10 - 80%
Product colourBlack
Rack mountingYes
Audio supportNo
IP controlNo

Ports & interfaces

Video port typeVGA

Keyboard

Built-in touchpadYes

Power

Power consumption (typical)13 W
AC adapter input voltage100 - 240 V
Input current1.5 A

Certificates

CertificationCE, FCC, PSE, UL, REACH

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width483 mm
Height565 mm
Depth43 mm
Weight11.2 kg
Mounting depth (min)51 cm
Mounting depth (max)85 cm

Packaging data

Package weight16 kg
Package width780 mm
Package depth616 mm
Package height191 mm

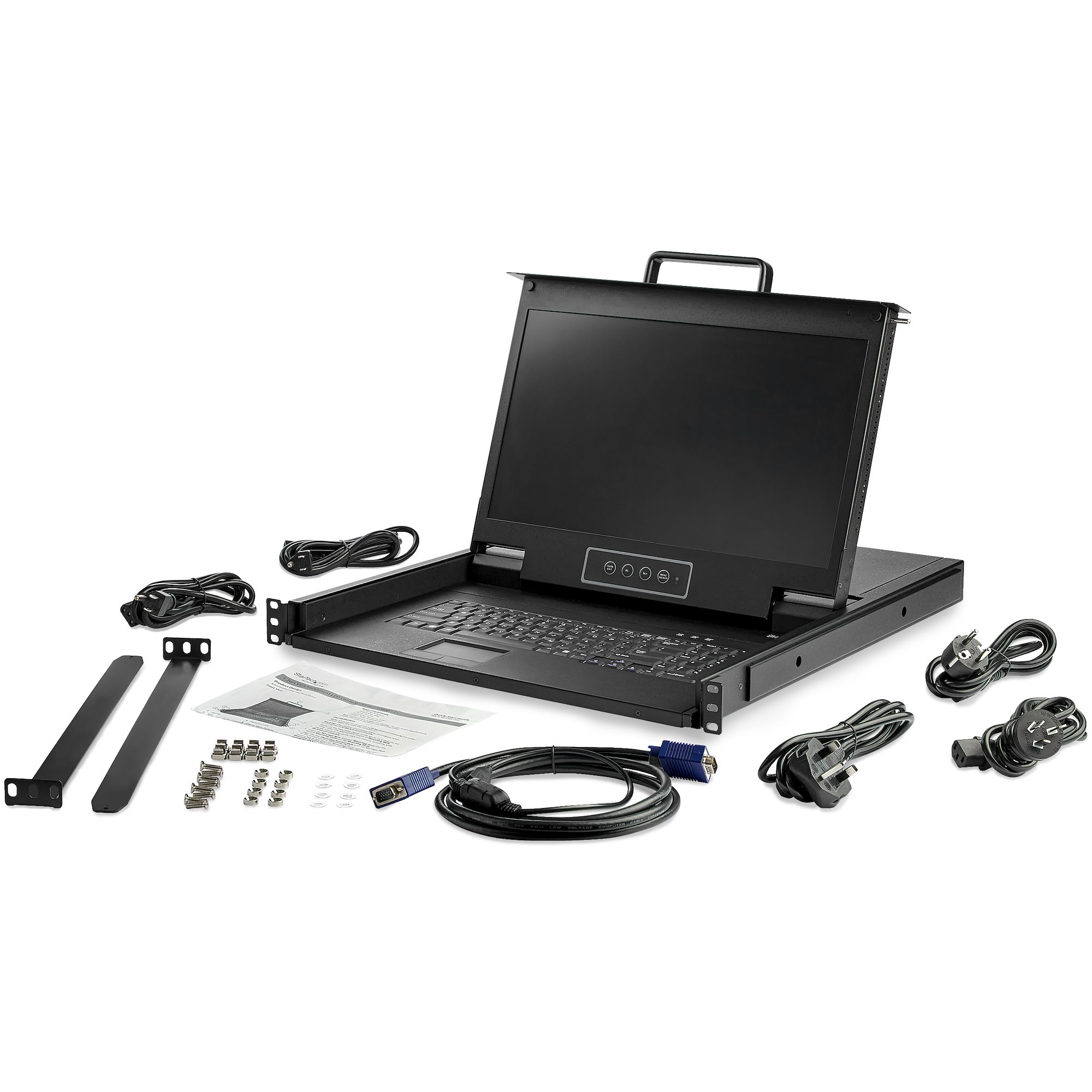

Packaging content

Cables includedKVM
Number of screws8
Screws includedYes
Cage nuts includedYes
Included power plug typesANZ, EU, JP, NA, UK
Number of cage nuts8
Quick installation guideYes

Logistics data

Master (outer) case width780 mm
Master (outer) case length616 mm
Master (outer) case height191 mm
Products per master (outer) case1 pc(s)
