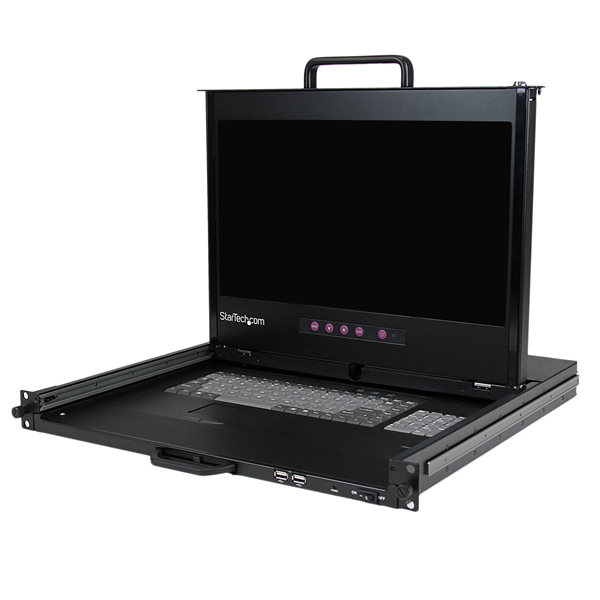

RKCOND17HDGB rack console
43.2 cm (17") 1U
Model RKCOND17HDGBEAN 065030854368
24 specifications
- Display43.2 cm (17")
- ConnectivityDVI-I, VGA, PS/2 x 2, USB x 2
- Weight10.2 kg
- Rack capacity1U
- Power consumption (typical)23.35 W
- Operating temperature (T-T)0 - 50 °C
Overview
- Display
- 43.2 cm (17")
- Connectivity
- DVI-I, VGA, PS/2 x 2, USB x 2
- Weight
- 10.2 kg
- Rack capacity
- 1U
- Power consumption (typical)
- 23.35 W
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- StarTech.com
- Category
- Rack Console
- Model
- RKCOND17HDGB
- Part number
- RKCOND17HDGB
- EAN / UPC
- 065030854368, 5054629409886
- Also known as
- StarTech.com RKCOND17HDGB rack console 43.2 cm (17") 1U
Specifications
24 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display | TFT LCD |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 650:1 |
| Display brightness | 300 cd/m² |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 120° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Built-in KVM switch | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 - 90% |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | DVI-I, VGA, PS/2 x 2, USB x 2 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 23.35 W |
| AC adapter input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Height | 44 mm |
| Depth | 465 mm |
| Weight | 10.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DVI, KVM, USB |
