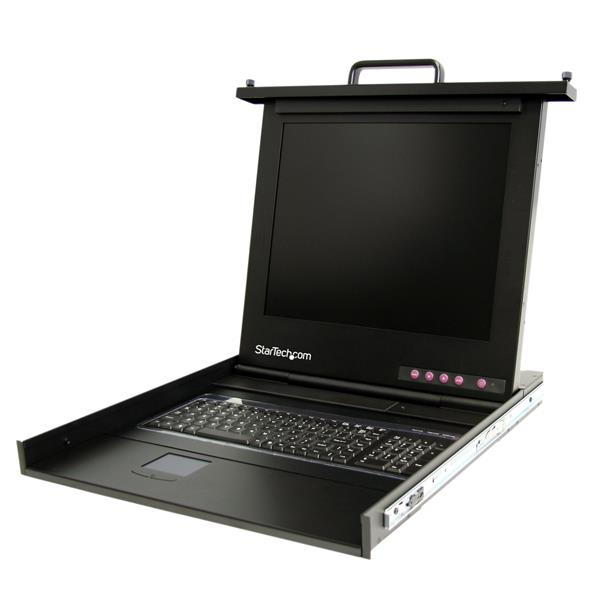

1U 17" Rackmount LCD Console – USB – Value Series
Model RACKCONV1701EAN 065030836791
17 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ConnectivityUSB
- Type1U
- Weight10.4 kg
- ColourBlack
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Connectivity
- USB
- Type
- 1U
- Weight
- 10.4 kg
- Colour
- Black
- Brand
- StarTech.com
- Category
- Rack Console
- Model
- RACKCONV1701
- Part number
- RACKCONV1701
- EAN / UPC
- 065030836791
- Also known as
- StarTech.com 1U 17" Rackmount LCD Console – USB – Value Series
Specifications
17 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT |
| Contrast ratio (typical) | 450:1 |
| Display number of colours | 16.78 million colours |
| Viewing angle, horizontal | 65° |
| Viewing angle, vertical | 45° |
Technical details
| Specification | Value |
|---|---|
| Form factor | 1U |
| Operating relative humidity (H-H) | 5 - 90% |
| Power requirements | 110 - 240 AC |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 477.6 x 509.2 x 43.7 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 10.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17.9 kg |
