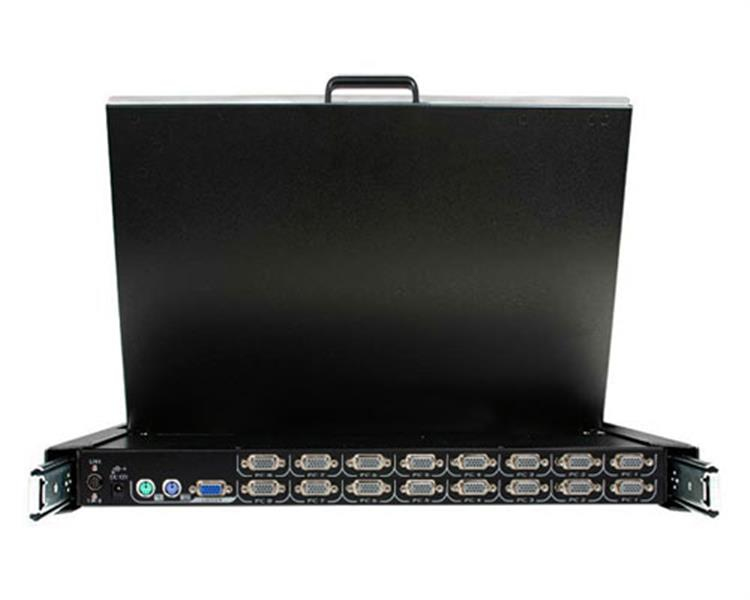

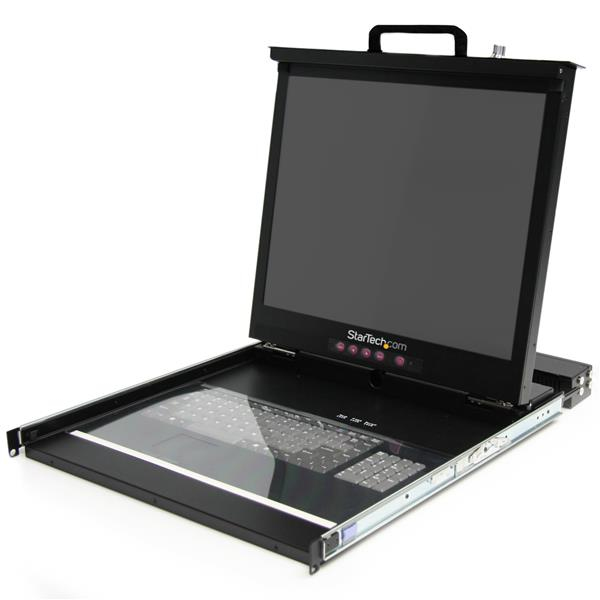

StarTech.com 1U 19" Rackmount LCD Console with 16 Port Multi-Platform KVM
StarTech.com

1U 19" Rackmount LCD Console with 16 Port Multi-Platform KVM

Model RACKCONS1916EAN 065030824279

47 specifications
  • Display48.3 cm (19")
  • Resolution1280 x 1024 pixels
  • Connectivity16 x VGA, 1 x Centronics
  • Weight12 kg
  • ColourBlack
  • Rack capacity1U
See all specifications

Overview

Display
48.3 cm (19")
Resolution
1280 x 1024 pixels
Connectivity
16 x VGA, 1 x Centronics
Weight
12 kg
Colour
Black
Rack capacity
1U
Brand
StarTech.com
Category
Rack Console
Model
RACKCONS1916
Part number
RACKCONS1916
EAN / UPC
065030824279, 163120562428
Also known as
StarTech.com 1U 19" Rackmount LCD Console with 16 Port Multi-Platform KVM

Specifications

47 specifications in 11 groups

Display

Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
Aspect ratio4:3
Contrast ratio (typical)1000:1
Display brightness250 cd/m²
Display number of colours16.78 million colours
Display typeLCD
On Screen Display (OSD)Yes
Pixel pitch0.294 x 0.294 mm
Response time5 ms
Viewing angle, horizontal176°
Viewing angle, vertical170°

Technical details

Rack capacity1U
MaterialSteel
Compliance certificatesRoHS
Console portVGA
Daisy chainYes
Key lockYes
Mean time between failures (MTBF)60000 h
Product colourBlack
Rack mountingYes
Audio supportNo

Ports & interfaces

Interface16 x VGA, 1 x Centronics
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
Video port typeVGA
DC-in jackYes

Keyboard

Hot keysYes

Power

Power consumption (typical)48 W
AC adapter input voltage115 - 230 V
AC adapter output voltage12 V
Output current4 A
Power plug typeType M

Other features

Dimensions (WxDxH)440 x 530 x 44 mm

Certificates

CertificationCE, FCC, UL

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)20 - 60 °C

Weight & dimensions

Width483 mm
Height45 mm
Depth695 mm
Weight12 kg
Mounting depth (min)65.5 cm
Mounting depth (max)80.2 cm

Packaging data

Package weight21 kg
Package dimensions (WxDxH)780 x 568 x 211 mm

Packaging content

AC adapter includedYes
Rack mount kitYes
