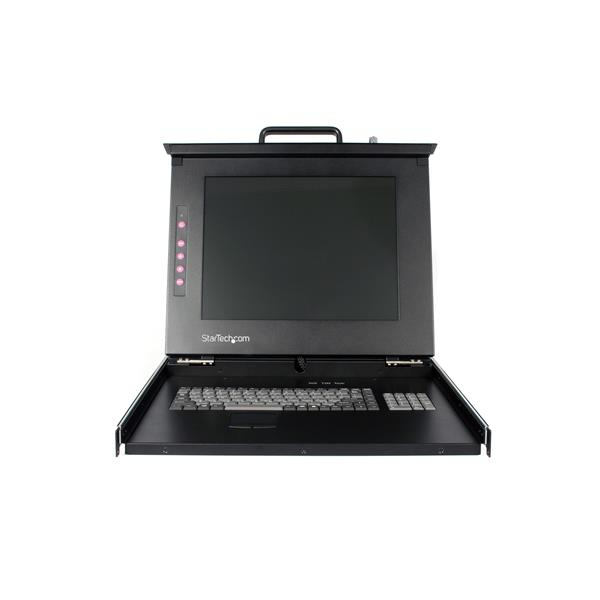

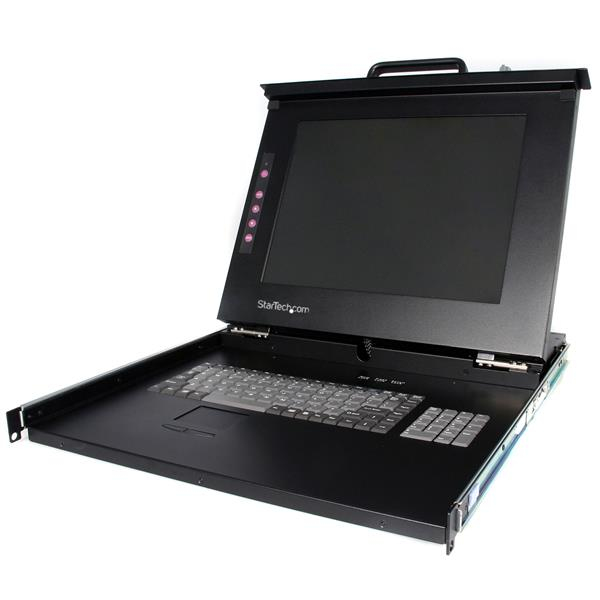

1U 15" Rackmount LCD Console - USB + PS/2
Model RACKCONS1501EAN 065030822183
43 specifications
- Display38.1 cm (15")
- Resolution1280 x 1024 pixels
- Weight11 kg
- ColourBlack
- MaterialSteel
- VGA (D-Sub) ports quantity1
Overview
- Display
- 38.1 cm (15")
- Resolution
- 1280 x 1024 pixels
- Weight
- 11 kg
- Colour
- Black
- Material
- Steel
- VGA (D-Sub) ports quantity
- 1
- Brand
- StarTech.com
- Category
- Rack Console
- Model
- RACKCONS1501
- Part number
- RACKCONS1501
- EAN / UPC
- 065030822183
- Also known as
- StarTech.com 1U 15" Rackmount LCD Console - USB + PS/2
Specifications
43 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 38.1 cm (15") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT LCD |
| Aspect ratio | 4:3 |
| Contrast ratio (typical) | 400:1 |
| Display brightness | 250 cd/m² |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.297 x 0.297 mm |
| Response time | 8 ms |
| Viewable size, horizontal | 13 cm |
| Viewable size, vertical | 10 cm |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 130° |
Technical details
| Specification | Value |
|---|---|
| Material | Steel |
| Compliance certificates | RoHS |
| Daisy chain | Yes |
| Key lock | Yes |
| Mean time between failures (MTBF) | 60000 h |
| Product colour | Black |
| Rack mounting | Yes |
| IP control | No |

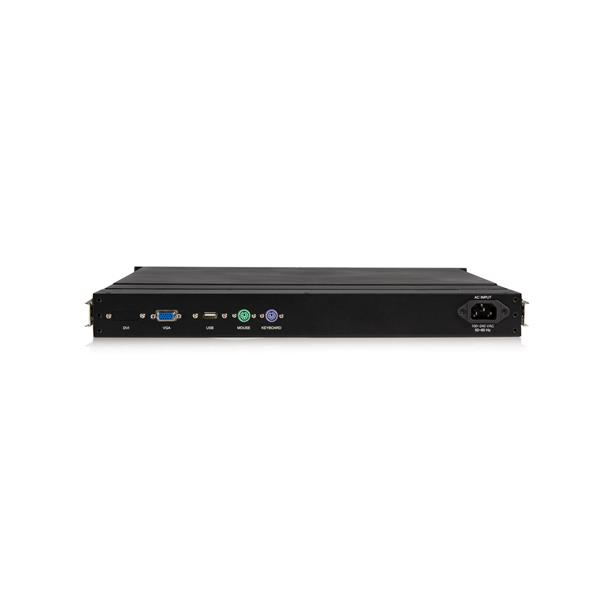

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 1 |

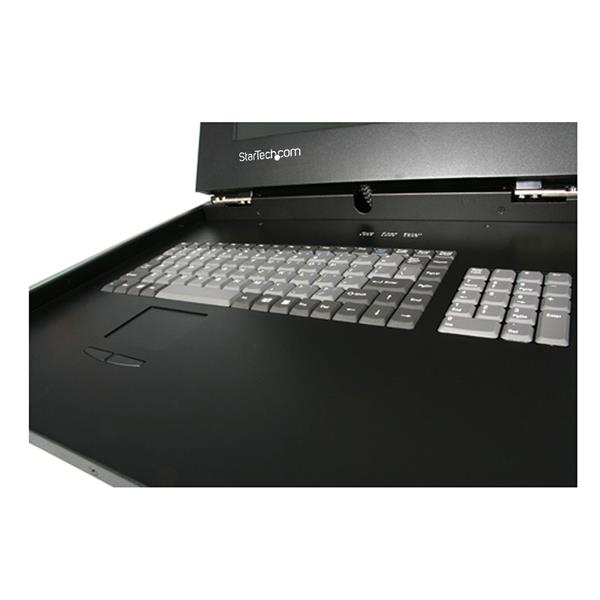

Keyboard
| Specification | Value |
|---|---|
| Keyboard number of keys | 106 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 16 W |
| AC adapter input voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, TAA, UL, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 481 mm |
| Height | 45 mm |
| Depth | 530 mm |
| Weight | 11 kg |
| Mounting depth (min) | 55 cm |
| Mounting depth (max) | 80 cm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.6 kg |
| Package width | 665 mm |
| Package depth | 568 mm |
| Package height | 210 mm |

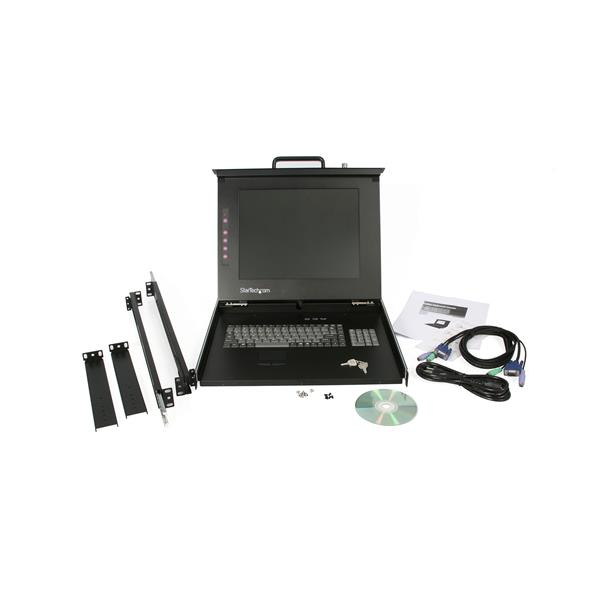

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
