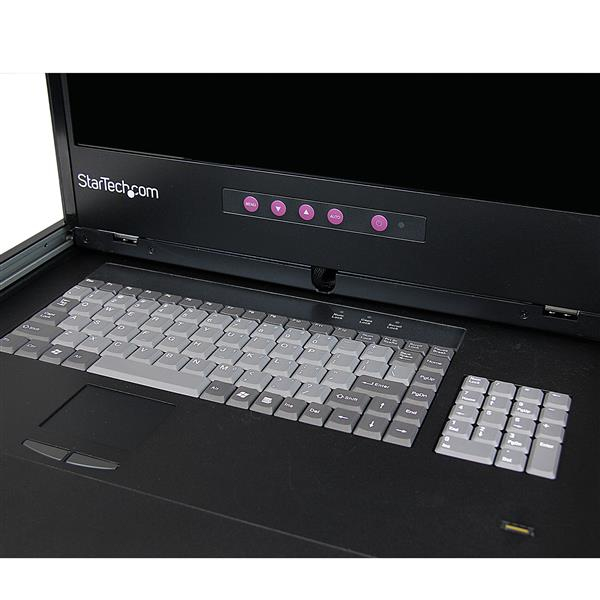

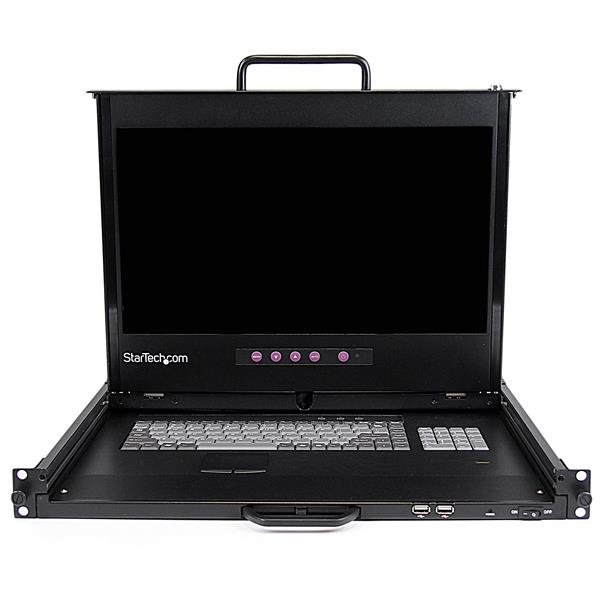

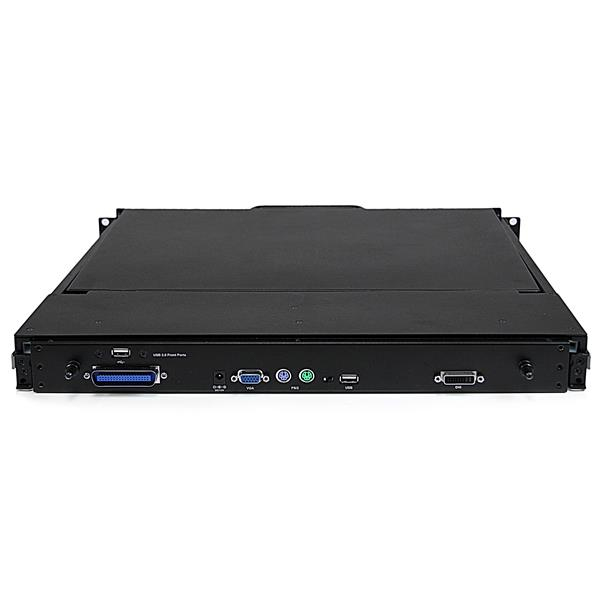

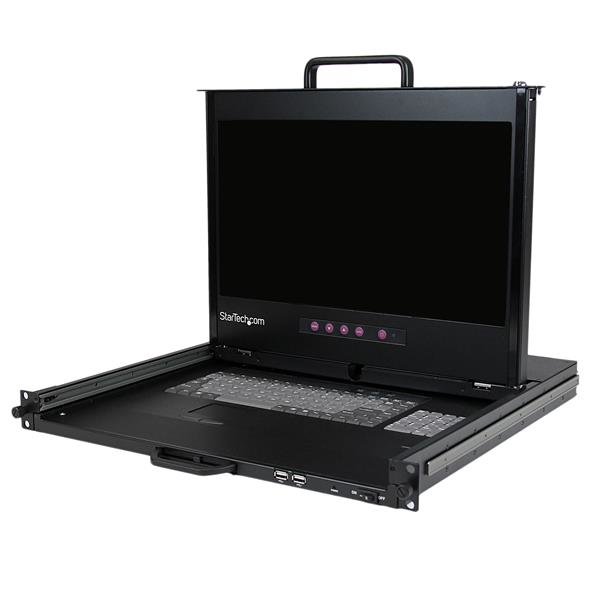

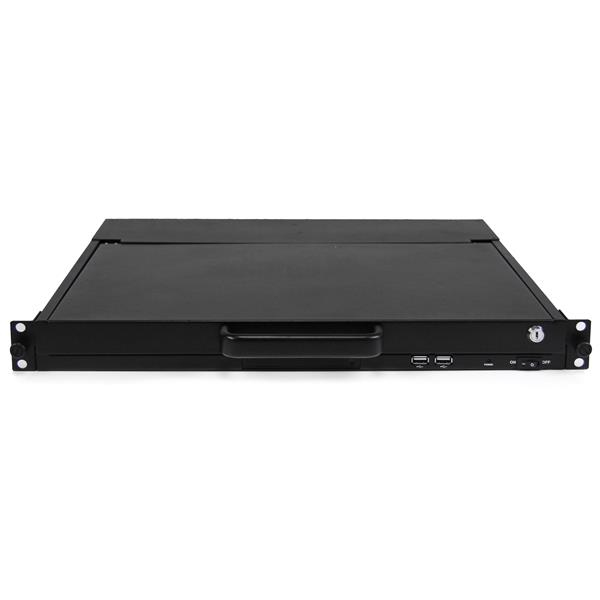

1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub
Model RACKCOND17HDEAN 065030852531
31 specifications
- Display43.2 cm (17")
- Resolution1920 x 1080 pixels
- ConnectivityUSB, PS/2, DVI, VGA
- Weight10.2 kg
- ColourBlack
- Rack capacity1U
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1920 x 1080 pixels
- Connectivity
- USB, PS/2, DVI, VGA
- Weight
- 10.2 kg
- Colour
- Black
- Rack capacity
- 1U
- Brand
- StarTech.com
- Category
- Rack Console
- Model
- RACKCOND17HD
- Part number
- RACKCOND17HD
- EAN / UPC
- 065030852531
- Also known as
- StarTech.com 1U 17" HD 1080p Dual Rail Rackmount LCD Console w/ Fingerprint Reader and Front USB Hub
Specifications
31 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1920 x 1080 pixels |
| Display | TFT LCD |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 650:1 |
| Display brightness | 300 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 120° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Steel |
| Compliance certificates | RoHS |
| Mean time between failures (MTBF) | 50000 h |
| Operating relative humidity (H-H) | 10 - 90% |
| Power requirements | 12VDC, 4.17A |
| Product colour | Black |
Ports & interfaces
| Specification | Value |
|---|---|
| Interface | USB, PS/2, DVI, VGA |
Power
| Specification | Value |
|---|---|
| Power supply type | DC |
| Power consumption (typical) | 23.35 W |
| AC adapter input voltage | 100 - 240 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Height | 44 mm |
| Depth | 465 mm |
| Weight | 10.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 16.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | DVI, KVM, USB |
