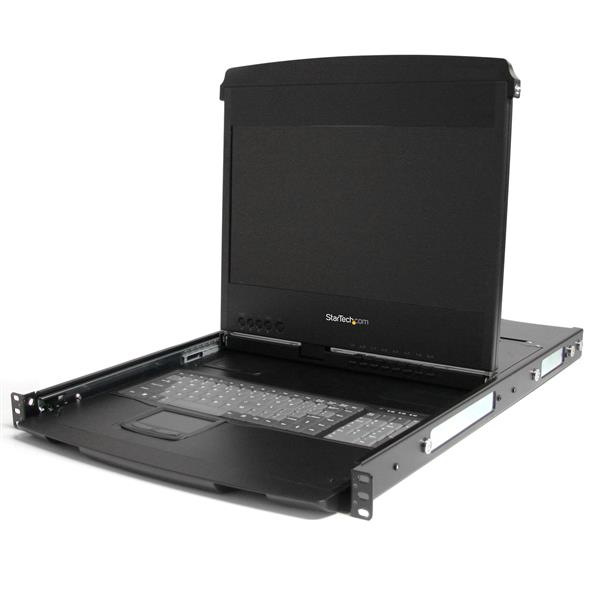

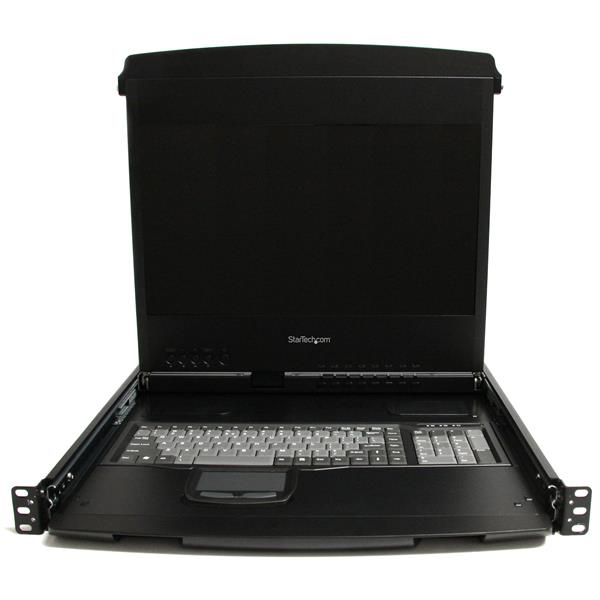

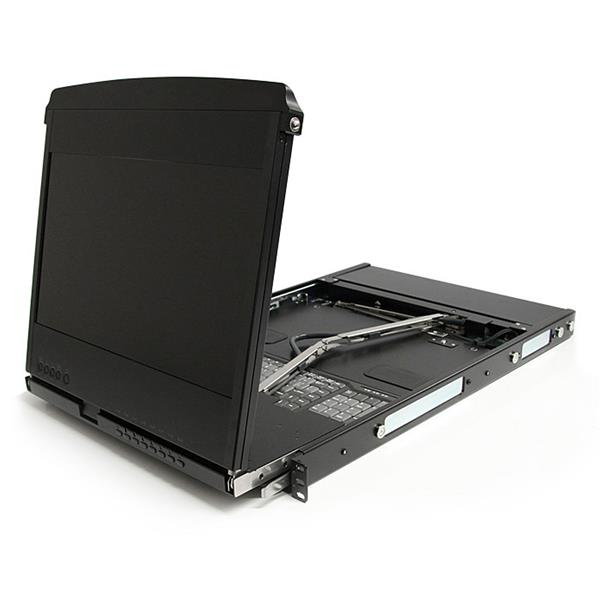

StarTech.com 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console
Model RACKCOND1701EAN 065030832533
48 specifications
- Display43.2 cm (17")
- Resolution1920 x 1080 pixels
- Weight15.6 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB, PS/2
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1920 x 1080 pixels
- Weight
- 15.6 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB, PS/2
- Brand
- StarTech.com
- Category
- Rack Console
- Model
- RACKCOND1701
- Part number
- RACKCOND1701
- EAN / UPC
- 065030832533, 763615964326, 4058829154684
- Also known as
- StarTech.com 1U 17” HD 1080p Dual Rail Rackmount Widescreen LCD Console
Specifications
48 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1920 x 1080 pixels |
| Display | TFT |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 500:1 |
| Display brightness | 300 cd/m² |
| Display type | LCD |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.199 x 0.199 mm |
| Response time | 8 ms |
| Viewing angle, horizontal | 140° |
| Viewing angle, vertical | 120° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Steel |
| Compliance certificates | RoHS |
| Key lock | No |
| Mean time between failures (MTBF) | 50000 h |
| Number of computers controlled | 1 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Audio support | No |
| IP control | No |

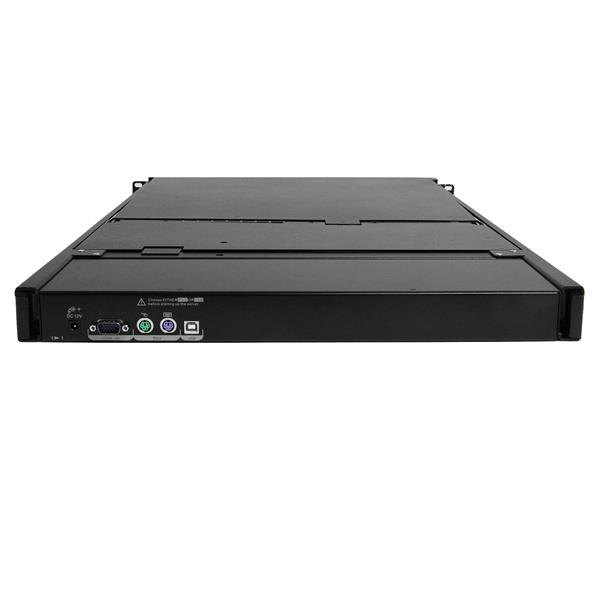

Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| DC-in jack | Yes |

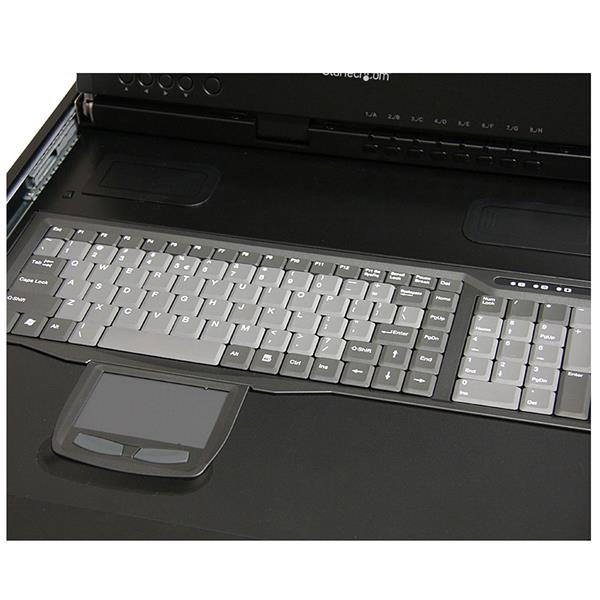

Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Keyboard language | US English |
| Keyboard number of keys | 106 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 16 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, UL |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 680 mm |
| Height | 43.8 mm |
| Depth | 480.8 mm |
| Weight | 15.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 22.9 kg |
| Package dimensions (WxDxH) | 543 x 812 x 203 mm |
| Package width | 543 mm |
| Package depth | 812 mm |
| Package height | 203 mm |

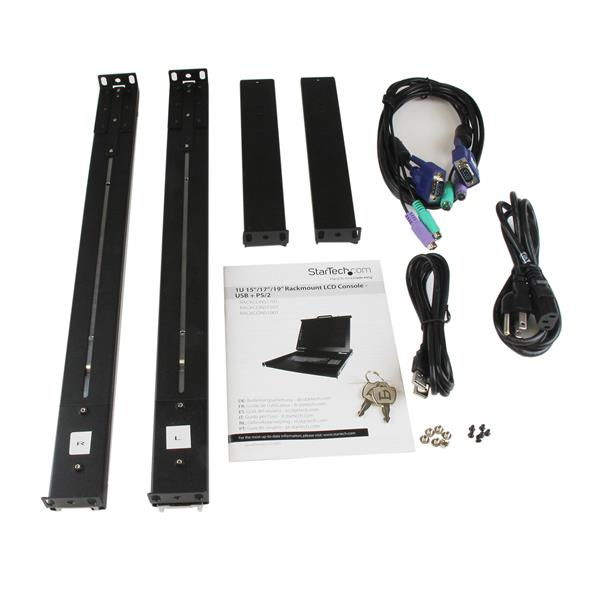

Packaging content
| Specification | Value |
|---|---|
| Screws included | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
