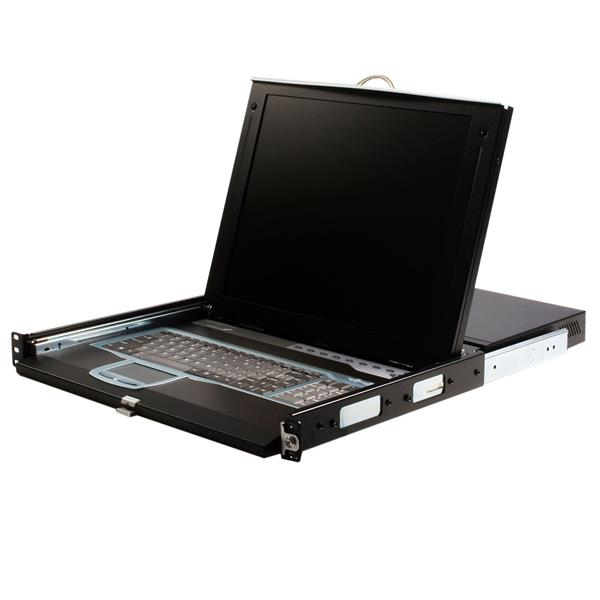

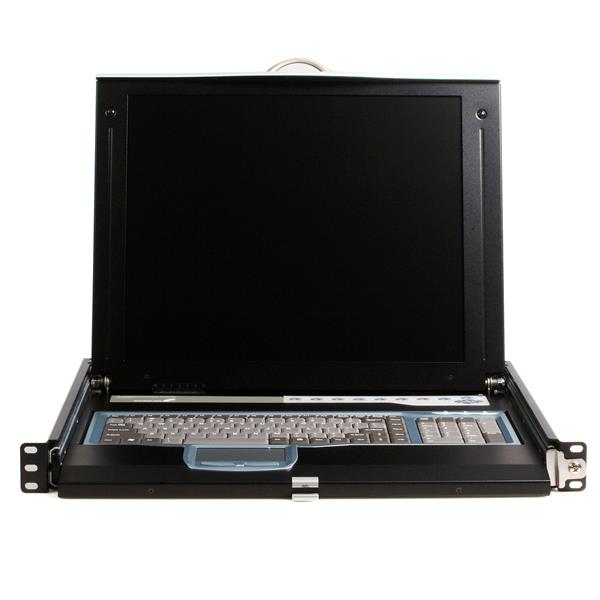

1U 17" Rackmount LCD Console with Integrated 16 Port IP KVM Switch
Model CABCONS1716IEAN 065030830492
41 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity16
- Power consumption (typical)48 W
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 16
- Power consumption (typical)
- 48 W
- Brand
- StarTech.com
- Category
- Rack Console
- Model
- CABCONS1716I
- Part number
- CABCONS1716I
- EAN / UPC
- 065030830492, 065030830942
- Also known as
- StarTech.com 1U 17" Rackmount LCD Console with Integrated 16 Port IP KVM Switch
Specifications
41 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT LCD |
| Aspect ratio | 4:3 |
| Colour depth | 24 bit |
| Contrast ratio (typical) | 500:1 |
| Display brightness | 350 cd/m² |
| Display number of colours | 16.78 million colours |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Steel |
| Compliance certificates | RoHS |
| Console port | VGA/PS2 |
| Daisy chain | Yes |
| Key lock | No |
| Mean time between failures (MTBF) | 445400 h |
| Plug and Play | Yes |
| Product colour | Black |
| Rack mounting | Yes |

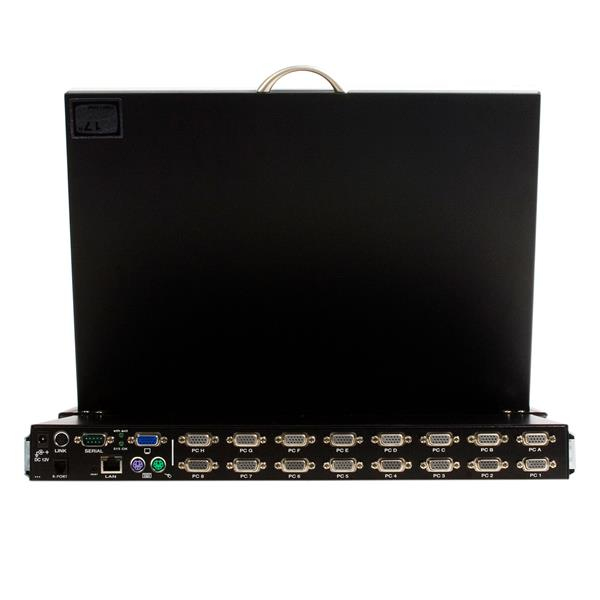

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 16 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 48 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter output voltage | 12 V |
| Input current | 1.8 A |
| Output current | 4 A |
| Power plug type | Type M |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, TAA, UL, REACH |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17.5 kg |
| Package width | 628 mm |
| Package depth | 550 mm |
| Package height | 202 mm |

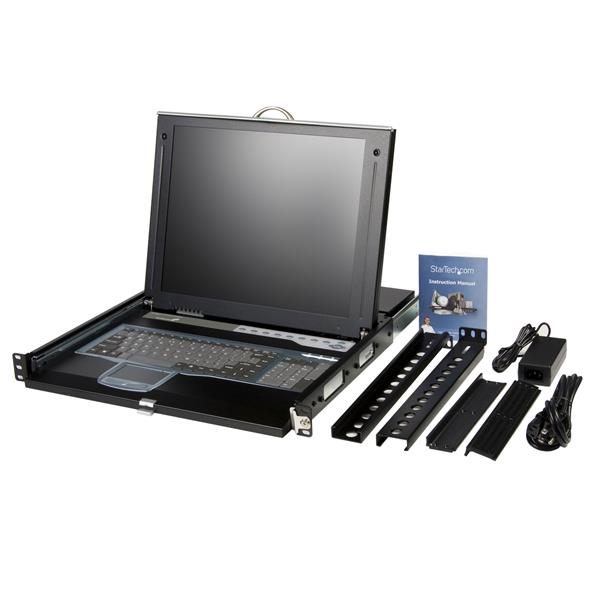

Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Mounting brackets included | Yes |
| AC adapter included | Yes |
