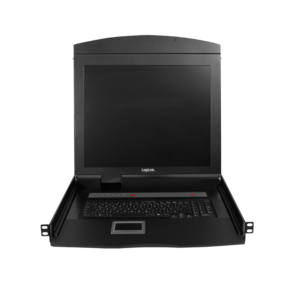

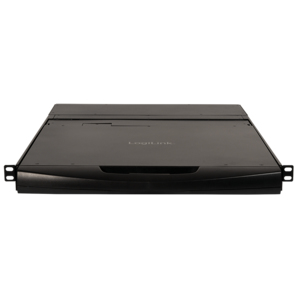

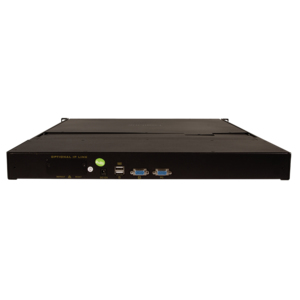

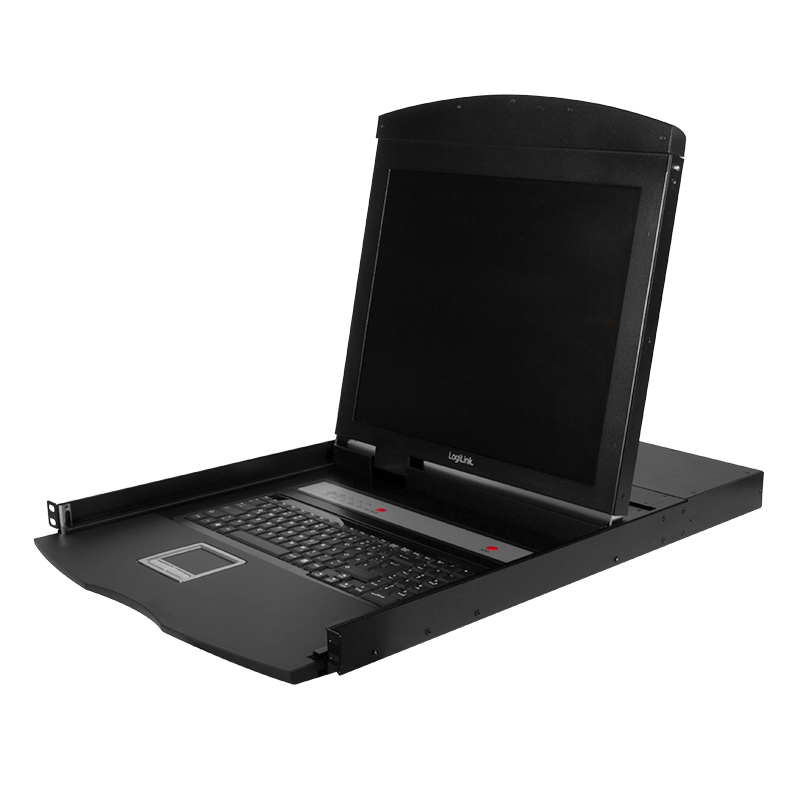

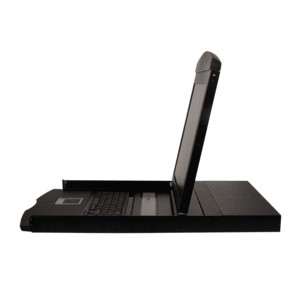

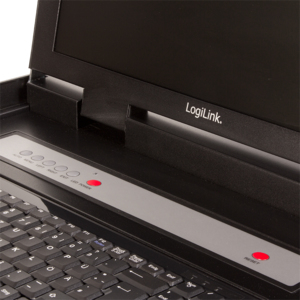

LC901GE rack console
48.3 cm (19") 1280 x 1024 pixels Metal Black 1U
Model LC901GEEAN 4052792028898
26 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Weight19.1 kg
- ColourBlack
- Rack capacity1U
- Built-in touchpadYes
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Weight
- 19.1 kg
- Colour
- Black
- Rack capacity
- 1U
- Built-in touchpad
- Yes
- Brand
- LogiLink
- Category
- Rack Console
- Model
- LC901GE
- Part number
- LC901GE
- EAN / UPC
- 4052792028898
- Also known as
- LogiLink LC901GE rack console 48.3 cm (19") 1280 x 1024 pixels Metal Black 1U
Specifications
26 specifications in 6 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | LCD |
| Contrast ratio (typical) | 1300:1 |
| Display brightness | 300 cd/m² |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Viewable size, horizontal | 37.6 cm |
| Viewable size, vertical | 30.1 cm |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal |
| Compliance certificates | RoHS |
| Maximum resolution | 1920 x 1080 pixels |
| Mean time between failures (MTBF) | 50000 h |
| Power requirements | 12VDC |
| Product colour | Black |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Keyboard language | German |
| Keyboard number of keys | 99 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 630 mm |
| Height | 42 mm |
| Depth | 450 mm |
| Weight | 19.1 kg |
