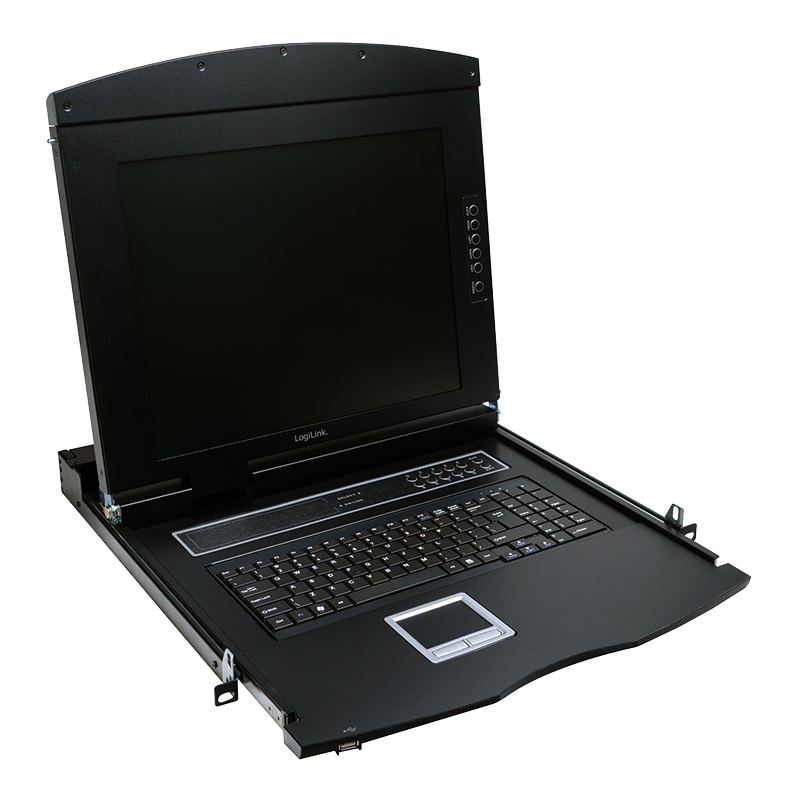

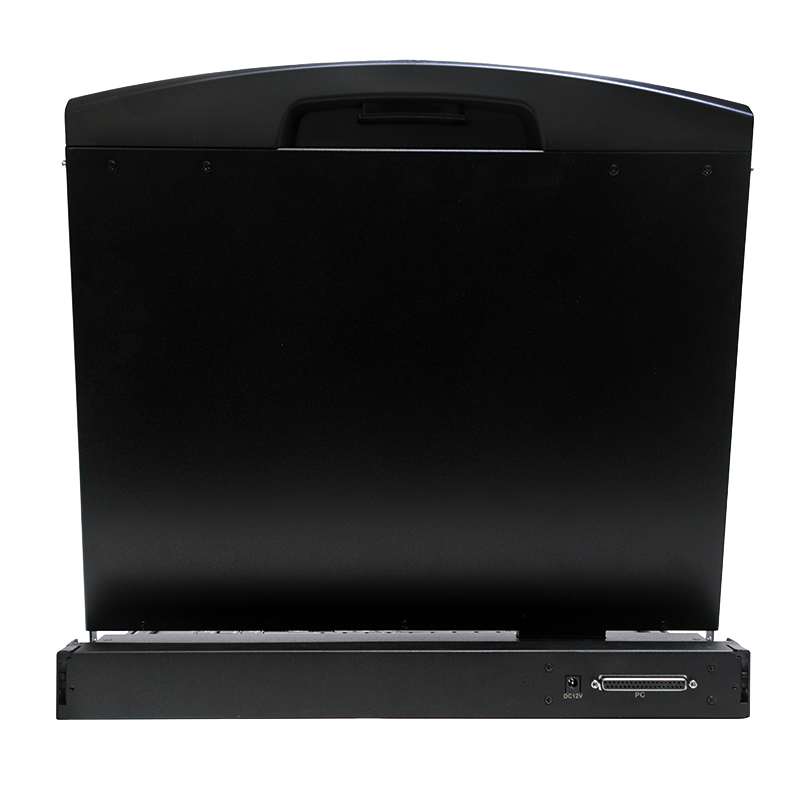

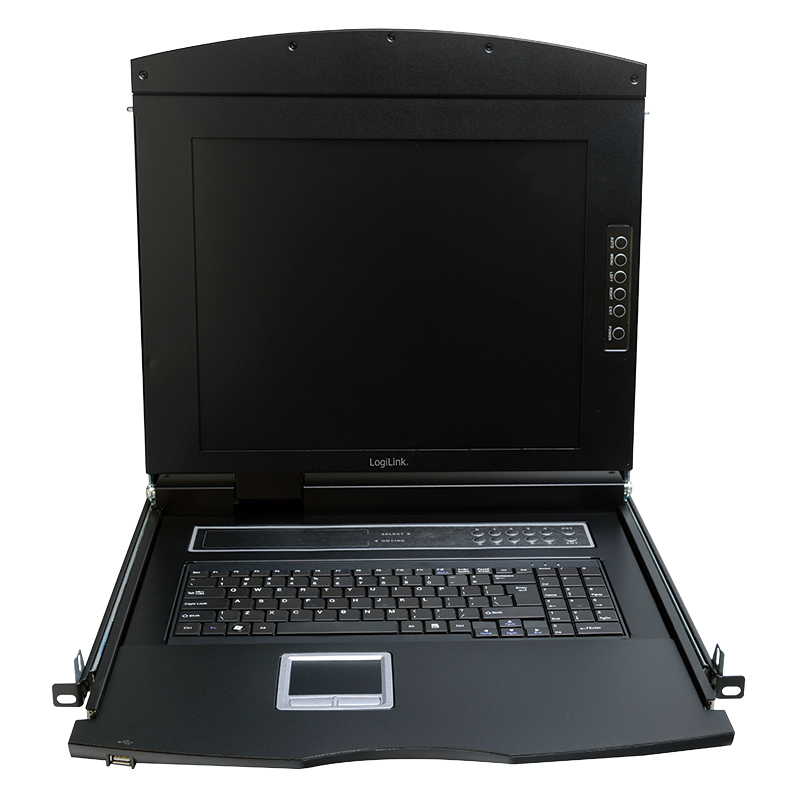

LC702GE rack console
43.2 cm (17") 1280 x 1024 pixels Metal Black 1U
Model LC702GEEAN 4052792045253
37 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Rack capacity1U
- Keyboard port typePS/2
- Keyboard languageGerman
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- PS/2
- Keyboard language
- German
- Brand
- LogiLink
- Category
- Rack Console
- Model
- LC702GE
- Part number
- LC702GE
- EAN / UPC
- 4052792045253
- Also known as
- LogiLink LC702GE rack console 43.2 cm (17") 1280 x 1024 pixels Metal Black 1U
Specifications
37 specifications in 12 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | TFT |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal |
| Compliance certificates | RoHS |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | PS/2 |
| Mouse port type | PS/2 |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | German |
| Keyboard number of keys | 100 |
Power
| Specification | Value |
|---|---|
| Power supply type | DC 12 V |
| AC adapter input voltage | 100-240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 95, Windows 98, Windows 98SE, Windows ME, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 407 mm |
| Height | 445 mm |
| Depth | 44 mm |
| Mounting depth (min) | 40 cm |
| Mounting depth (max) | 80 cm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 8.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| AC adapter included | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case gross weight | 14.2 kg |
