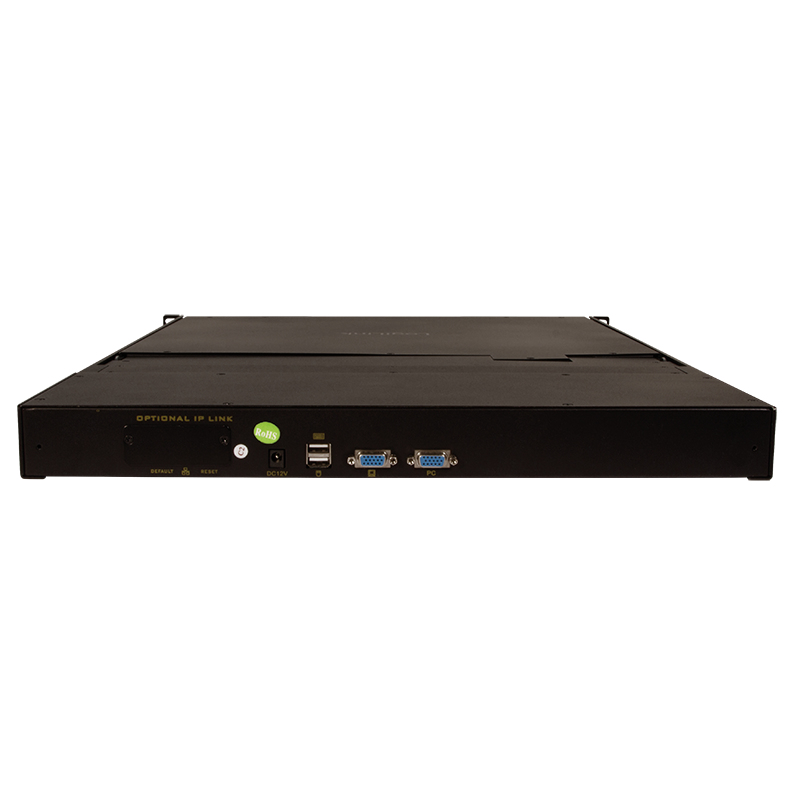

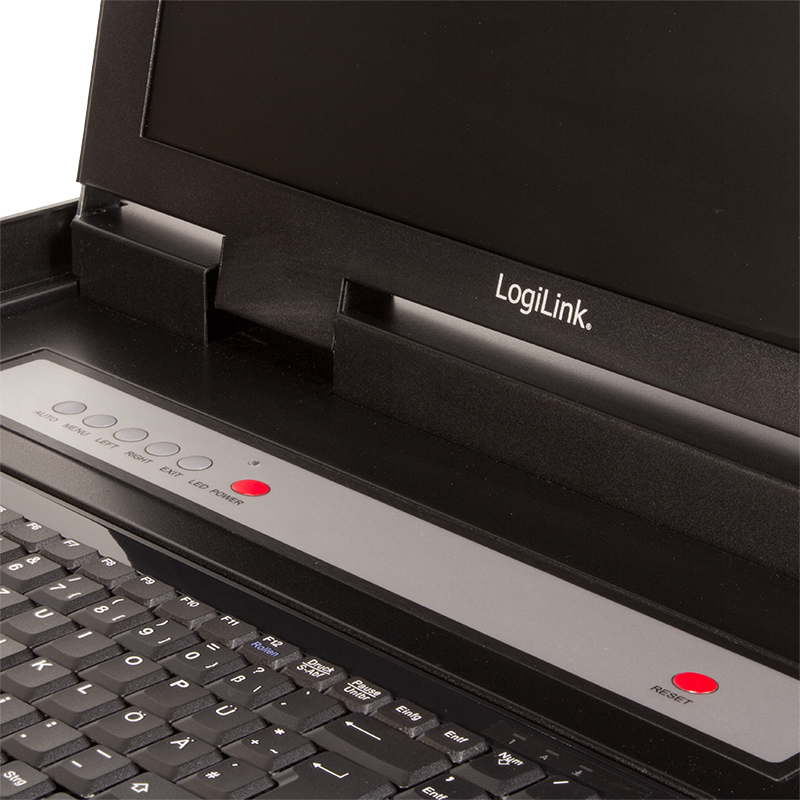

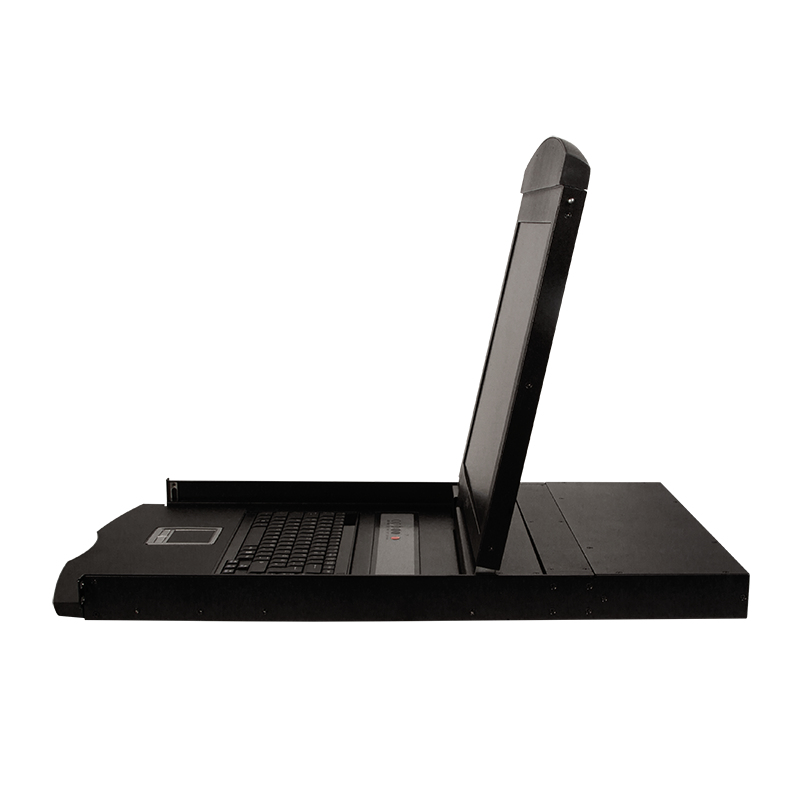

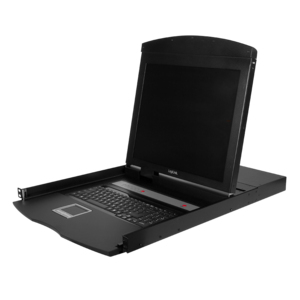

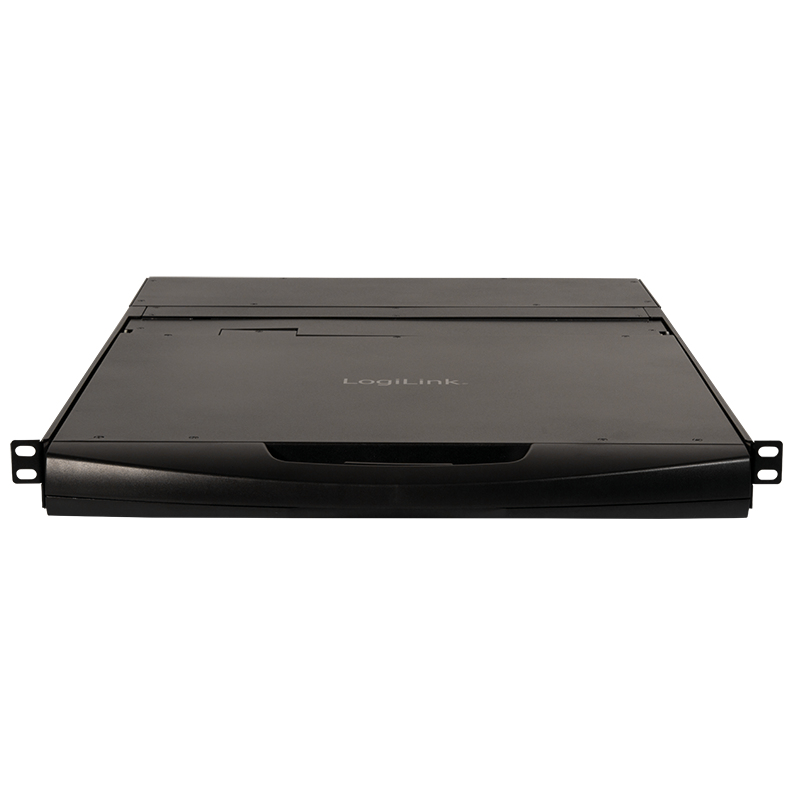

LC701US rack console
43.2 cm (17") 1280 x 1024 pixels Metal Black
Model LC701USEAN 4260113574881
41 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- MaterialMetal
- Keyboard port typeUSB, PS/2
- Built-in touchpadYes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Material
- Metal
- Keyboard port type
- USB, PS/2
- Built-in touchpad
- Yes
- Brand
- LogiLink
- Category
- Rack Console
- Model
- LC701US
- Part number
- LC701US
- EAN / UPC
- 4260113574881
- Also known as
- LogiLink LC701US rack console 43.2 cm (17") 1280 x 1024 pixels Metal Black
Specifications
41 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 300 cd/m² |
| Display number of colours | 16.194 million colours |
| Display type | LCD |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
| Viewable size, horizontal | 33.8 cm |
| Viewable size, vertical | 27 cm |
Technical details
| Specification | Value |
|---|---|
| Material | Metal |
| Compliance certificates | RoHS |
| Height (in Rack Units) | 1 |
| Keys operating life | 1 million characters |
| Maximum resolution | 1920 x 1080 pixels |
| Mean time between failures (MTBF) | 50000 h |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Keyboard language | English |
| Keyboard layout | QWERTY |
| Keyboard number of keys | 99 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC adapter input voltage | 100 - 230 V |
| AC adapter output voltage | 12 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 640 mm |
| Height | 42 mm |
| Depth | 443 mm |
| Mounting depth (min) | 60 cm |
| Mounting depth (max) | 120 cm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 21.4 kg |
| Package dimensions (WxDxH) | 210 x 260 x 62 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, PS/2, USB |
| Manual | Yes |
