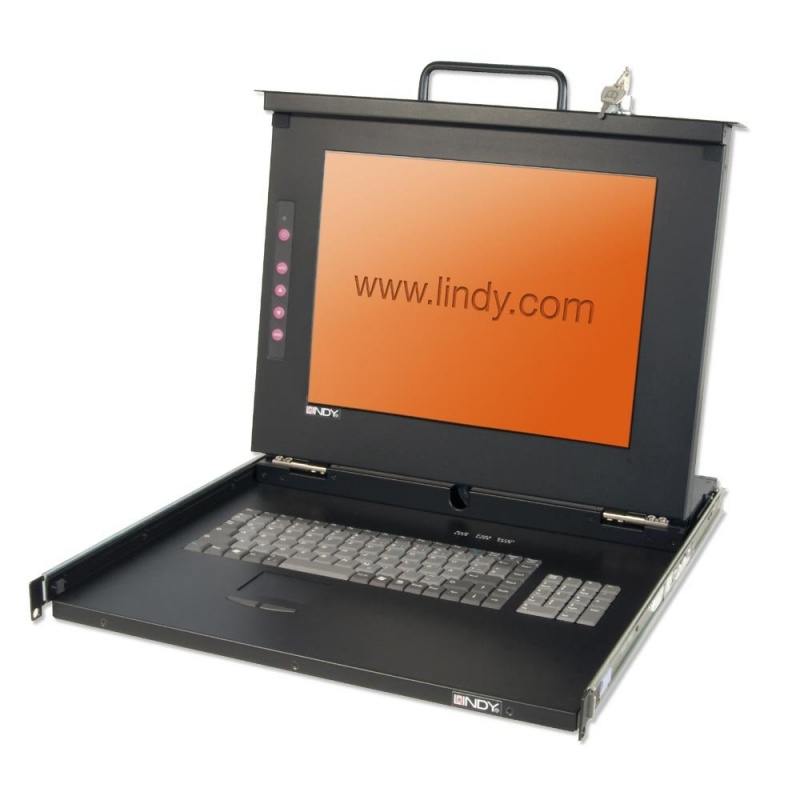

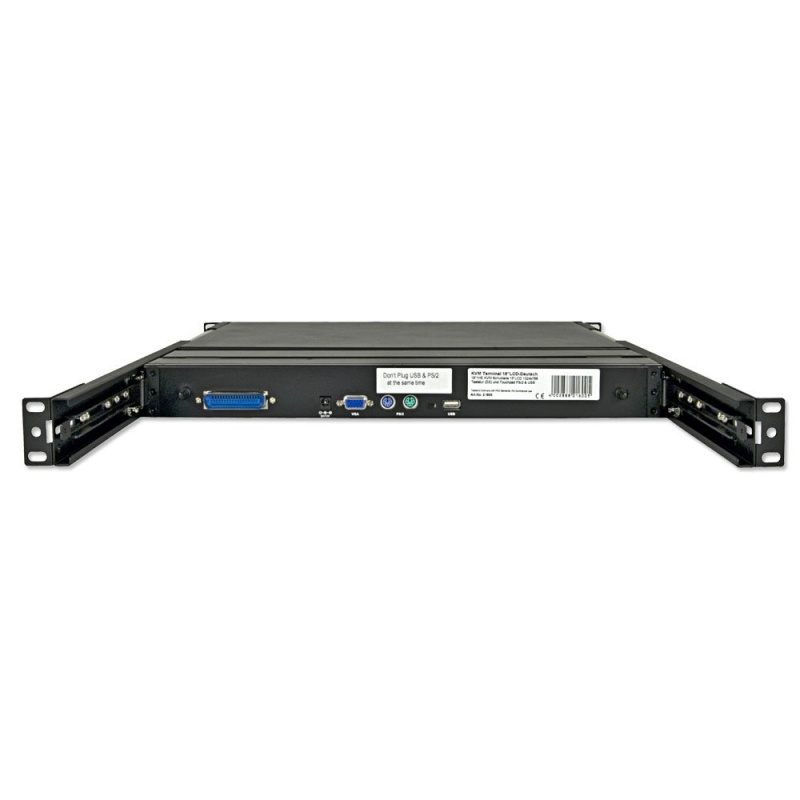

Lindy 21603 rack console

21603 rack console

38.1 cm (15") 1024 x 768 pixels Steel Black 1U

Model 21603EAN 4002888216036

33 specifications

Display38.1 cm (15")
Resolution1024 x 768 pixels
ConnectivityPS/2, USB, VGA
Weight12 kg
ColourBlack
Rack capacity1U

See all specifications

Overview

Display: 38.1 cm (15")
Resolution: 1024 x 768 pixels
Connectivity: PS/2, USB, VGA
Weight: 12 kg
Colour: Black
Rack capacity: 1U

Brand: Lindy
Category: Rack Console
Model: 21603
Part number: 21603
EAN / UPC: 4002888216036
Also known as: Lindy 21603 rack console 38.1 cm (15") 1024 x 768 pixels Steel Black 1U

Specifications

33 specifications in 10 groups

Display

Specification	Value
Display diagonal	38.1 cm (15")
Display resolution	1024 x 768 pixels
Display	TFT LCD
Contrast ratio (typical)	400:1
Display brightness	250 cd/m²
Display number of colours	16.78 million colours
On Screen Display (OSD)	Yes
Pixel pitch	0.297 x 0.297 mm
Viewing angle, horizontal	130°
Viewing angle, vertical	100°

Technical details

Specification	Value
Rack capacity	1U
Material	Steel
Built-in KVM switch	Yes
KVM switch ports quantity	1
Operating relative humidity (H-H)	10 - 90%
Product colour	Black

Ports & interfaces

Specification	Value
Interface	PS/2, USB, VGA

Keyboard

Specification	Value
Built-in touchpad	Yes
Keyboard language	English
Keyboard layout	QWERTY
Keyboard number of keys	106

Power

Specification	Value
Power consumption (typical)	16 W
AC adapter input voltage	100 - 240 V

Certificates

Specification	Value
Certification	CE / FCC, UL / CUL / C-Tick, GOST

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	470.1 mm
Height	44 mm
Depth	447.5 mm
Weight	12 kg

Packaging data

Specification	Value
Package weight	19.5 kg
Package dimensions (WxDxH)	606 x 551.5 x 230 mm

Packaging content

Specification	Value
Cables included	KVM, USB
