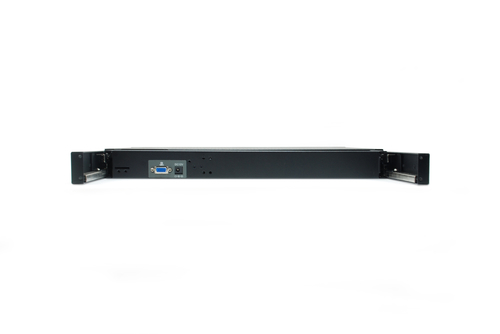

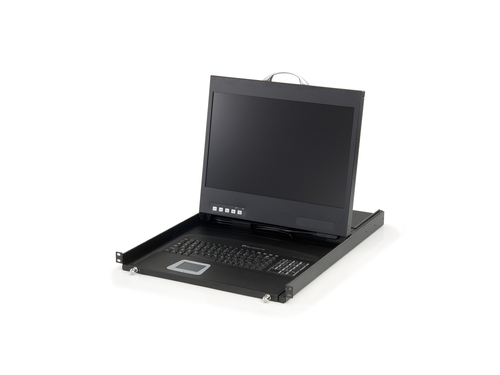

19" Widescreen LCD KVM Rack Console, ES Keyboard
Model KVM-8901ESEAN 4015867199497
47 specifications
- Display48.3 cm (19")
- Resolution1440 x 900 pixels
- Weight20 kg
- ColourBlack
- ButtonsAuto, Down, Menu, Up
- Keyboard port typePS/2
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1440 x 900 pixels
- Weight
- 20 kg
- Colour
- Black
- Buttons
- Auto, Down, Menu, Up
- Keyboard port type
- PS/2
- Brand
- LevelOne
- Category
- Rack Console
- Model
- KVM-8901ES
- Part number
- KVM-8901ES
- EAN / UPC
- 4015867199497
- Also known as
- LevelOne 19" Widescreen LCD KVM Rack Console, ES Keyboard
Specifications
47 specifications in 11 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1440 x 900 pixels |
| Display | TFT LCD |
| Aspect ratio | 16:10 |
| Contrast ratio (typical) | 500:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
| Viewing angle, horizontal | 85° |
| Viewing angle, vertical | 85° |
Technical details
| Specification | Value |
|---|---|
| Buttons | Auto, Down, Menu, Up |
| LED indicators | Yes |
| Mean time between failures (MTBF) | 50000 h |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Product colour | Black |
| Relative humidity | 10 - 90% |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | PS/2 |
| Video port type | VGA |
| DC-in jack | Yes |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Keyboard language | Spanish |
| Keyboard layout | QWERTY |
| Keyboard number of keys | 105 |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 19.2 W |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, Rohs, REACH |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 482 mm |
| Height | 44 mm |
| Depth | 610 mm |
| Weight | 20 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.3 kg |
| Package width | 742 mm |
| Package depth | 576 mm |
| Package height | 167 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Resource CD | Yes |
