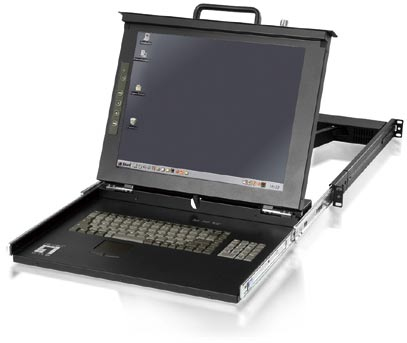

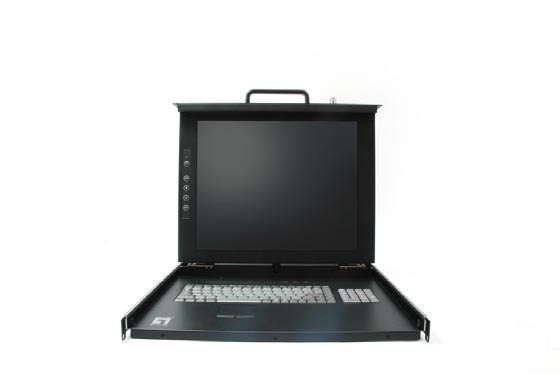

17" LCD Modular KVM Rack Console, German K/B
Model KVM-0217DEEAN 4015867139219
39 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB, PS/2
- Built-in touchpadYes
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB, PS/2
- Built-in touchpad
- Yes
- Brand
- LevelOne
- Category
- Rack Console
- Model
- KVM-0217DE
- Part number
- KVM-0217DE
- EAN / UPC
- 4015867139219
- Also known as
- LevelOne 17" LCD Modular KVM Rack Console, German K/B
Specifications
39 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display type | LCD |
| Number of OSD languages | 8 |
| On Screen Display (OSD) | Yes |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal |
| Daisy chain | Yes |
| Key lock | Yes |
| LED indicators | Yes |
| Number of computers controlled | 120 |
| Operating relative humidity (H-H) | 0 - 95% |
| Product colour | Black |
| Country of origin | Taiwan |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | German |
| Keyboard layout | QWERTZ |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Height | 45 mm |
| Depth | 445 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 17.6 kg |
| Package width | 560 mm |
| Package depth | 190 mm |
| Package height | 660 mm |
Packaging content
| Specification | Value |
|---|---|
| Keys quantity | 2 keys |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
