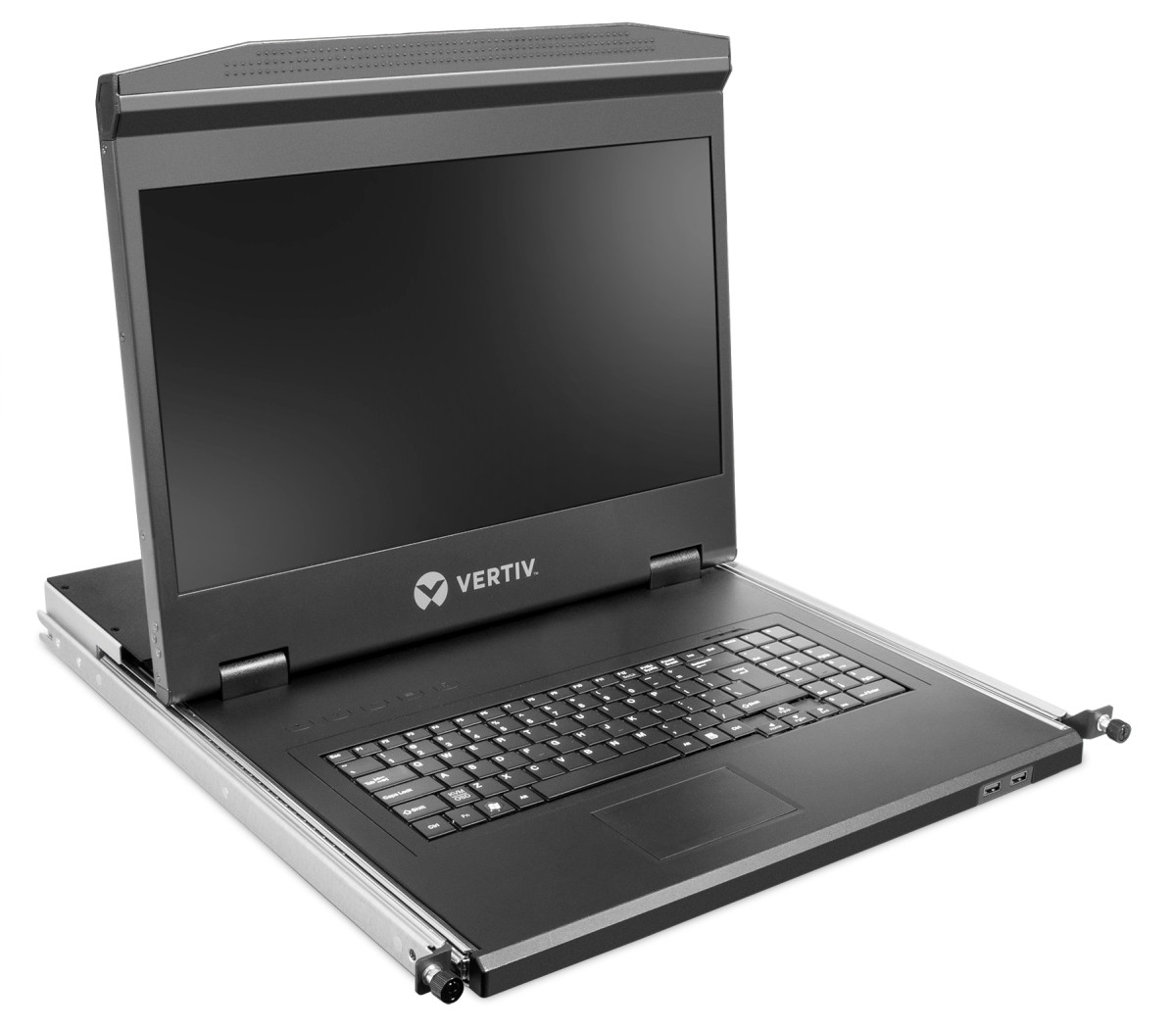

4XF7A73009 rack console
47 cm (18.5") 1920 x 1080 pixels Black
Model 4XF7A73009EAN 889488577002
27 specifications
- Display47 cm (18.5")
- Resolution1920 x 1080 pixels
- Type1U
- ColourBlack
- USB 2.0 Type-A ports quantity2
- Keyboard languageEnglish
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1920 x 1080 pixels
- Type
- 1U
- Colour
- Black
- USB 2.0 Type-A ports quantity
- 2
- Keyboard language
- English
- Brand
- Lenovo
- Category
- Rack Console
- Model
- 4XF7A73009
- Part number
- 4XF7A73009
- EAN / UPC
- 889488577002
- Also known as
- Lenovo 4XF7A73009 rack console 47 cm (18.5") 1920 x 1080 pixels Black
Specifications
27 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1920 x 1080 pixels |
| Aspect ratio | 16:9 |
| Display brightness | 250 cd/m² |
| Display type | LCD |
| Pixel pitch | 300 x 300 mm |
| Viewable size, horizontal | 41 cm |
| Viewable size, vertical | 23 cm |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 150° |
Technical details
| Specification | Value |
|---|---|
| Form factor | 1U |
| Built-in KVM switch | Yes |
| Cable length | 1.8 m |
| Operating temperature (T-T) | 0 - 50 °F |
| Product colour | Black |
| Rack mounting | Yes |
| Relative humidity | 10 - 80% |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 Type-A ports quantity | 2 |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | English |
| Keyboard layout | QWERTY |
| Keyboard number of keys | 100 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 22 W |
| AC adapter input voltage | 110 - 240 V |
| Power plug type | C14 coupler |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, USB, VGA |
