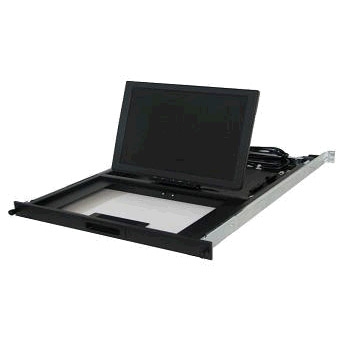

1U 17" Flat Panel console Kit w/ Optical Drive Bay
Model 1U 17" Flat Panel console Kit w/ Optical Drive BayPart no. 17231RX
17 specifications
- Display43.2 cm (17")
- Resolution1280 x 1024 pixels
- Weight12.3 kg
- Horizontal scan range30 - 80 kHz
- Height (in Rack Units)1
- I/O ports1 x D-sub 15-pin VGA
Overview
- Display
- 43.2 cm (17")
- Resolution
- 1280 x 1024 pixels
- Weight
- 12.3 kg
- Horizontal scan range
- 30 - 80 kHz
- Height (in Rack Units)
- 1
- I/O ports
- 1 x D-sub 15-pin VGA
- Brand
- Lenovo
- Category
- Rack Console
- Model
- 1U 17" Flat Panel console Kit w/ Optical Drive Bay
- Part number
- 17231RX
- Also known as
- Lenovo 1U 17" Flat Panel console Kit w/ Optical Drive Bay rack console 43.2 cm (17") 1280 x 1024 pixels
Specifications
17 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT |
| Contrast ratio (typical) | 350:1 |
| Display brightness | 270 cd/m² |
| Display number of colours | 16.78 million colours |
| Viewing angle, horizontal | 150° |
| Viewing angle, vertical | 125° |
Scanning frequency
| Specification | Value |
|---|---|
| Horizontal scan range | 30 - 80 kHz |
| Vertical scan range | 56 - 75 Hz |
Technical details
| Specification | Value |
|---|---|
| Height (in Rack Units) | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| I/O ports | 1 x D-sub 15-pin VGA |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 32 W |
| Power consumption (standby) | 3 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 483 x 711 x 43 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 12.3 kg |
