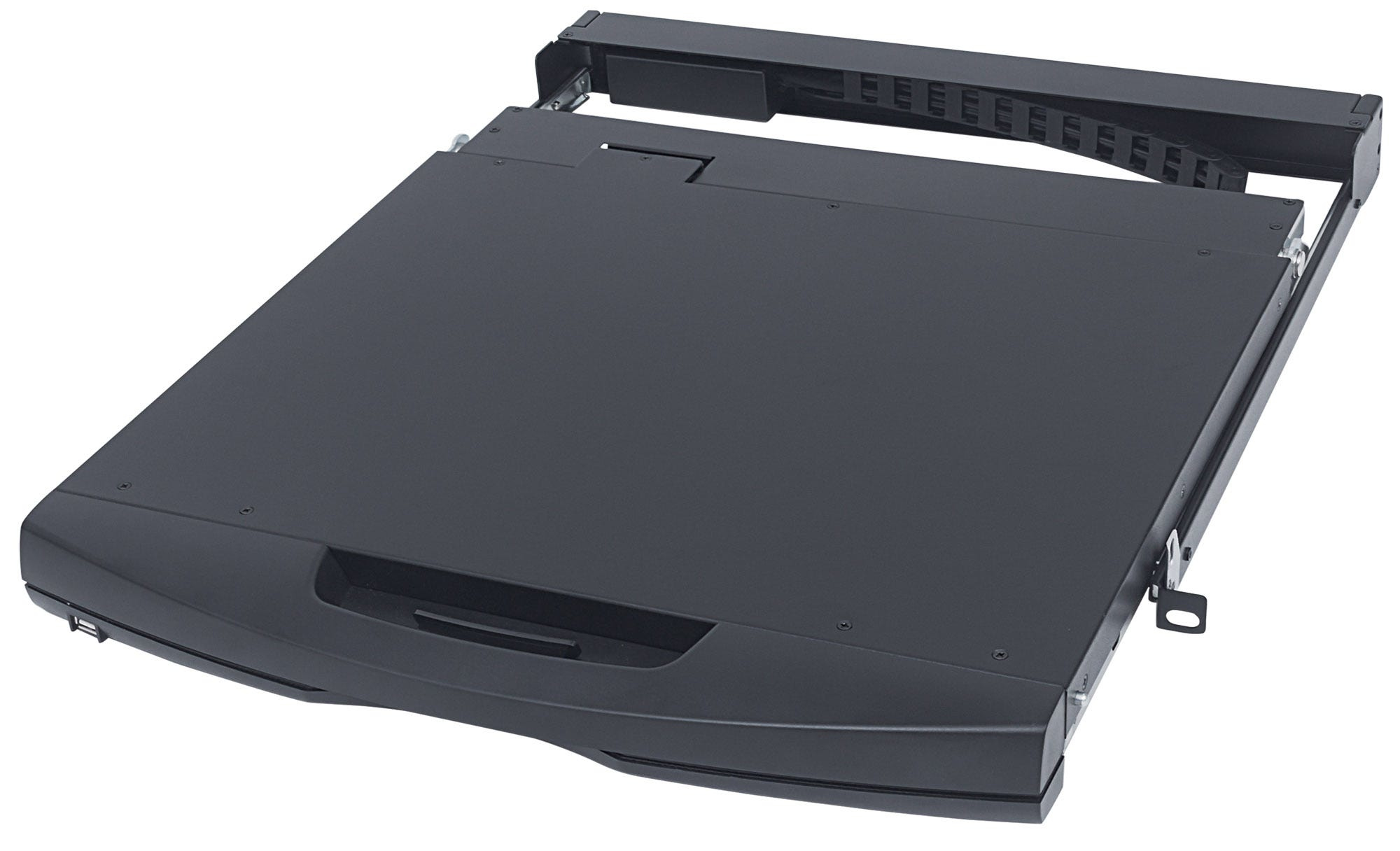

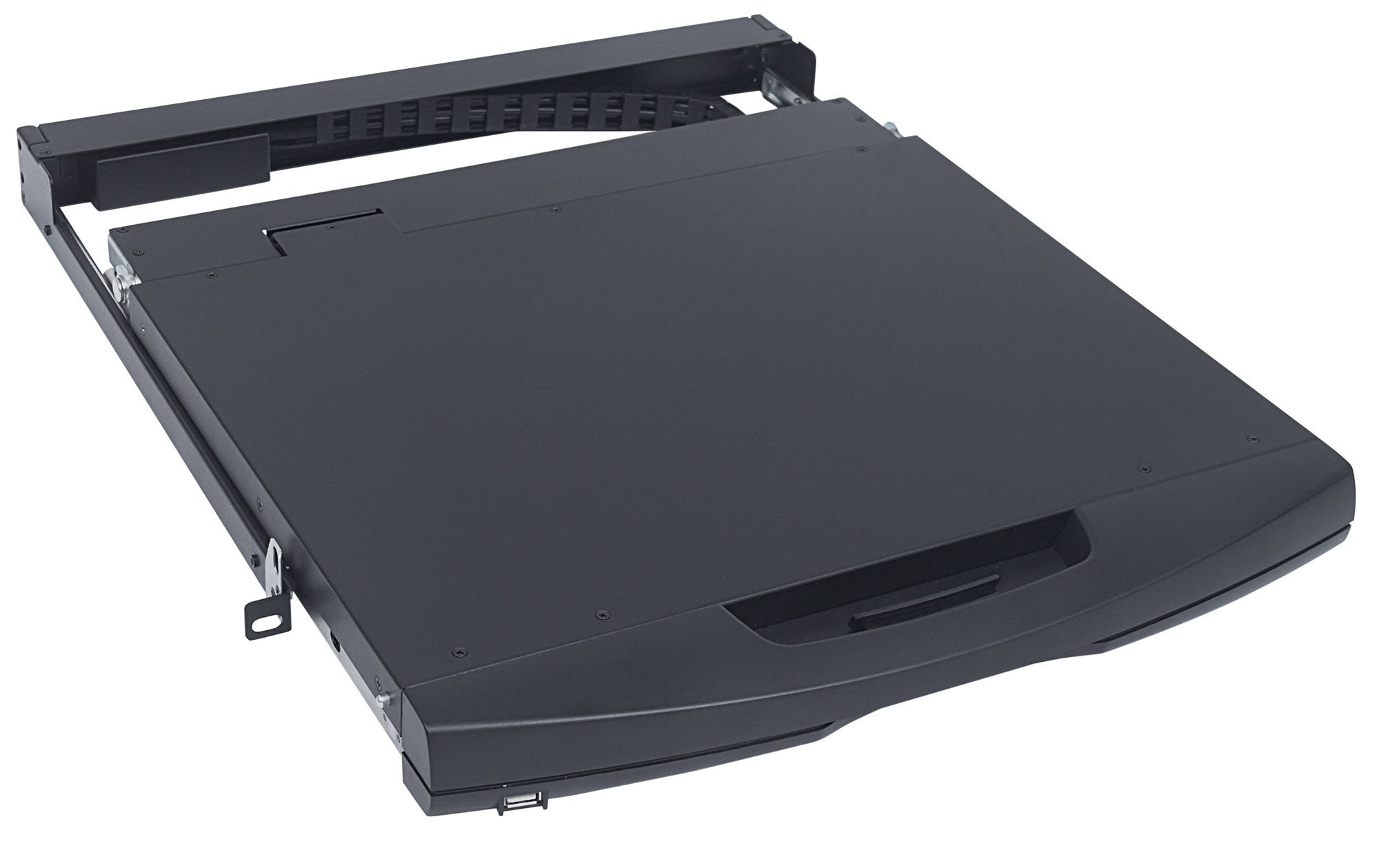

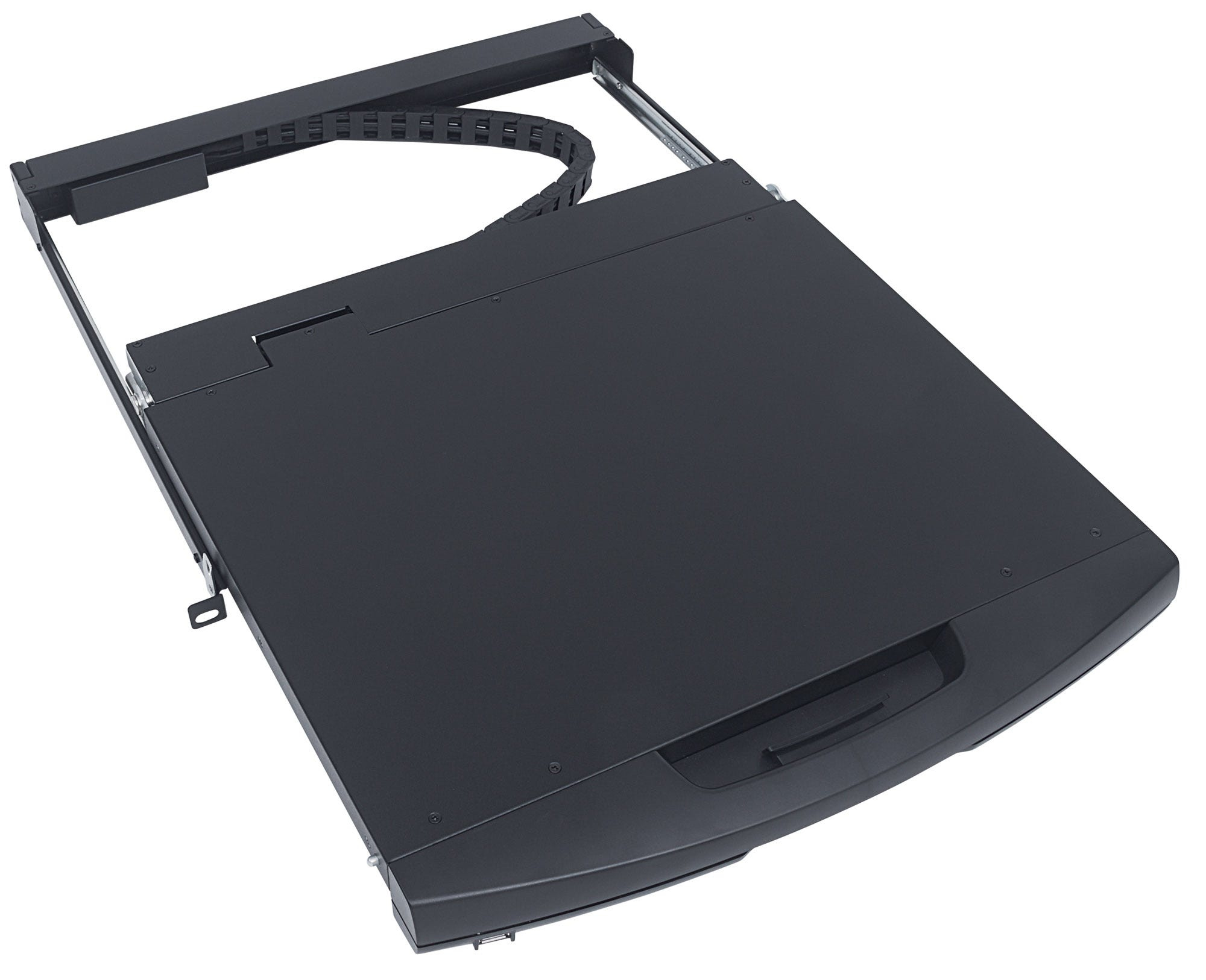

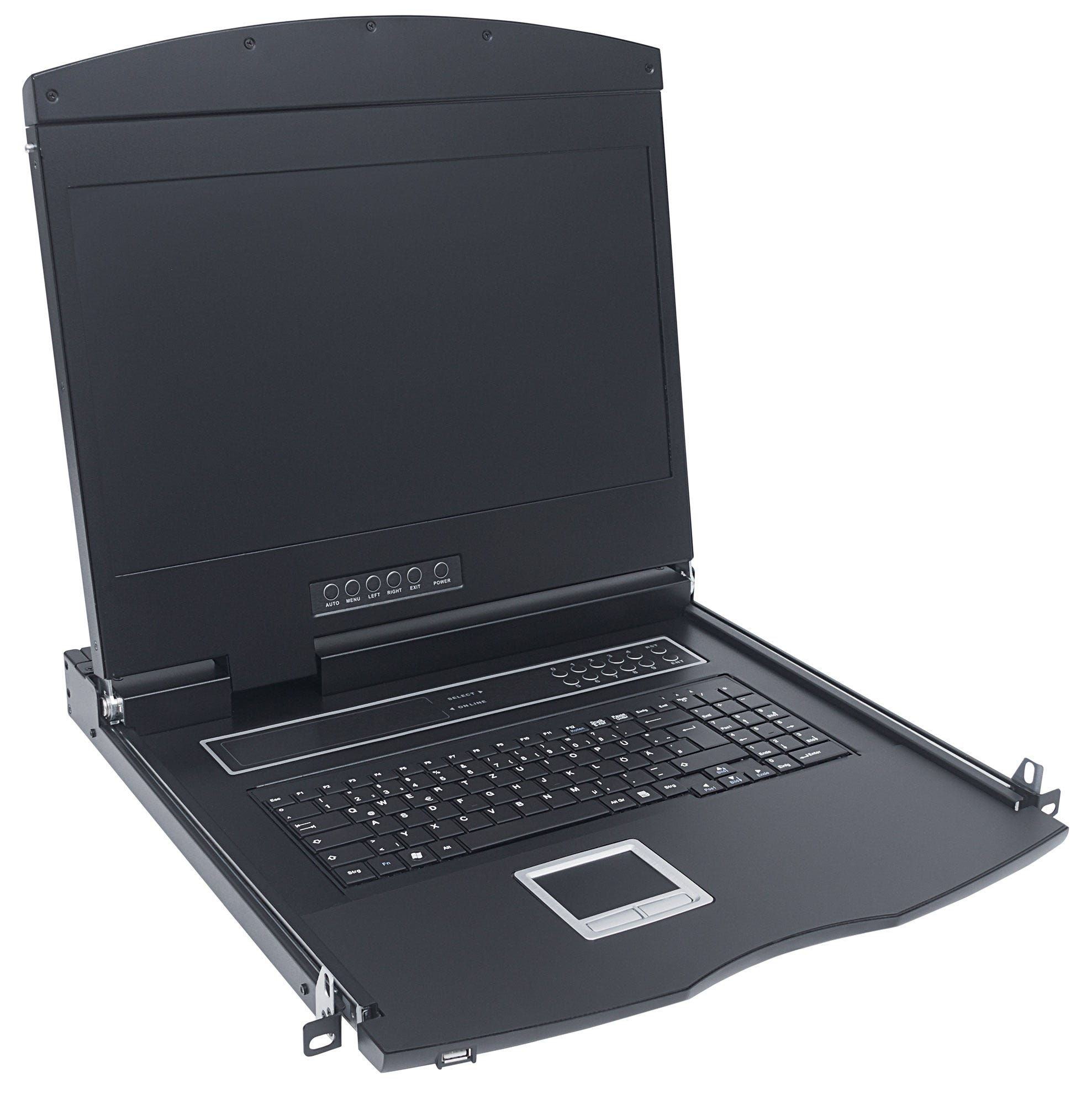

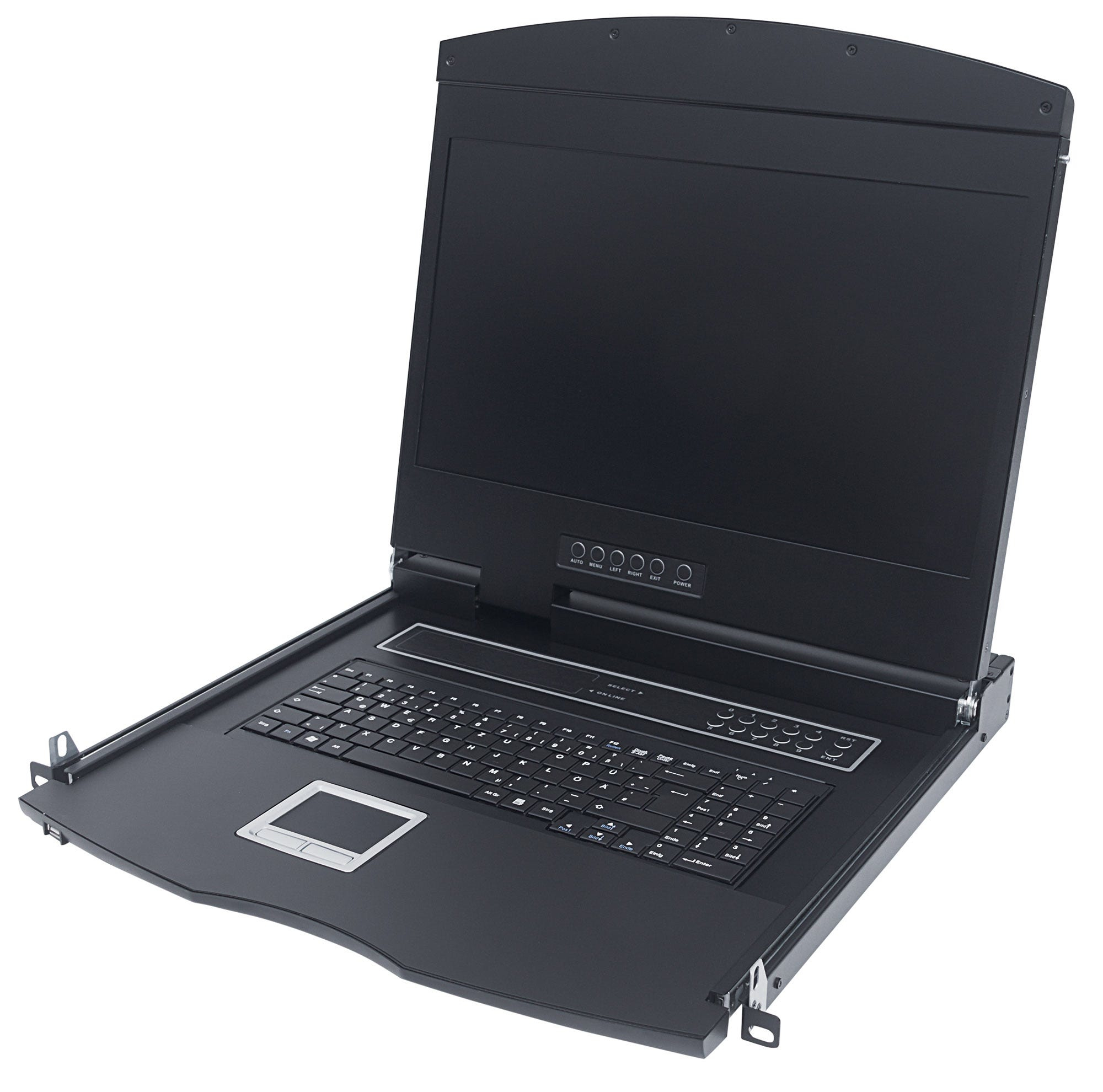

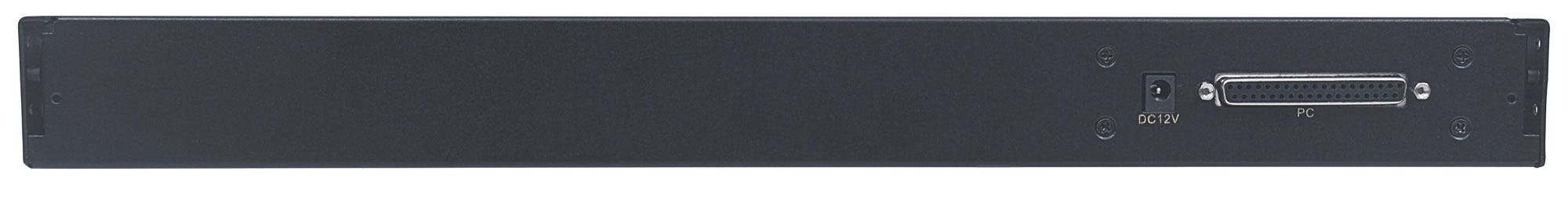

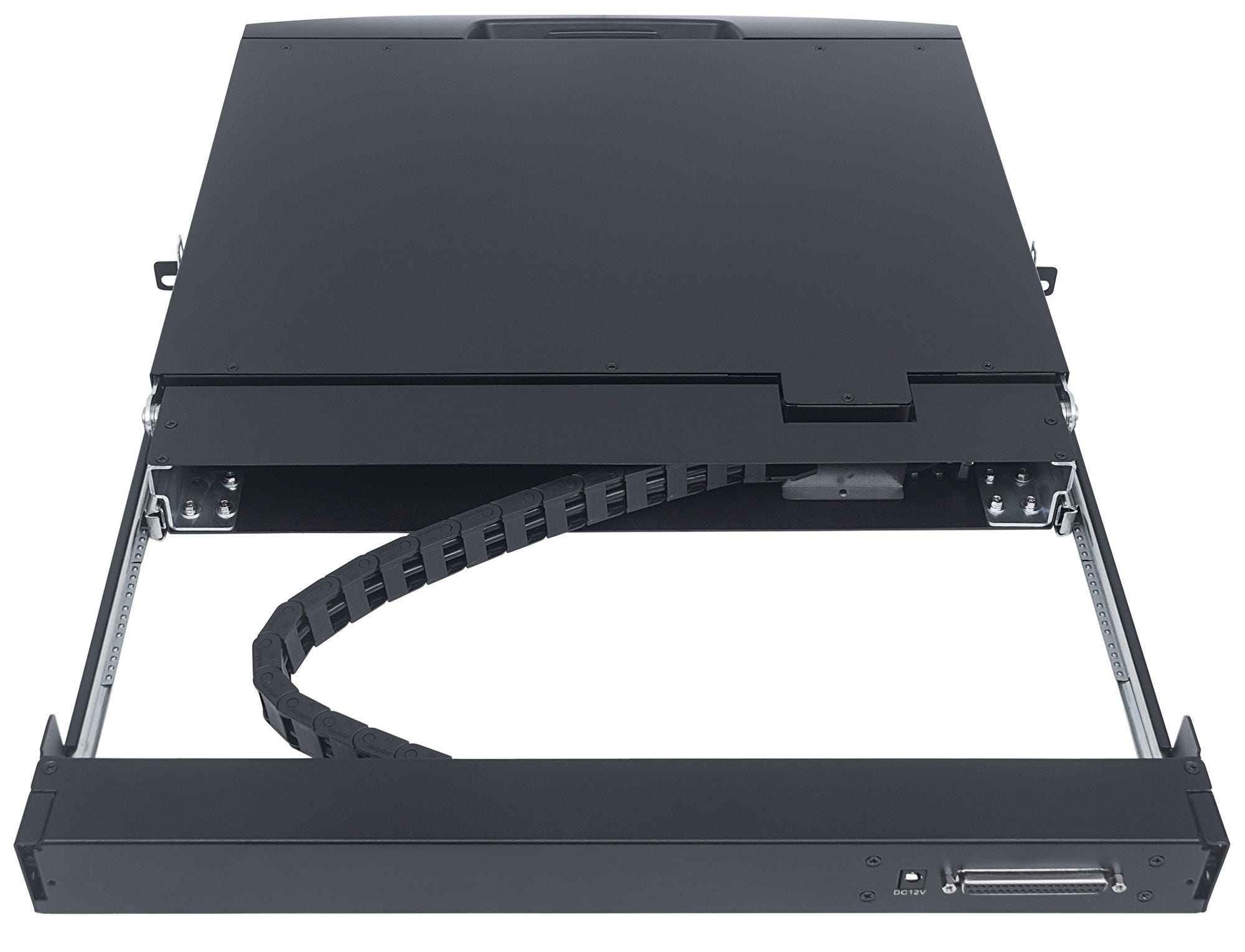

Rackmount 19" LCD DVI Console, 19-Inch LCD Panel, 1U, DVI, Modular system, German Layout (Euro 2-pin plug)
Model 508117EAN 766623508117
35 specifications
- Display48.3 cm (19")
- Resolution1920 x 1080 pixels
- Weight8.5 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB, PS/2
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1920 x 1080 pixels
- Weight
- 8.5 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB, PS/2
- Brand
- Intellinet
- Category
- Rack Console
- Model
- 508117
- Part number
- 508117
- EAN / UPC
- 766623508117
- Also known as
- Intellinet Rackmount 19" LCD DVI Console, 19-Inch LCD Panel, 1U, DVI, Modular system, German Layout (Euro 2-pin plug)
Specifications
35 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1920 x 1080 pixels |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.264 x 0.264 mm |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Compliance certificates | RoHS |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Rack mounting | Yes |
| Size (imperial) | 48.3 cm (19") |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
| Keyboard language | German |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC adapter input voltage | 100 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC Class B, CE |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 445 mm |
| Height | 44 mm |
| Depth | 407 mm |
| Weight | 8.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Keys quantity | 100 keys |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
