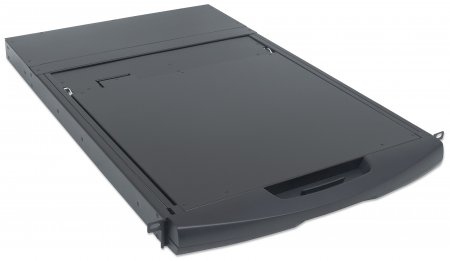

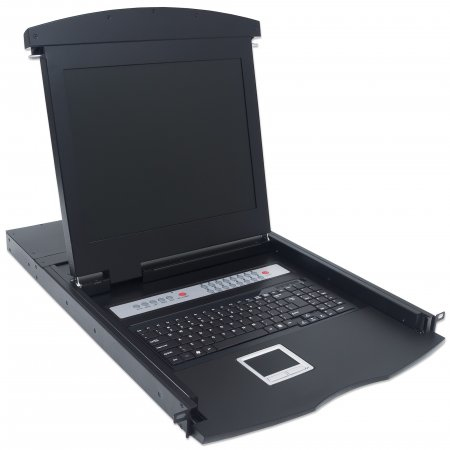

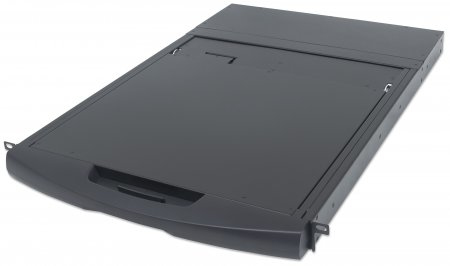

Intellinet 507059 rack console

507059 rack console

43.2 cm (17") Black 1U

Model 507059EAN 766623507059

39 specifications

Display43.2 cm (17")
Weight24.3 kg
ColourBlack
Rack capacity1U
Keyboard port typeUSB, PS/2
Built-in touchpadYes

See all specifications

Overview

Display: 43.2 cm (17")
Weight: 24.3 kg
Colour: Black
Rack capacity: 1U
Keyboard port type: USB, PS/2
Built-in touchpad: Yes

Brand: Intellinet
Category: Rack Console
Model: 507059
Part number: 507059
EAN / UPC: 766623507059
Also known as: Intellinet 507059 rack console 43.2 cm (17") Black 1U

Specifications

39 specifications in 10 groups

Display

Specification	Value
Display diagonal	43.2 cm (17")
Display type	LCD
On Screen Display (OSD)	Yes
Pixel pitch	0.264 x 0.264 mm
Viewable size, horizontal	33.8 cm
Viewable size, vertical	27 cm

Technical details

Specification	Value
Rack capacity	1U
Built-in KVM switch	Yes
Compliance certificates	RoHS
Console port	VGA/USB/PS2
KVM switch ports quantity	16
Keys operating life	1 million characters
LED indicators	Yes
Mean time between failures (MTBF)	60000 h
Plug and Play	Yes
Product colour	Black
Size (imperial)	48.3 cm (19")

Ports & interfaces

Specification	Value
Keyboard port type	USB, PS/2
Mouse port type	USB, PS/2
Video port type	VGA
DC-in jack	Yes

Keyboard

Specification	Value
Built-in touchpad	Yes
Hot keys	Yes
Keyboard number of keys	99

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Power

Specification	Value
AC adapter input voltage	100 - 240 V
AC adapter output voltage	12 V

Certificates

Specification	Value
Certification	FCC Class B, CE

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	443 mm
Height	42 mm
Depth	685 mm
Weight	24.3 kg

Packaging content

Specification	Value
Cables included	KVM
Mounting brackets included	Yes
Manual	Yes
AC adapter included	Yes
