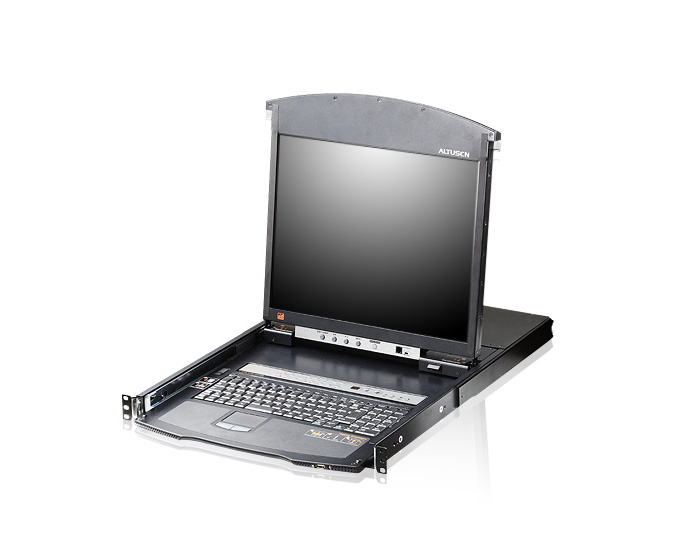

KL1508AN-AXA-EE rack console
48.3 cm (19") 1280 x 1024 pixels Metal Black 1U
Model KL1508AN-AXA-EE
31 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Weight15.4 kg
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity1
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Weight
- 15.4 kg
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 1
- Brand
- ATEN
- Category
- Rack Console
- Model
- KL1508AN-AXA-EE
- Part number
- KL1508AN-AXA-EE
- Also known as
- ATEN KL1508AN-AXA-EE rack console 48.3 cm (19") 1280 x 1024 pixels Metal Black 1U
Specifications
31 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Display | TFT-LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal |
| LED indicators | Yes |
| Product colour | Black |
| Rack mounting | Yes |
| Security algorithms | 256-bit AES |

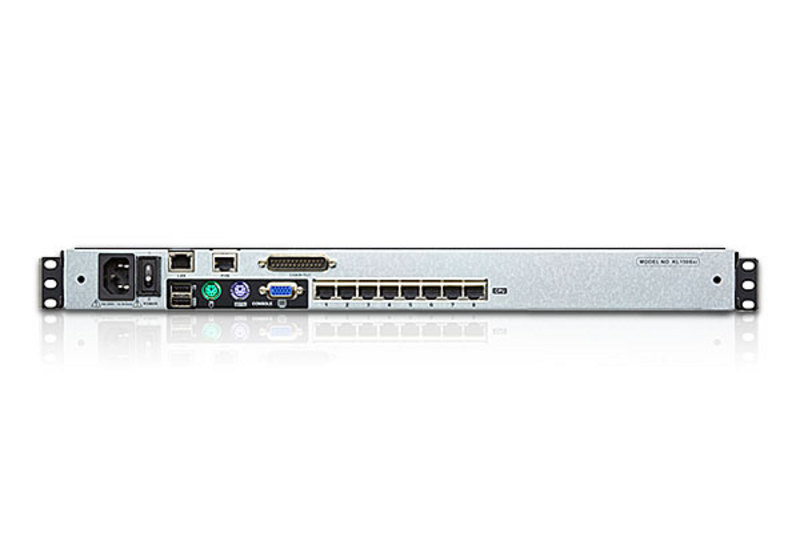

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 Type-A ports quantity | 3 |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100-240 V |
| AC adapter frequency | 50-60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 701.2 mm |
| Height | 480 mm |
| Depth | 44 mm |
| Weight | 15.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
