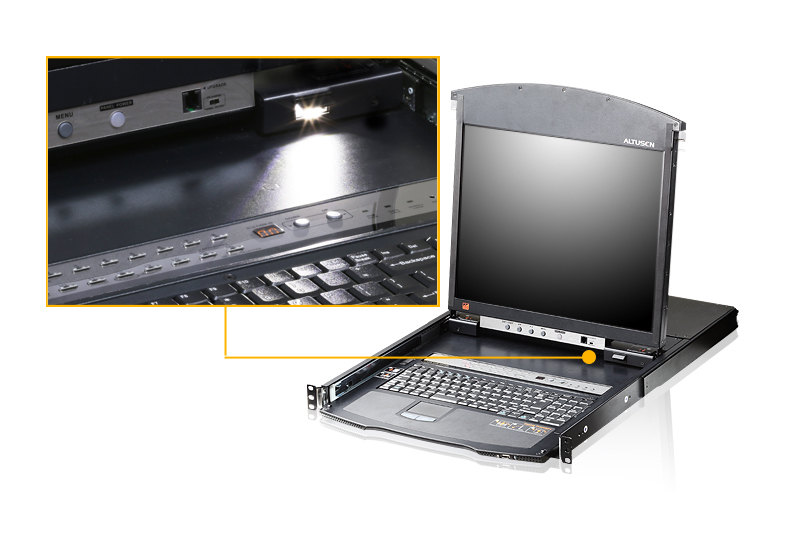

KL1508AIM rack console
ATEN

KL1508AIM rack console

43.2 cm (17") 1280 x 1024 pixels Metal Black 1U

Model KL1508AIMPart no. KL1508AIM-AXA-AUEAN 4710469345258

56 specifications
  • Display43.2 cm (17")
  • Resolution1280 x 1024 pixels
  • Weight15.2 kg
  • ColourBlack
  • Rack capacity1U
  • VGA (D-Sub) ports quantity1
See all specifications

Overview

Display
43.2 cm (17")
Resolution
1280 x 1024 pixels
Weight
15.2 kg
Colour
Black
Rack capacity
1U
VGA (D-Sub) ports quantity
1
Brand
ATEN
Category
Rack Console
Model
KL1508AIM
Part numbers
KL1508AIM-AXA-AU, KL1508AIMAXAXCH, KL1508AIMAXAXFR, KL1508AIMAXAXES, KL1508AIMAXAXDE, KL1508AIMAXAXNR +9 more
EAN / UPC
4710469345258, 4710469344848, 4710469345982, 4710469343469 +2 more
Also known as
ATEN KL1508AIM rack console 43.2 cm (17") 1280 x 1024 pixels Metal Black 1U

Specifications

56 specifications in 9 groups

Display

Display diagonal43.2 cm (17")
Display resolution1280 x 1024 pixels
DisplayLCD
Contrast ratio (typical)1000:1
Display brightness250 cd/m²
Display typeTFT
On Screen Display (OSD)Yes
Pixel pitch0.264 x 0.264 mm
Response time5 ms
Viewing angle, horizontal170°
Viewing angle, vertical160°

Technical details

Rack capacity1U
MaterialMetal
Auto scan delay (max)255 s
Auto scan delay (min)1 s
Built-in KVM switchYes
Cabling technology10/100/1000
Compliance certificatesRoHS
Daisy chainYes
Display connectionYes
KVM switch ports quantity8
LED indicatorsYes
Maximum resolution1920 x 1200 pixels
Number of computers controlled128
On/off switchYes
Operating relative humidity (H-H)0 - 80%
Product colourBlack
Push buttonYes
Rack mountingYes

Ports & interfaces

VGA (D-Sub) ports quantity1
Keyboard port typeUSB, PS/2
Mouse port typeUSB, PS/2
RJ-45 ports quantity10
Video port typeVGA
USB 2.0 Type-A ports quantity3
I/O ports1x DB-25 1x RJ-11

Keyboard

Built-in touchpadYes
Hot keysYes
Keyboard languageGerman
Keyboard layoutQWERTZ

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes

Power

AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz
Input current1 A

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width701.2 mm
Height44 mm
Depth480 mm
Weight15.2 kg

Packaging content

Cables includedAC, KVM
Quick installation guideYes
ManualYes
Rack mount kitYes
