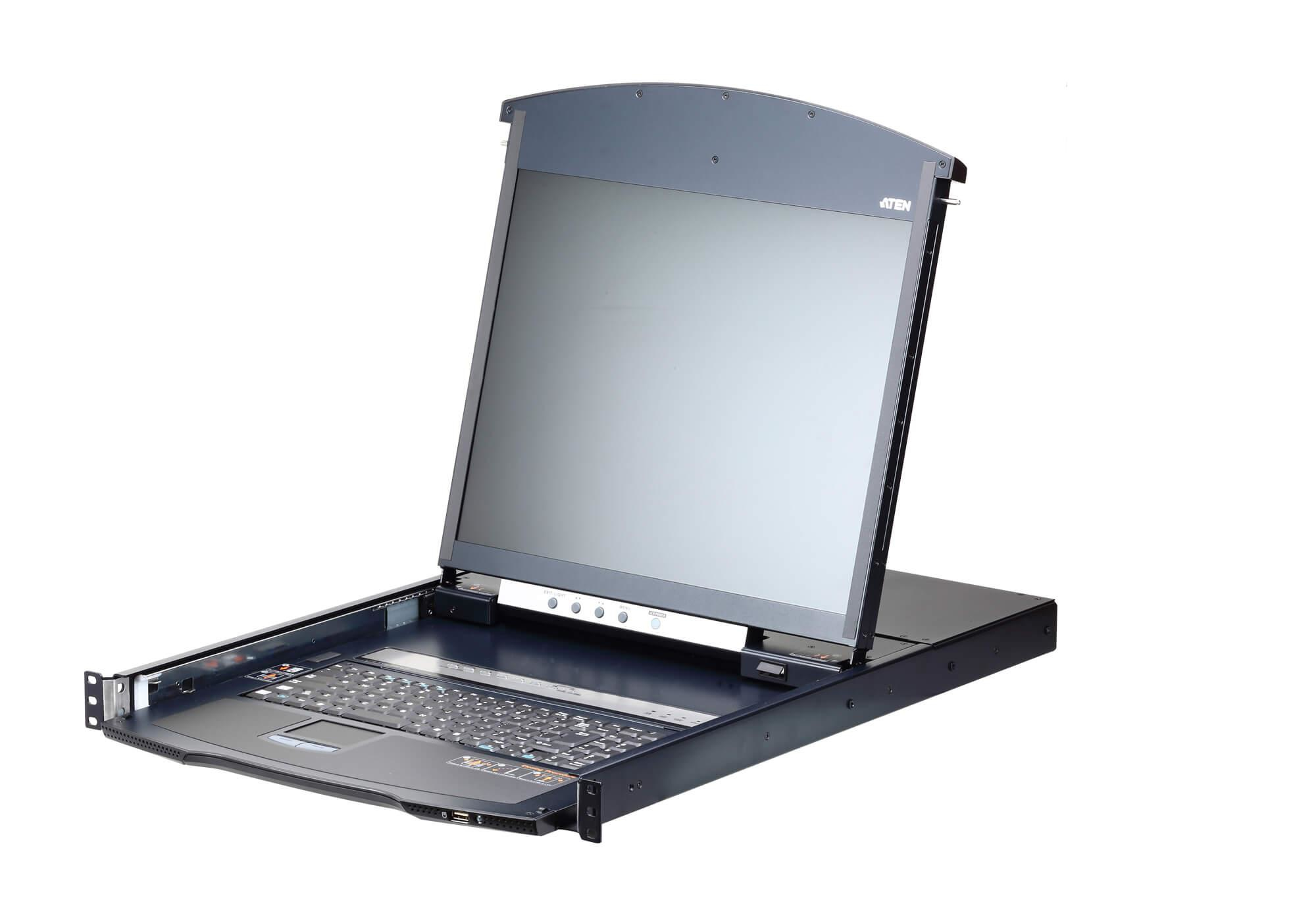

ATEN KL1116VN rack console
ATEN

KL1116VN rack console

48.3 cm (19") 1280 x 1024 pixels Metal Black 1U

Model KL1116VNPart no. KL1116VNAXAXGDEEAN 5711783474999

55 specifications
  • Display48.3 cm (19")
  • Resolution1280 x 1024 pixels
  • Weight15.3 kg
  • ColourBlack
  • Rack capacity1U
  • VGA (D-Sub) ports quantity1
See all specifications

Overview

Display
48.3 cm (19")
Resolution
1280 x 1024 pixels
Weight
15.3 kg
Colour
Black
Rack capacity
1U
VGA (D-Sub) ports quantity
1
Brand
ATEN
Category
Rack Console
Model
KL1116VN
Part numbers
KL1116VNAXAXGDE, KL1116VNAXAXGES, KL1116VNAXAXGFR, KL1116VNAXAXGIT, KL1116VNAXAXGNR, KL1116VNAXAXGRU +10 more
EAN / UPC
5711783474999, 4710469345241, 4710469345975, 5711783475019 +4 more
Also known as
ATEN KL1116VN rack console 48.3 cm (19") 1280 x 1024 pixels Metal Black 1U

Specifications

55 specifications in 9 groups

Display

Display diagonal48.3 cm (19")
Display resolution1280 x 1024 pixels
DisplayLCD
Contrast ratio (typical)1000:1
Display brightness250 cd/m²
Display typeTFT
On Screen Display (OSD)Yes
Pixel pitch0.294 x 0.294 mm
Response time5 ms
Viewing angle, horizontal170°
Viewing angle, vertical160°
Supported resolutions1920 x 1200@60Hz

Technical details

Rack capacity1U
MaterialMetal
Auto scan delay (max)255 s
Auto scan delay (min)1 s
Built-in KVM switchYes
Compliance certificatesRoHS
KVM switch ports quantity16
LED indicatorsYes
Maximum resolution1920 x 1200 pixels
Number of computers controlled256
On/off switchYes
Operating relative humidity (H-H)0 - 80%
Product colourBlack
Push buttonYes
Rack mountingYes

Ports & interfaces

VGA (D-Sub) ports quantity1
DVI connector typeDVI-D
DVI input ports1
Keyboard port typeUSB
Mouse port typeUSB
RJ-45 ports quantity20
USB 2.0 Type-A ports quantity3

Keyboard

Built-in touchpadYes
Hot keysYes
Keyboard languageUK English
Keyboard layoutQWERTY

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes

Power

AC adapter input voltage100 - 240 V
AC adapter frequency50/60 Hz
Input current1 A
AC (power) inYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width701.2 mm
Height44 mm
Depth480 mm
Weight15.3 kg

Packaging content

Cables includedAC, KVM
Quick installation guideYes
ManualYes
Rack mount kitYes
