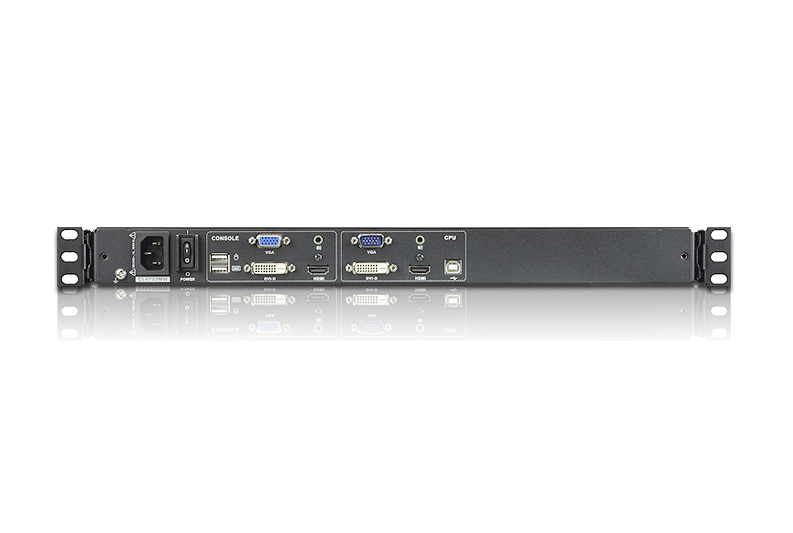

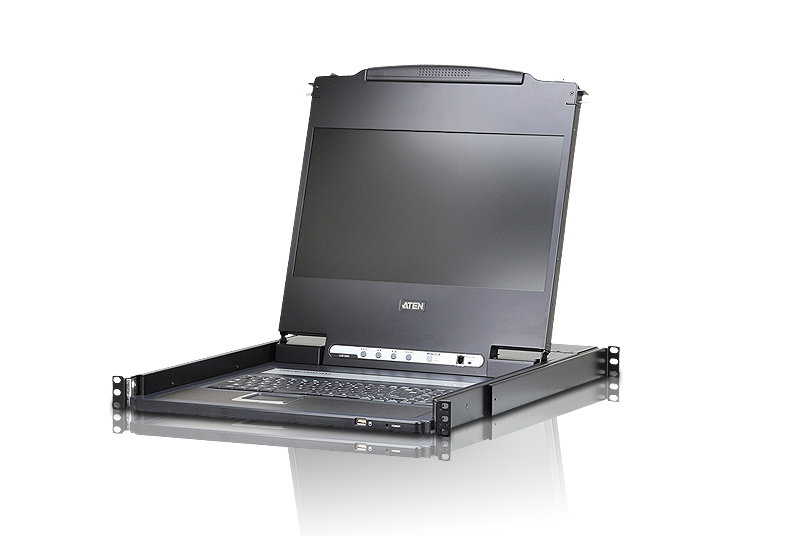

CL6700MW-ATA-EG rack console
43.9 cm (17.3") Black 1U
Model CL6700MW-ATA-EGEAN 4710469345210
32 specifications
- Display43.9 cm (17.3")
- Weight11.6 kg
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity2
- Keyboard languageUK English
Overview
- Display
- 43.9 cm (17.3")
- Weight
- 11.6 kg
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 2
- Keyboard language
- UK English
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL6700MW-ATA-EG
- Part number
- CL6700MW-ATA-EG
- EAN / UPC
- 4710469345210
- Also known as
- ATEN CL6700MW-ATA-EG rack console 43.9 cm (17.3") Black 1U
Specifications
32 specifications in 10 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 43.9 cm (17.3") |
| Display | LCD |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Number of computers controlled | 1 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D/HDMI/VGA |
| USB 2.0 Type-B ports quantity | 1 |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 589.2 mm |
| Height | 44 mm |
| Depth | 480 mm |
| Weight | 11.6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 14.7 kg |
| Package width | 668 mm |
| Package depth | 718 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
