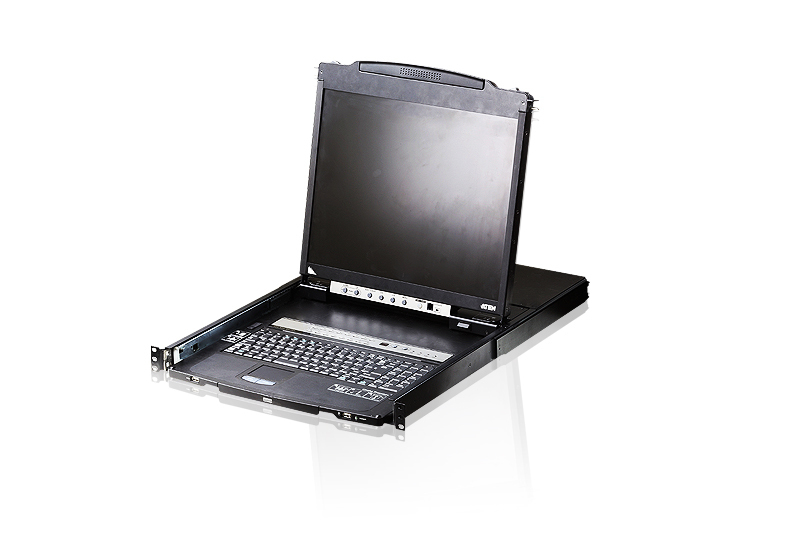

CL5816N-ATA-EG rack console
48.3 cm (19") Black 1U
Model CL5816N-ATA-EGEAN 4710469343612
33 specifications
- Display48.3 cm (19")
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity17
- Hot keysYes
- Power consumption (typical)27.2 W
Overview
- Display
- 48.3 cm (19")
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 17
- Hot keys
- Yes
- Power consumption (typical)
- 27.2 W
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL5816N-ATA-EG
- Part number
- CL5816N-ATA-EG
- EAN / UPC
- 4710469343612, 4710469345203
- Also known as
- ATEN CL5816N-ATA-EG rack console 48.3 cm (19") Black 1U
Specifications
33 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display | LCD |
| On Screen Display (OSD) | Yes |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Auto scan delay (max) | 255 s |
| Auto scan delay (min) | 1 s |
| Daisy chain | Yes |
| Hot-Plug support | Yes |
| LED indicators | Yes |
| Maximum resolution | 1280 x 1024 pixels |
| Number of computers controlled | 512 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 17 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
| Keyboard language | UK English |
| Keyboard layout | QWERTY |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 27.2 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Height | 44 mm |
| Depth | 680.4 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| Rack mount kit | Yes |
