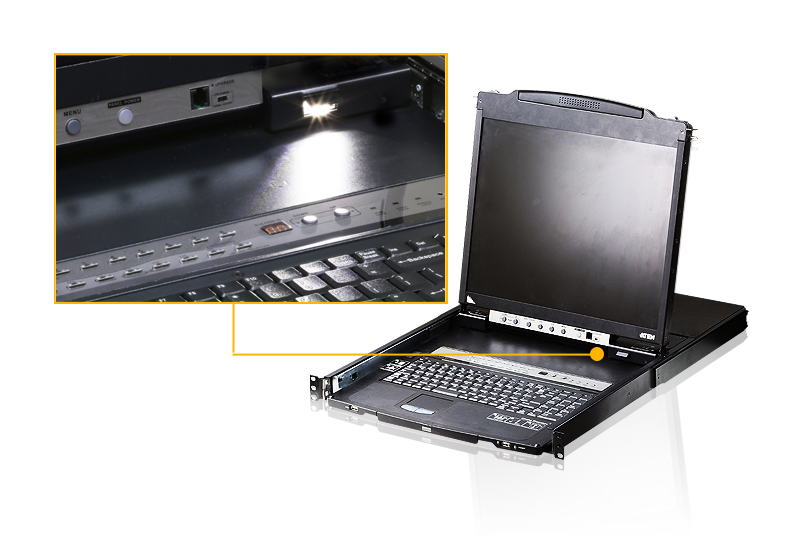

ATEN CL5816N rack console

ATEN CL5816N rack console

48.3 cm (19") Black 1U

Model CL5816NPart no. CL5816NATAXGNREAN 5711783160847

25 specifications

Display48.3 cm (19")
Weight14.8 kg
ColourBlack
Rack capacity1U
Mouse port typeUSB
Keyboard languageFrench

See all specifications

Overview

Display: 48.3 cm (19")
Weight: 14.8 kg
Colour: Black
Rack capacity: 1U
Mouse port type: USB
Keyboard language: French

Brand: ATEN
Category: Rack Console
Model: CL5816N
Part numbers: CL5816NATAXGNR, CL5816NATAXGRU, CL5816NATAXGUK, CL5816NATAXGUS, CL5816N-ATA-DNG, CL5816N-ATA-FG +9 more
EAN / UPC: 5711783160847, 4710469344817, 5711783160861, 4710469345937 +7 more
Also known as: ATEN CL5816N rack console 48.3 cm (19") Black 1U

Specifications

25 specifications in 9 groups

Display

Specification	Value
Display diagonal	48.3 cm (19")
Display	LCD
On Screen Display (OSD)	Yes

Technical details

Specification	Value
Rack capacity	1U
LED indicators	Yes
Maximum resolution	1280 x 1024 pixels
Number of computers controlled	16
Operating relative humidity (H-H)	0 - 80%
Product colour	Black
Rack mounting	Yes

Ports & interfaces

Specification	Value
Mouse port type	USB

Keyboard

Specification	Value
Keyboard language	French
Keyboard layout	AZERTY

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes

Power

Specification	Value
Power consumption (typical)	26.8 W
Input current	1 A

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	680.4 mm
Height	44 mm
Depth	480 mm
Weight	14.8 kg

Packaging content

Specification	Value
Manual	Yes
