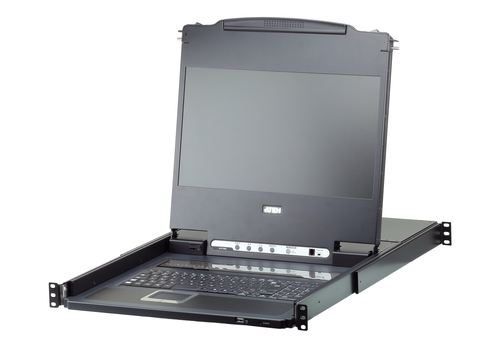

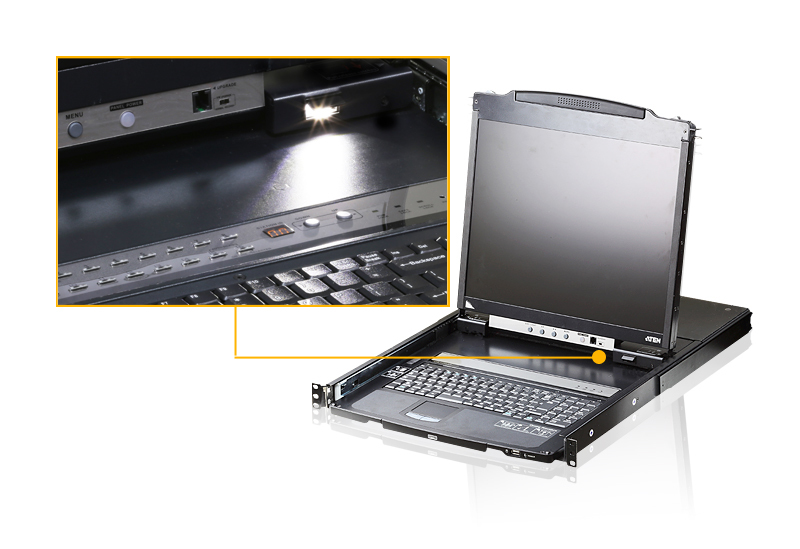

CL5800 rack console
48.3 cm (19") 1280 x 1024 pixels Metal Black 1U
Model CL5800
45 specifications
- Display48.3 cm (19")
- Resolution1280 x 1024 pixels
- Weight14.3 kg
- ColourBlack
- Rack capacity1U
- VGA (D-Sub) ports quantity2
Overview
- Display
- 48.3 cm (19")
- Resolution
- 1280 x 1024 pixels
- Weight
- 14.3 kg
- Colour
- Black
- Rack capacity
- 1U
- VGA (D-Sub) ports quantity
- 2
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL5800
- Part number
- CL5800
- Also known as
- ATEN CL5800 rack console 48.3 cm (19") 1280 x 1024 pixels Metal Black 1U
Specifications
45 specifications in 8 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
| Display resolution | 1280 x 1024 pixels |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Pixel pitch | 0.294 x 0.294 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal |
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Console port | VGA |
| Hot-Plug support | Yes |
| KVM switch ports quantity | 1 |
| LED indicators | Yes |
| Number of computers controlled | 19 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |

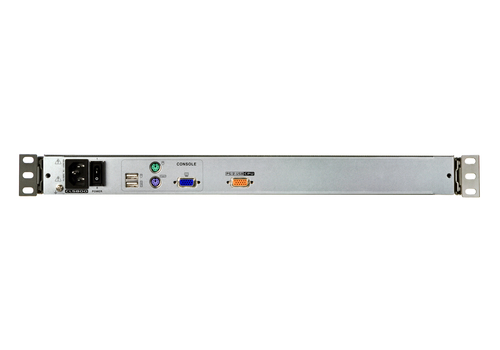

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 2 |
| I/O ports | 1 x RJ-11 |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 22.9 W |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480 mm |
| Height | 44 mm |
| Depth | 680.4 mm |
| Weight | 14.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Manual | Yes |
| Rack mount kit | Yes |
