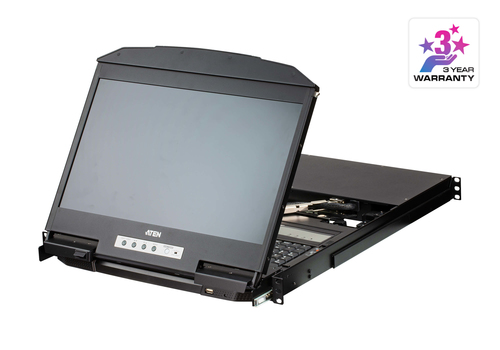

4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch
Model CL3884NW-ATA-XGPart no. CL3884NW-ATA-AGEAN 4710469345456
33 specifications
- Display47 cm (18.5")
- Weight11.8 kg
- ColourBlack
- LED indicatorsYes
- Keyboard port typeUSB
- Keyboard languageUS English
Overview
- Display
- 47 cm (18.5")
- Weight
- 11.8 kg
- Colour
- Black
- LED indicators
- Yes
- Keyboard port type
- USB
- Keyboard language
- US English
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL3884NW-ATA-XG
- Part number
- CL3884NW-ATA-AG
- EAN / UPC
- 4710469345456
- Also known as
- ATEN 4-Port USB HDMI Multi-View Dual Rail WideScreen LCD KVM Switch
Specifications
33 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display | LCD |
Technical details
| Specification | Value |
|---|---|
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 16 |
| Operating relative humidity (H-H) | 0 - 85% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| USB 2.0 Type-B ports quantity | 4 |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | US English |
| Keyboard layout | QWERTY |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 631 mm |
| Height | 42.8 mm |
| Depth | 480.6 mm |
| Weight | 11.8 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 14.6 kg |
| Package width | 668 mm |
| Package depth | 718 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case net weight | 11.8 kg |
| Master (outer) case width | 668 mm |
| Master (outer) case length | 718 mm |
| Master (outer) case height | 135 mm |
| Master (outer) case gross weight | 14.6 kg |
| Products per master (outer) case | 1 pc(s) |
