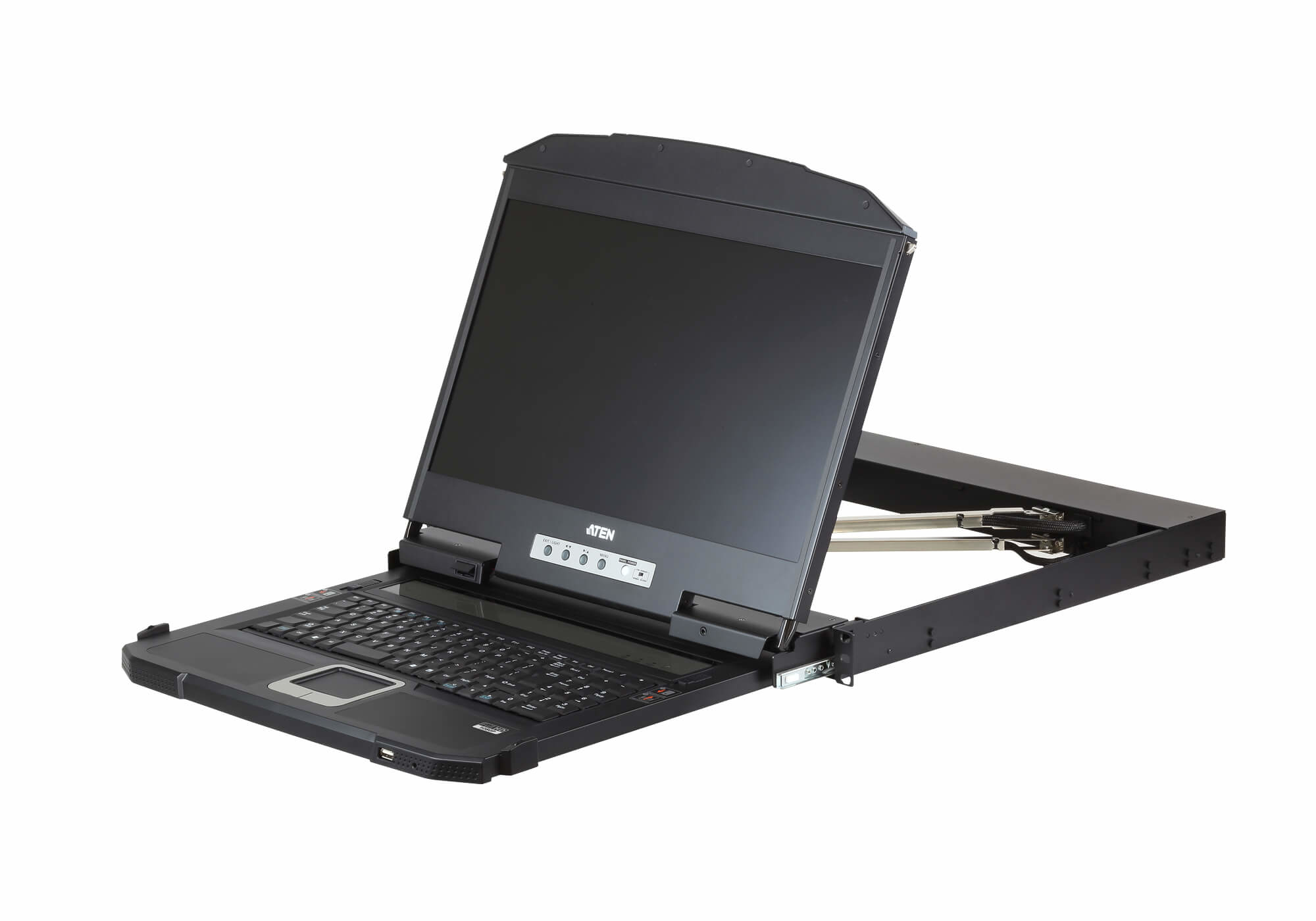

CL3800NW-ATA-GG rack console
47 cm (18.5") Black 1U
Model CL3800NW-ATA-GGEAN 4710469344442
22 specifications
- Display47 cm (18.5")
- Weight9.61 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB
- Keyboard languageGerman
Overview
- Display
- 47 cm (18.5")
- Weight
- 9.61 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB
- Keyboard language
- German
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL3800NW-ATA-GG
- Part number
- CL3800NW-ATA-GG
- EAN / UPC
- 4710469344442
- Also known as
- ATEN CL3800NW-ATA-GG rack console 47 cm (18.5") Black 1U
Specifications
22 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display | LCD |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 1 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
Keyboard
| Specification | Value |
|---|---|
| Keyboard language | German |
| Keyboard layout | QWERTZ |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 26.8 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 514.2 mm |
| Height | 42.8 mm |
| Depth | 480.6 mm |
| Weight | 9.61 kg |
