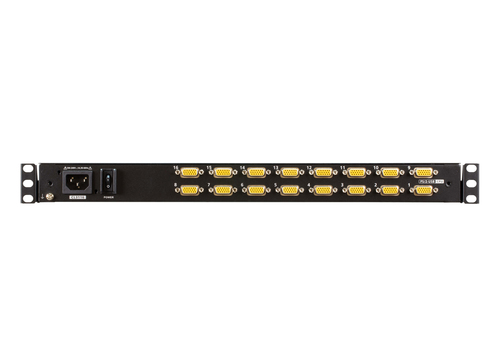

CL3116 rack console
47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Model CL3116Part no. CL3116NX-ATA-AGEAN 4719264648984
34 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- Weight10.6 kg
- ColourBlack
- Rack capacity1U
- 3.5 mm (1/8-inch) inYes
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Weight
- 10.6 kg
- Colour
- Black
- Rack capacity
- 1U
- 3.5 mm (1/8-inch) in
- Yes
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL3116
- Part numbers
- CL3116NX-ATA-AG, CL3116NX-ATA-AX, CL3116NX-NORDIC, CL3116NX-US
- EAN / UPC
- 4719264648984, 5704174076469, 4710469345425, 5704174076537
- Also known as
- ATEN CL3116 rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Specifications
34 specifications in 7 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Display | TFT-LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LED |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.3 x 0.3 mm |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Built-in KVM switch | Yes |
| Hot-Plug support | Yes |
| KVM switch ports quantity | 16 |
| LED indicators | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| 3.5 mm (1/8-inch) in | Yes |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 / 60 Hz |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 480.6 mm |
| Height | 631.7 mm |
| Depth | 42.8 mm |
| Weight | 10.6 kg |
