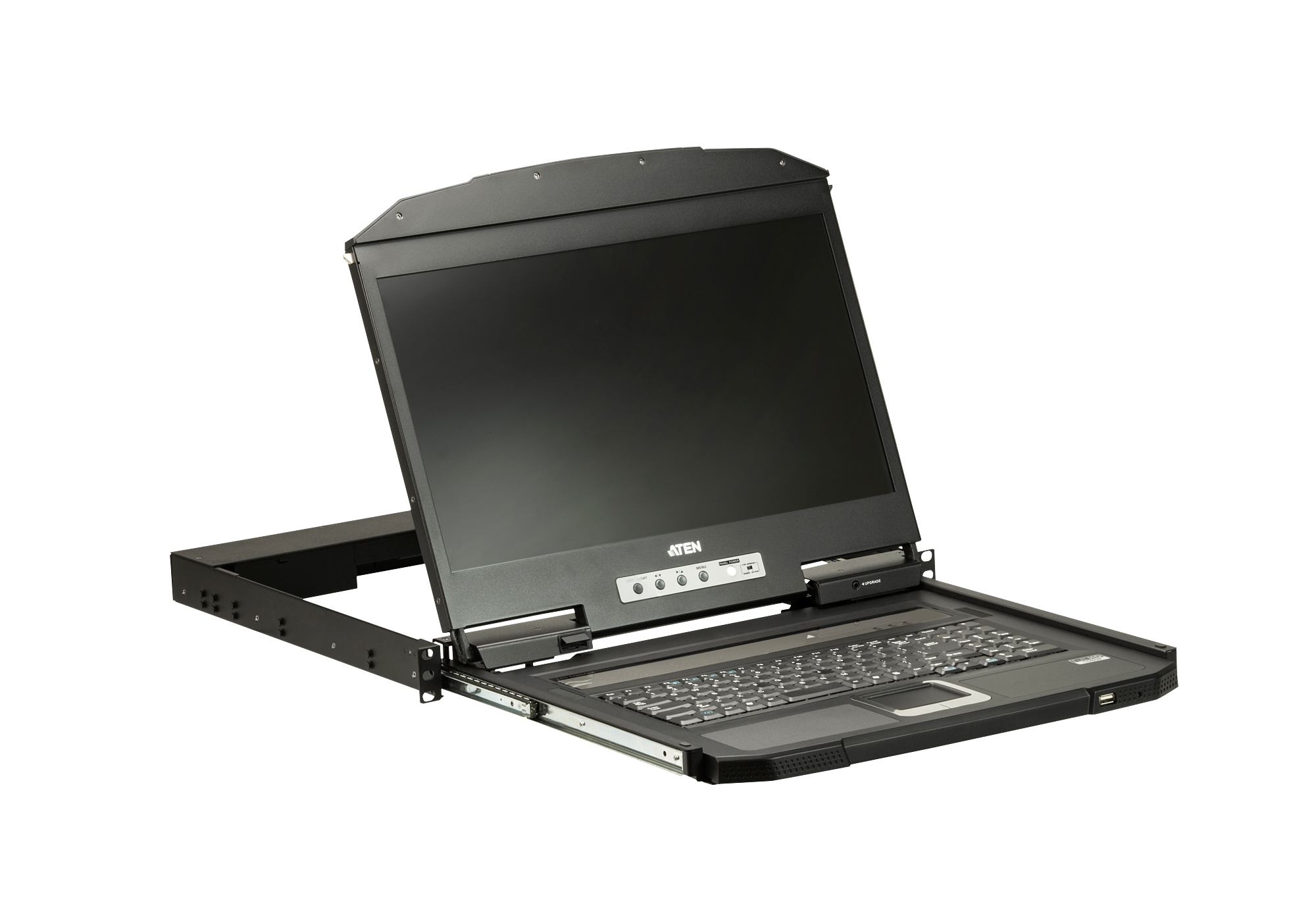

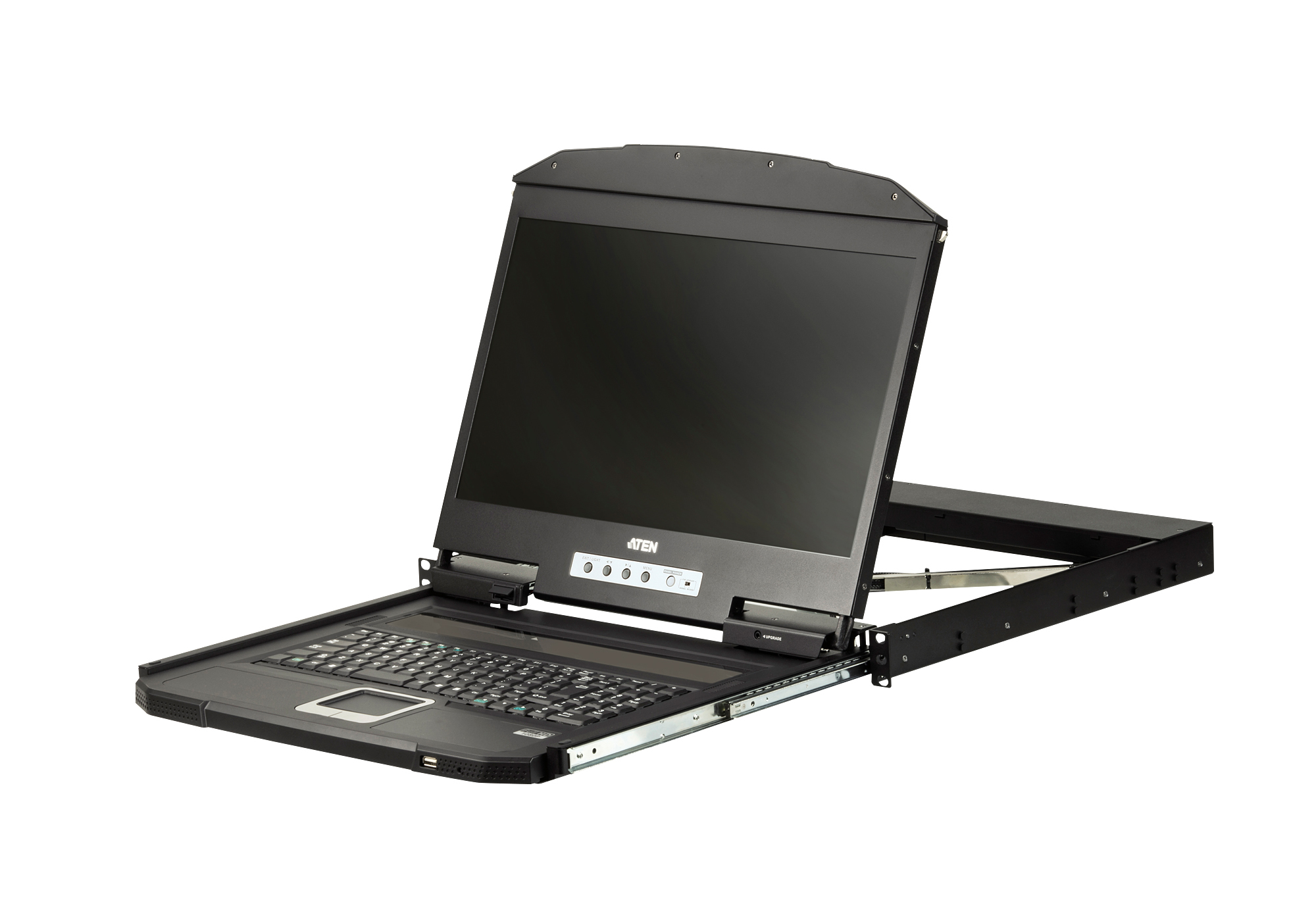

CL3100NX-ATA-EE rack console
47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Model CL3100NX-ATA-EEEAN 5715327001085
41 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- Weight10.2 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Weight
- 10.2 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL3100NX-ATA-EE
- Part number
- CL3100NX-ATA-EE
- EAN / UPC
- 5715327001085
- Also known as
- ATEN CL3100NX-ATA-EE rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Specifications
41 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Display | TFT-LCD |
| Aspect ratio | 16:9 |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| On Screen Display (OSD) | Yes |
| Pixel pitch | 0.3 x 0.3 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 1 |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 3 |
Keyboard
| Specification | Value |
|---|---|
| Hot keys | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 14.1 W |
| Input current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 477 mm |
| Height | 42.8 mm |
| Depth | 480.6 mm |
| Weight | 10.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 12.1 kg |
| Package width | 612 mm |
| Package depth | 658 mm |
| Package height | 135 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Manual | Yes |
| AC adapter included | Yes |
