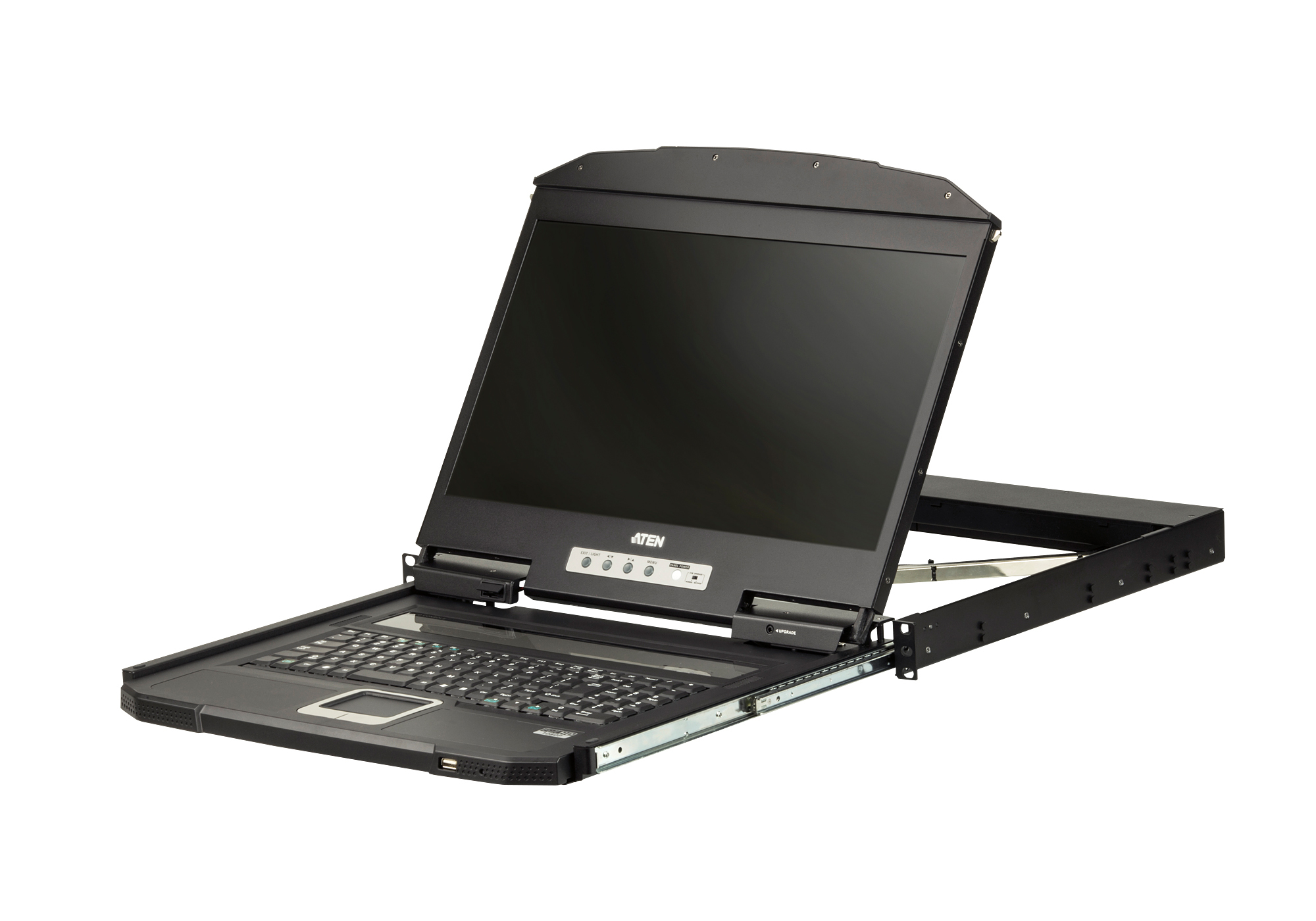

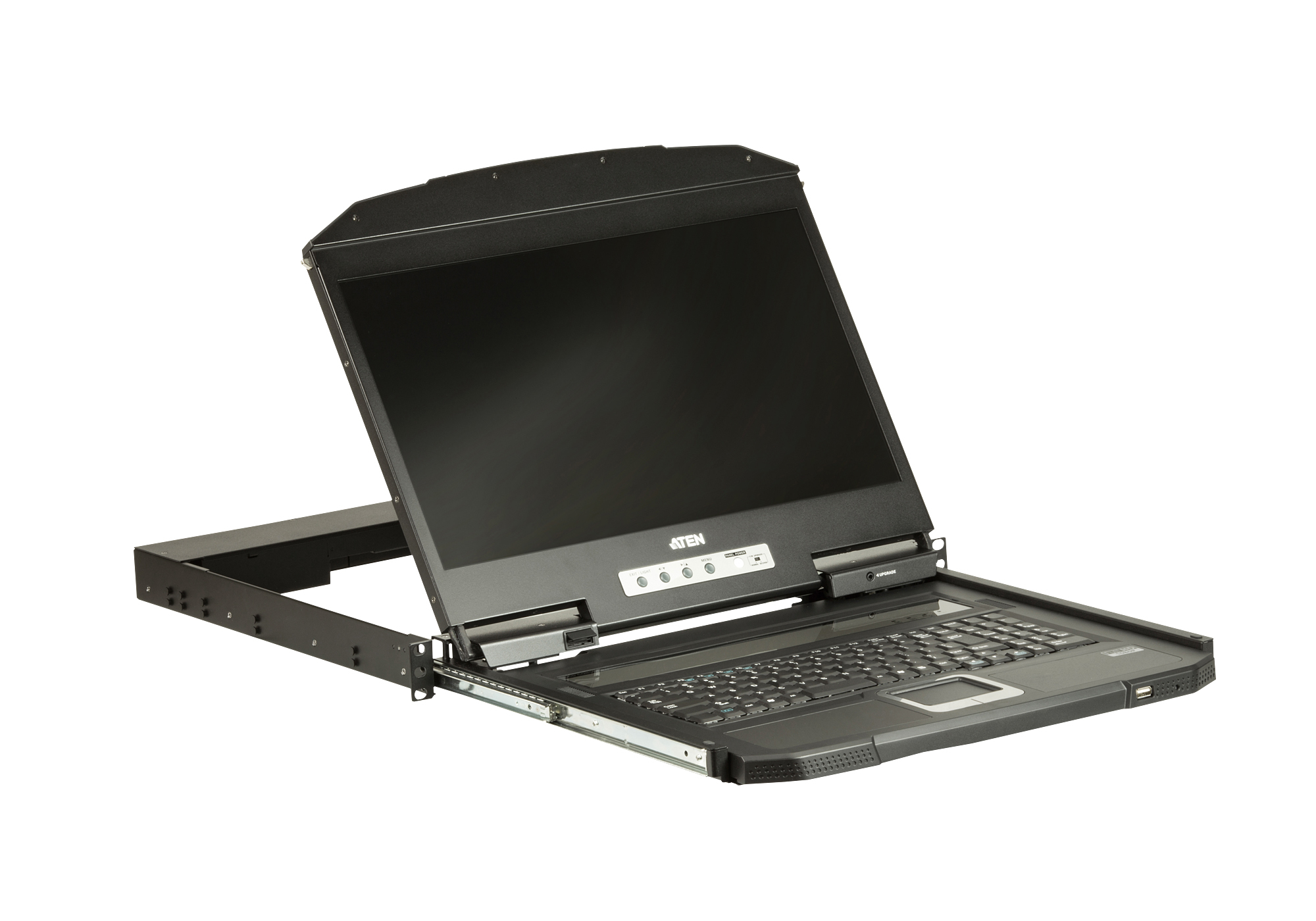

CL3100NX-ATA-AU rack console
47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Model CL3100NX-ATA-AU
41 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- Weight9.07 kg
- ColourBlack
- Rack capacity1U
- Keyboard port typeUSB
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Weight
- 9.07 kg
- Colour
- Black
- Rack capacity
- 1U
- Keyboard port type
- USB
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL3100NX-ATA-AU
- Part number
- CL3100NX-ATA-AU
- Also known as
- ATEN CL3100NX-ATA-AU rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Specifications
41 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 250 cd/m² |
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Pixel pitch | 0.3 x 0.3 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| Hot-Plug support | Yes |
| Key lock | Yes |
| LED indicators | Yes |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |

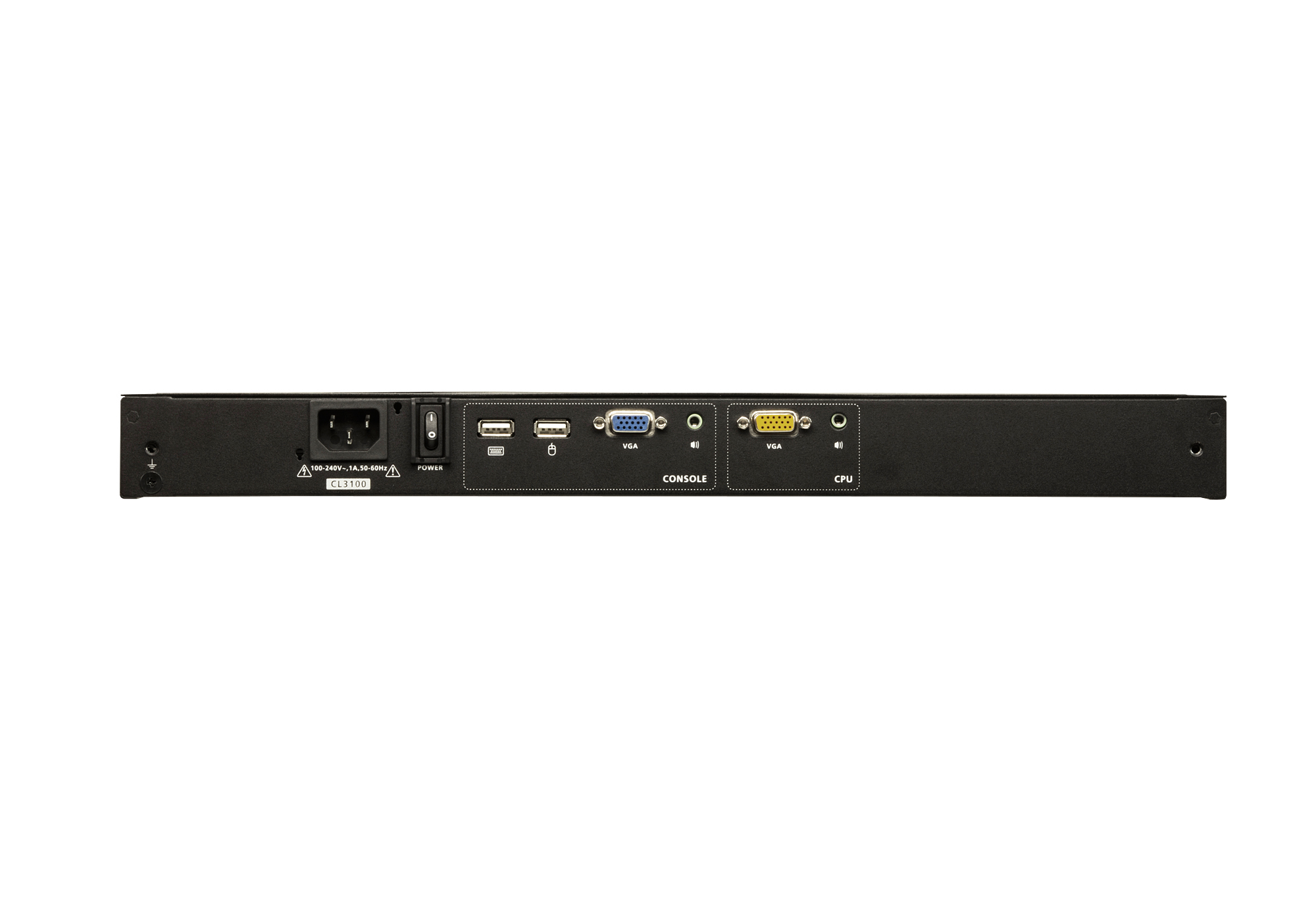

Ports & interfaces
| Specification | Value |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard number of keys | 105 |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
Certificates
| Specification | Value |
|---|---|
| Certification | UL 60950-1, CAN/CSA |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 477 mm |
| Height | 480.6 mm |
| Depth | 42.8 mm |
| Weight | 9.07 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, Audio (3.5mm), USB, VGA |
| Manual | Yes |
| Rack mount kit | Yes |
