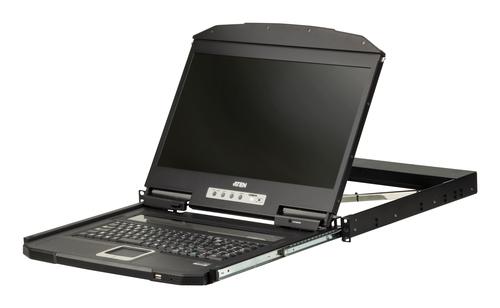

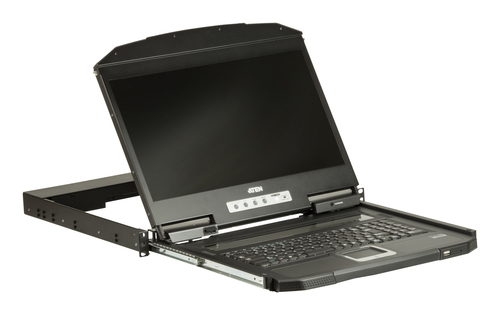

CL3100NX rack console
47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Model CL3100NXPart no. CL3100NXATAXGESEAN 4719264646812
56 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- Weight9.07 kg
- ColourBlack
- Rack capacity1U
- 3.5 mm (1/8-inch) outYes
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Weight
- 9.07 kg
- Colour
- Black
- Rack capacity
- 1U
- 3.5 mm (1/8-inch) out
- Yes
- Brand
- ATEN
- Category
- Rack Console
- Model
- CL3100NX
- Part numbers
- CL3100NXATAXGES, CL3100NXATAXGFR, CL3100NXATAXGIT, CL3100NXATAXGNR, CL3100NXATAXGRU, CL3100NXATAXGUK +13 more
- EAN / UPC
- 4719264646812, 4710469345401, 5706998898623, 4710469344671 +8 more
- Also known as
- ATEN CL3100NX rack console 47 cm (18.5") 1366 x 768 pixels Metal, Plastic Black 1U
Specifications
56 specifications in 9 groups
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Display | LCD |
| Contrast ratio (typical) | 1000:1 |
| Display brightness | 450 cd/m² |
| Display type | TFT |
| Pixel pitch | 0.3 x 0.3 mm |
| Response time | 5 ms |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Supported resolutions | up to 1920 x 1200 @ 60 Hz; 1366 x 768 @ 60 Hz, DDC2B |
Technical details
| Specification | Value |
|---|---|
| Rack capacity | 1U |
| Material | Metal, Plastic |
| Built-in KVM switch | Yes |
| Compliance certificates | RoHS |
| KVM switch ports quantity | 1 |
| LED indicators | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Number of computers controlled | 1 |
| On/off switch | Yes |
| Operating relative humidity (H-H) | 0 - 80% |
| Product colour | Black |
| Push button | Yes |
| Rack mounting | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| 3.5 mm (1/8-inch) out | Yes |
| 3.5 mm (1/8-inch) in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| USB 2.0 Type-A ports quantity | 3 |
| I/O ports | 1x SPHD |
Keyboard
| Specification | Value |
|---|---|
| Built-in touchpad | Yes |
| Hot keys | Yes |
| Keyboard language | Italian |
| Keyboard layout | QWERTY |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Other operating systems supported | SunOS |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Input current | 1 A |
| AC (power) in | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 477 mm |
| Height | 42.8 mm |
| Depth | 480.6 mm |
| Weight | 9.07 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC, KVM |
| Quick installation guide | Yes |
| Manual | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Package type | Box |
